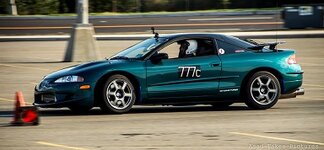

98 TSi awd - Autocross Build

Year:
1998
Model/Trim:
Eagle Talon TSi AWD
  • Ownership Status:
    I own it
    Turbo Type:
    T25
    Transmission Type:
    Manual
    Build Type:
    • Autocross
    Mods-Bolt-on:
    Foam core air filter / Greddy Type S BOV / RNR Racing 3 inch O2 eliminator down-pipe / Apexi GTspec exhaust / Greddy 24V FMIC / Greddy UICP / 1g Tbody / Hallman Pro MBC / Kinugawa adjustable internal wastegate actuator /
    Mods-Engine:
    Kiggly HLA / 3qt Accusump w. Pro EPC valve / Dual port recirculated catch can /
    Mods-EMS & Logging:
    Innovate MTD boost gauge / Ecmlink V3 /
    Mods-Drivetrain:
    Southbend SS clutch with full ceramic disc / Clutch Masters aluminum flywheel / Adam Porto front motor mount insert / Torque Solutions rear motor mount / Prothane side motor mounts / Extremepsi shifter cable bushings & shifter base bushings / aluminum shifter cable trans mount spacers / shortened STOCK shifter with Razo heavy shift knob / Evo 8 rear diff / 4 spider center diff with torrington upgrade / Cusco RS front diff /
    Mods-Handling:
    17x9 +35 Kosei K6r wheels w. 245/40/17 Bridgestone RE71R tires / 18x9.5 +20 Enkei PF01 wheels w. 285/30/18 Bridgestone RE71R tires / DG spec Koni coilovers, 800lb front & 550lb rear hyperco coilover springs / TCE Performance 6 piston 13inch front BBK / Slotted ebay rear rotors / Hawk HP Plus rear brake pads / RM sway bars F & R / Paul Volk tubular front control arms / MOMO steering wheel / Megan Racing adjustable front upper control arms / CompWorks fender braces / RRE upper strut bar / RRE lower tie bar / Prothane Suspension Bushings / ARP extended wheel studs /
    Parts Wishlist:
    An LSD center diff that won't explode. Double or triple adjustable coilover$. Lightweight 18X10.5 wheels. DSMs to get classed out of ASP.
    Background:
    A street car that I can autocross with.
  • Dyno HP:
    184.4 bhp
    Dyno TQ:
    251.0 lb/ft
    Dyno Type:
    DynoJet
    Dyno Sheet Photo Link:
    Dyno Shop Name:
    NJ Bentwheel Motor Club

Share this Item

bdubb4g63 likes this.

Comments

You must be LOGGED IN to post comments! When you are logged in you will see fewer advertisements.
  1. Murdertalon
    So I am liking your setup, did you tune it a bit to achieve that torque figure? I saw the hp number and that's where I might expect a T25 turbo, but that torque number is nice for autoX.
    1. Black95TSIawd
      No tuning other than increasing boost. If the stock turbo could make a bit more hp and tq after 5500rpm, i'd never change it.
      Black95TSIawd, Jul 15, 2017
