Rotary Valve Cylinder Head Prototype

Posted by goldenfab, Nov 16, 2016

Please Support JNZ Tuning
  1. spyderdrifter

    spyderdrifter Supporting Member

    3,091
    232
    Joined Jul 11, 2009
    Colorado Springs, Colorado
    The only thing I can think of is difference in cam duration maybe, but since you don't have conventional cams, I guess there shouldn't be a problem ;)


    Log in/Register to remove ads
    My DSM:
    1997 Mitsubishi Eclipse Spyder GST (sold)

    Street Build

    T28   manual
    1996 Mitsubishi Eclipse GSX (sold)

    16g   manual
    1996 Eagle Talon N/T (sold)

      manual
    Loading...
  2. goldenfab

    goldenfab Probationary Member

    7
    51
    Joined Nov 16, 2016
    Dewey, Arizona
    I got the sensor installed and am getting spark and fuel. I cranked her over. Some spits and sputters but will not start. I think the ignition timing is off. I'll hook up a timing light next to see where it's at.



    So close..

  3. DSM's 4 life

    DSM's 4 life Proven Member

    470
    9
    Joined Nov 13, 2011
    Buffalo, New York
    This is awesome. have you looked into the Cam sensor Made by Kiggly racing?
    http://kigglyracing.com/all.html/
    Also you should contact JafroMobile on youtube for Oil system Brainstorming

    My DSM:
    Loading...
  4. miguelmcv

    miguelmcv Proven Member

    1,970
    28
    Joined May 3, 2009
    Fresno, California
    Are you getting fuel? Make sure is not flooring the sparks, if temperature sensor is bad the ecu will send to much fuel making almost imposible to start (when cold).
    Double check you have spark as well.

    Give a brake to the starter in between so it can cool down otherwise you will be replacing it to soon.

    My DSM:
    Loading...
  5. goldenfab

    goldenfab Probationary Member

    7
    51
    Joined Nov 16, 2016
    Dewey, Arizona
    No I had not heard of that cam sensor. Thanks for sharing. I'll look into it. I'll shoot Jafro a message it sounds like he knows his stuff when it comes to that.

    Thanks for the advice. Yes I need to get the coolant sensor fixed for sure. I need to get a new pigtail ordered as well as the iac working. I have spark just lost about all the compression only ~20 psi due to the seals giving way. I hear you on the started.

    Last edited: Dec 30, 2016
  6. zedicus

    zedicus Proven Member

    340
    50
    Joined Aug 4, 2011
    Garden city, Kansas
    i seen someone mention swapping plug wires, if you went through with the ecu mod and needed to swap plug wires you will want to check injector pulse and make sure the injectors are firing at the right time, per cylinder. they can be off and still run o.k. but for what you are doing i would think you would want to verify they are actually 100% in time.

    My DSM:
    1995 Eagle Talon TSi

    Street Build

    16g   manual
    Loading...
  7. goldenfab

    goldenfab Probationary Member

    7
    51
    Joined Nov 16, 2016
    Dewey, Arizona
    I had not thought of that but good point. I'm sure that is the case. I'll probably hack together a simple signal inverter between the CAS and the ECU for now.

  8. zedicus

    zedicus Proven Member

    340
    50
    Joined Aug 4, 2011
    Garden city, Kansas
    if you are running a 1g CAS just take it off and spin the inner piece over once and then put it back on. this will invert the signal and you can at least check and see if things line up. again you are kind of adding bandaids to bandaids but for now it will let you make sure things are at least happening at the correct time. then you can worry about doing things the 'right way'.

    My DSM:
    1995 Eagle Talon TSi

    Street Build

    16g   manual
    Loading...
  9. goldenfab

    goldenfab Probationary Member

    7
    51
    Joined Nov 16, 2016
    Dewey, Arizona
    @zedicus, thanks for the info.

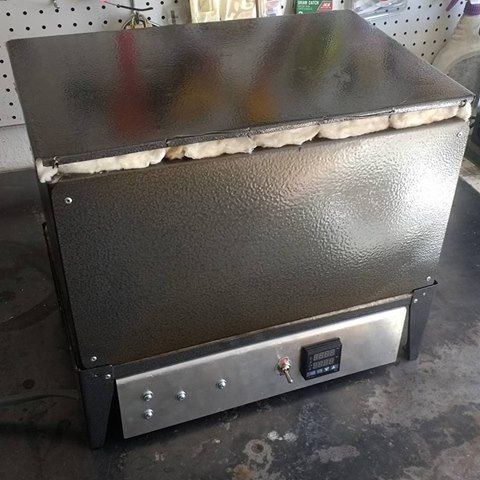

    The project has been stagnant for a while but I made some progress this week. I finally got around to building an electric furnace to do this..

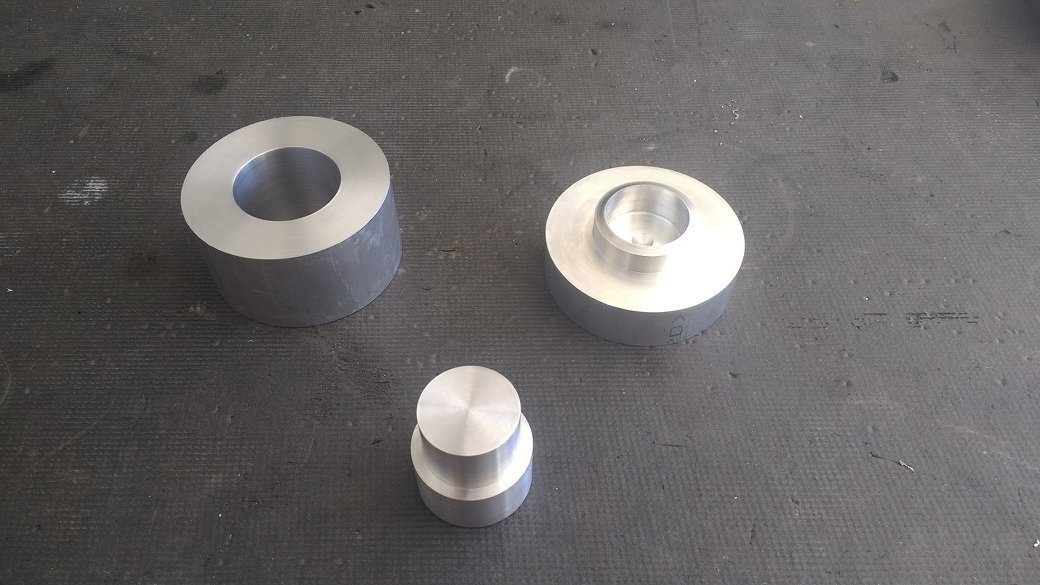

    I located some powdered metal, and made a die to press the powder. Here is the die I cam up with..

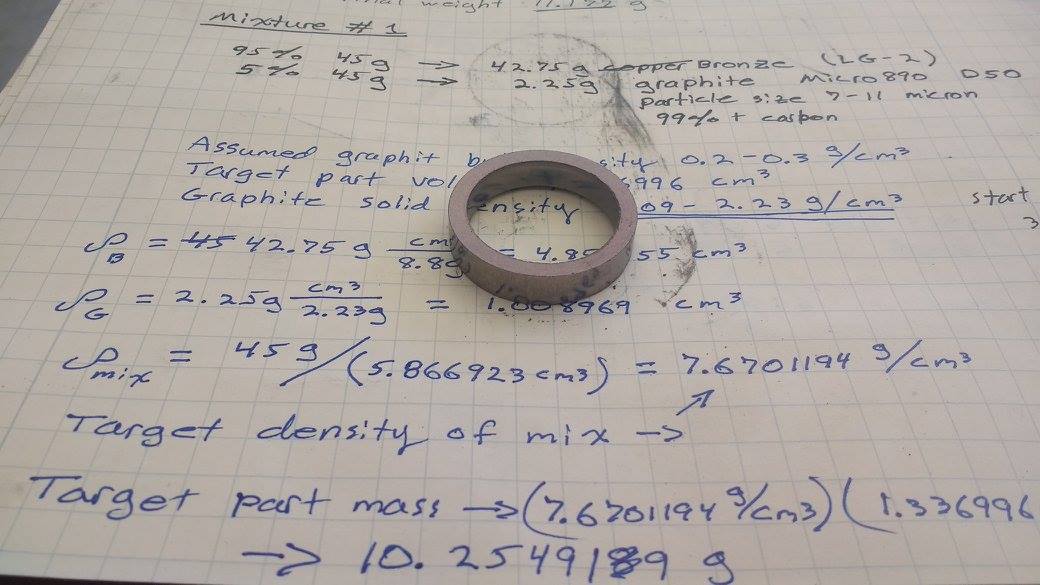

    ..And here is the pressed part before sintering. Its 5% by weight graphite powder..

    and a short video on the process

    GST with PSI likes this.
  10. zedicus

    zedicus Proven Member

    340
    50
    Joined Aug 4, 2011
    Garden city, Kansas
    you should cryo that stuff. the parts AND the die. especially on prototypes. you can even do the final machining step or make further alterations via machining cryoed parts. it is a very good investment in motors.

    My DSM:
    1995 Eagle Talon TSi

    Street Build

    16g   manual
    Loading...
  11. goldenfab

    goldenfab Probationary Member

    7
    51
    Joined Nov 16, 2016
    Dewey, Arizona
    Hey zedicus, Thanks for the feedback. I don't know much about that process but open to give it a shot if it works. Right now I just need to get the thing marginally running and things for now have taken a turn for the worse it would appear..

    So I have not really made any progress on this project since the last post as I ran out of money and have been having to work for a lving :( At the moment things seems to be going backwards. The engine has yet to run but apparently someone was overly excited to hear I was working on it and had their attorney sent me a letter http://goldenfab.com/temp_share/Rota...r_20170810.pdf

    Looking at "EXHIBIT A" of the letter, the latest by date patent issued that is related to what I have been working on is 7th down in the list which is patent # 5,361,739 https://patents.google.com/patent/US5361739A/en) which has a patent issue date in 1994 and file date in 1993. It was my understanding that utility patents last for a maximum of 20 years. As far as I can tell I am being accused of copying patents that are expired/non-enforceable and furthermore I have not used anything related to the patents for a commercial product or for gain so even if I had outright copied a current/enforceable patent.

    I called the attorney and talked to him and explained to him the situation and in typical slimy lawyer lingo diverted my questions and would not answer them only replying something to the effect of 'that is your conclusion'. I sent a message to the actual company that holds the expired patents and have yet to hear back from them. We will see how it goes...

    If anyone has any legal advice I am all ears.

    -Adam

    mitsubishikid and miliman13 like this.
  12. Operate

    Operate Proven Member

    67
    24
    Joined Mar 28, 2013
    Tacoma, Washington
    Wow thanks for the update, not sure what type of attorney you would need but one thing I will say is do not be afraid of finding an attorney to represent you, I know there is a lot of fear when it comes to legal stuff but if you are not doing anything wrong and being accused of doing something wrong It may be something to pursue.

    My DSM:
    Operate 1990 Eagle Talon TSi AWD

    Drag Race Build

    GT30   automatic
    Loading...
  13. ec17pse

    ec17pse Freelancer

    2,461
    569
    Joined Nov 1, 2008
    London, Europe
    Yeah as stated its good to cover yourself and as this is for pleasere and not for business im sure your safe to continue, i mean they patent random stuff in hopes of a lawsuit but its just stupid really.

    But keep up the good work and progressing. Worst case is you stop updates and complete this pronect silently that way no one knows what your doing

    My DSM:
    1997 Mitsubishi Eclipse GST

    Road Race Build

    175 whp   180.1 lb/ft
    Loading...
  14. miliman13

    miliman13 Proven Member

    1,502
    253
    Joined Jan 1, 2011
    tampa, Florida
    Seen this occur in the past.
    Many times they are trying to squeeze you, to see if they can intimidate you.

    Many times nothing else comes from it, as it's a stretch and they know it.

    No evidence of how you profited from this, yet they insist you pay for damages and loss revenue?

    Pathetic. While i understand the value of patents, this is one drop in a sea of perverted abuse of law, which only works for those who can afford it.

    Are you in TX.?
    If so i could inquire with my old commander.
    Today he is a lawyer.

    My DSM:
    Loading...
    mitsubishikid likes this.
  15. 95REGF150

    95REGF150 Proven Member

    95
    37
    Joined Mar 7, 2012
    Elk Grove, California
    You are absolutely right. Pull up any of those patents from the 90's on google and you will see that they are listed as expired. The last 4 on that list are the only ones still active which are "Exhaust System", "Cooling Sytem", "Valve Seal for Rotary Engine", and "Piston Head for Internal Combustion Engine". Any of the others you dont have to worry about at all and as others have said they are just trying too squeeze you.

    This is just a cease and desist letter plain and simple. Its really the only cheap thing you can do when using a lawyer. If they try to go beyond this then they will need more proof that you actually profited from your parts. You have had to offer it for sale and made money from it in order for there to be "damages". Just making something for personal use that infringes on a patent isn't going to be worth their while to go into litigation.

    Plus the only thing they have specifically stated that is being infringed is the cam drive system which is on one of the expired patents anyway.

    Keep making your stuff man dont let them intimidate you. At the very worst you have to wait another 6 years to sell the stuff your making. All of those patents are up by 2023.

    My DSM:
    1995 Mitsubishi Eclipse GSX

    Street Build

      manual
    Loading...
    mitsubishikid, kmetiuk and ec17pse like this.
  16. 1990TSIAWDTALON

    1990TSIAWDTALON Proven Member

    2,516
    671
    Joined Nov 14, 2013
    Independence, Kansas
    My DSM:
    1992 Eagle Talon TSi AWD

    Street Build

    14b   automatic
    1990 Eagle Talon TSi AWD

    13.620 @ 108.460 MPH
    1990 Eagle Talon TSi AWD

    13.612 @ 107.760 MPH
    Loading...
  17. livedsm4g63

    livedsm4g63 Proven Member

    1,009
    145
    Joined Mar 1, 2008
    Auburn Hills, Michigan
    Looking at the cover of the patent it does not state any extension dates and it, as stated above, is 23 years old.
    Id call them back and have them prove to you that the patent is still valid being that it is over the 20 years and it was never extended.
    If that cant, tell them to piss off.

    My DSM:
    1991 Eagle Talon TSi AWD

    11.495 @ 124.750 MPH
    Loading...
    gfritz25 and mitsubishikid like this.
