Well here is the background story, back in middle school i decided my dream car was gonna be a 2g Mitsubish Eclipse. at the age of 20 (about 6 years later) i finally found one! it was a 96 eclipse RS, manual transmission, stock engine, stock exterior and interior, etc etc. i got out of my racing dream seeing as its not a turbo model so i decided to go the other route which is sound. ive been working on this project since 2011. so this build log will have some catching up but i do have tons and tons of pics of the build up to this day, im still working on my car, her name is Virtue, even now. its a daily driver/show car build. i just wanted to show off, itll take awhile to get all pics uploaded but ill start anyways. enjoy the build and if u have questions feel free to private message me and ill answer or help u out

Well i had a small setup before i started the big project so i tooke everything out to start a clean slate and so i started with the boring but important part... sound deadning

dont mind the dates on the photos ### that old camera was messed up but anyways here is my shipment of sound deadner that i will be applying to the whole car

its not the most amazing stuff in the world but it is cheap and i can double layer it

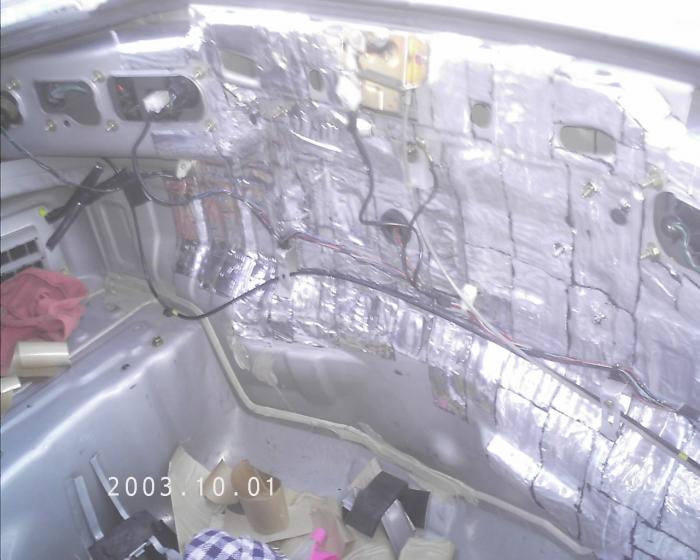

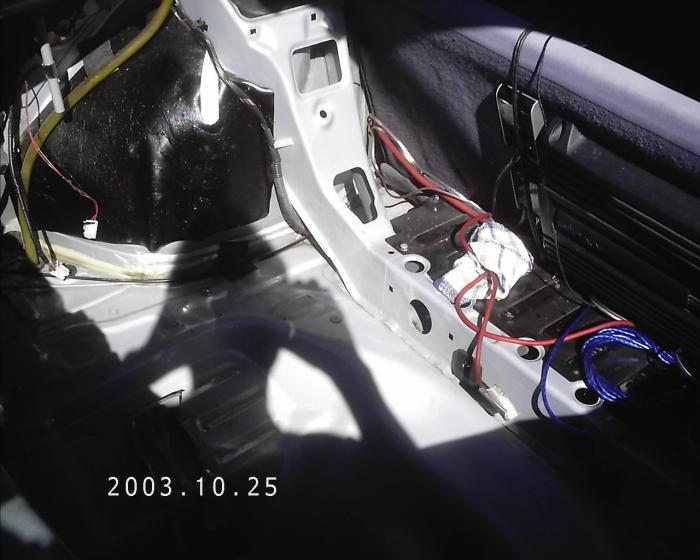

i started getting some trunk covered but it got dark

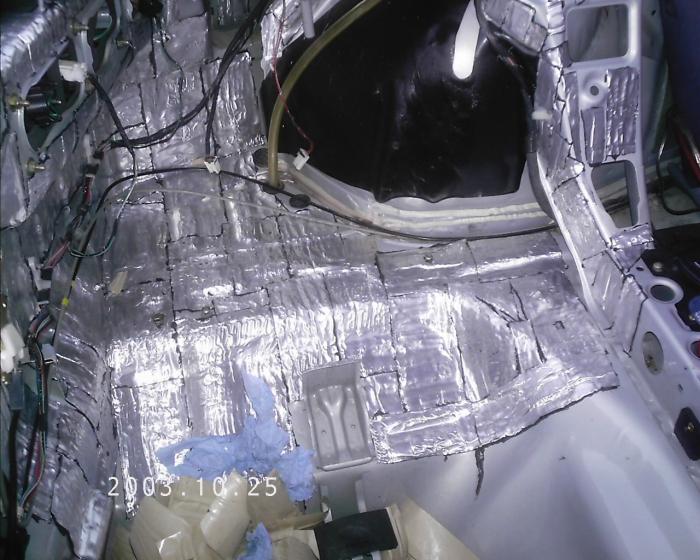

im just about finished

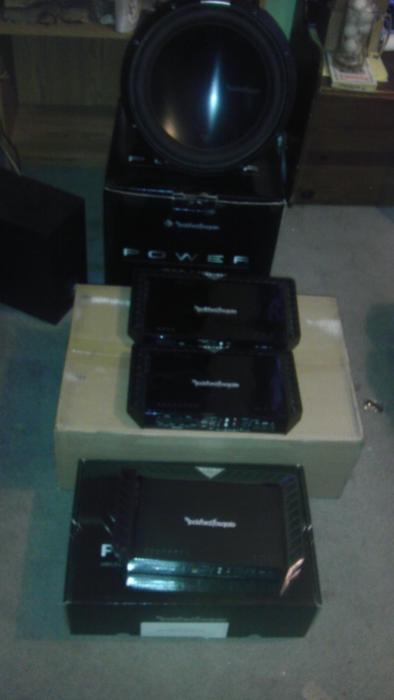

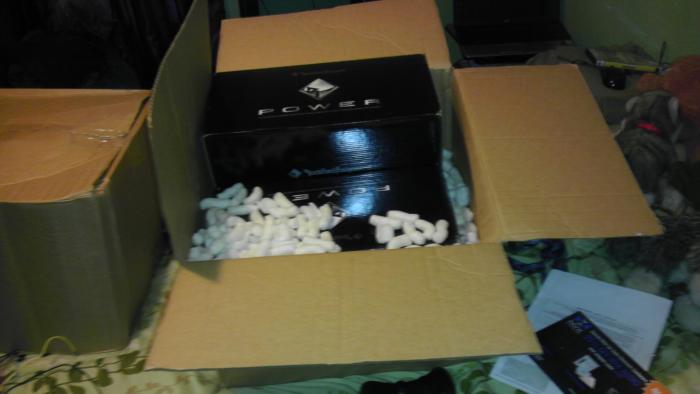

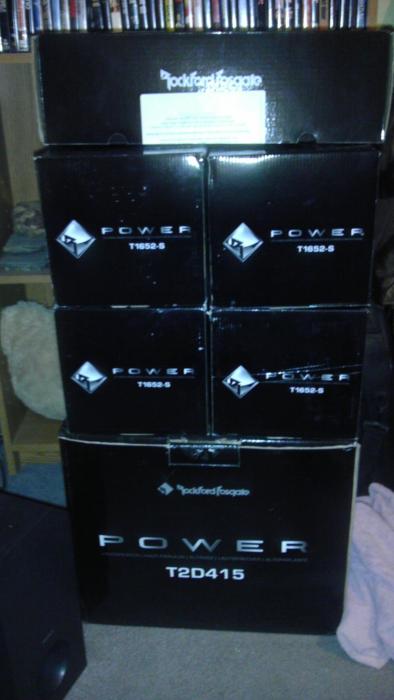

Got the sub and all three amps

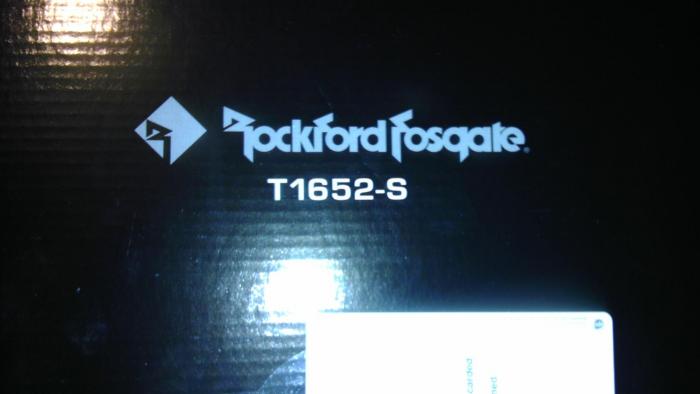

the type of component speakers i got

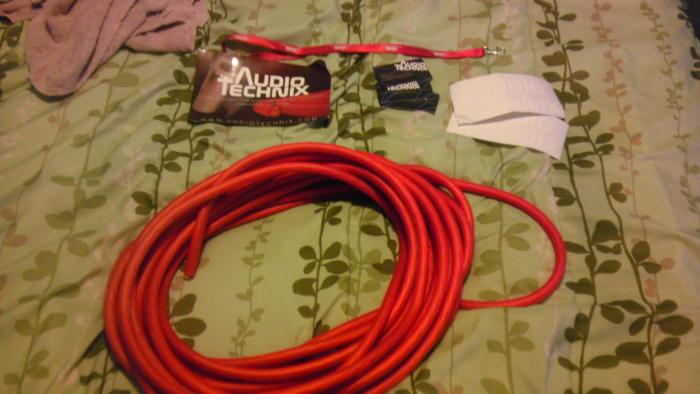

my 50ft roll of 0 AWG wire

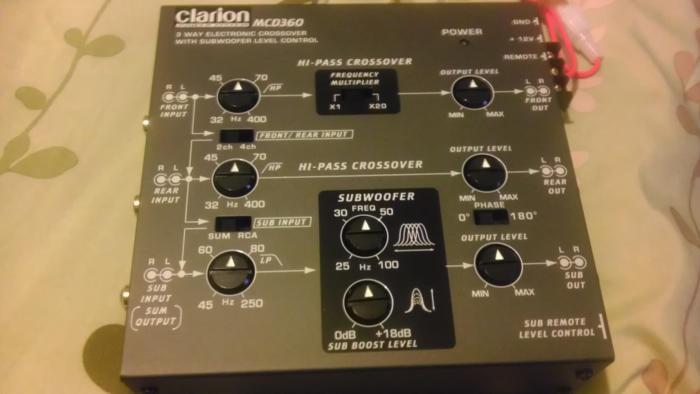

my 3 way crossover

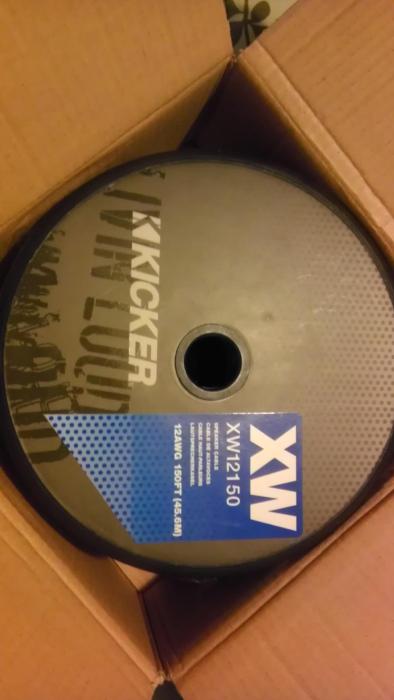

my 150ft roll of kicker 12 AWG speaker wire

pic of all my component speakers and sub. that is 17 speakers

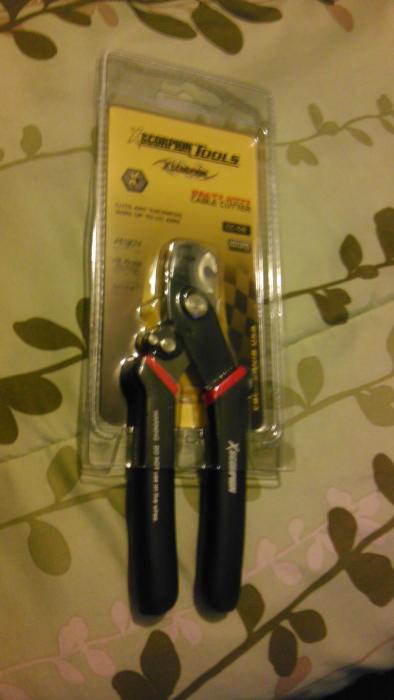

my 0 awg wire cutters


Attachments

  • 191742_3848286323146_1123363119_o.jpg
    26.1 KB · Views: 110
Getting Virtue painted in her signature paint scheme, it is a Metallic Silver Sky


got my new signal cables and volt meter for the project


finally got my car back and ready for the build

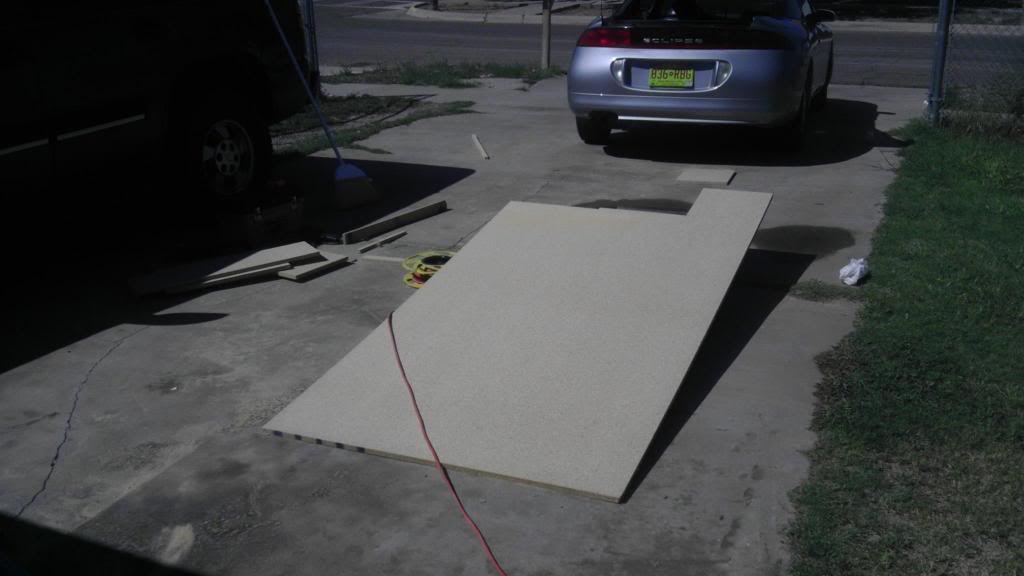

here is the first of 3 sheets of MDF that ill be putting inside Virtue, the first step is to build the bottom plate for the compression chamber


2 hours later the first sheet is gone

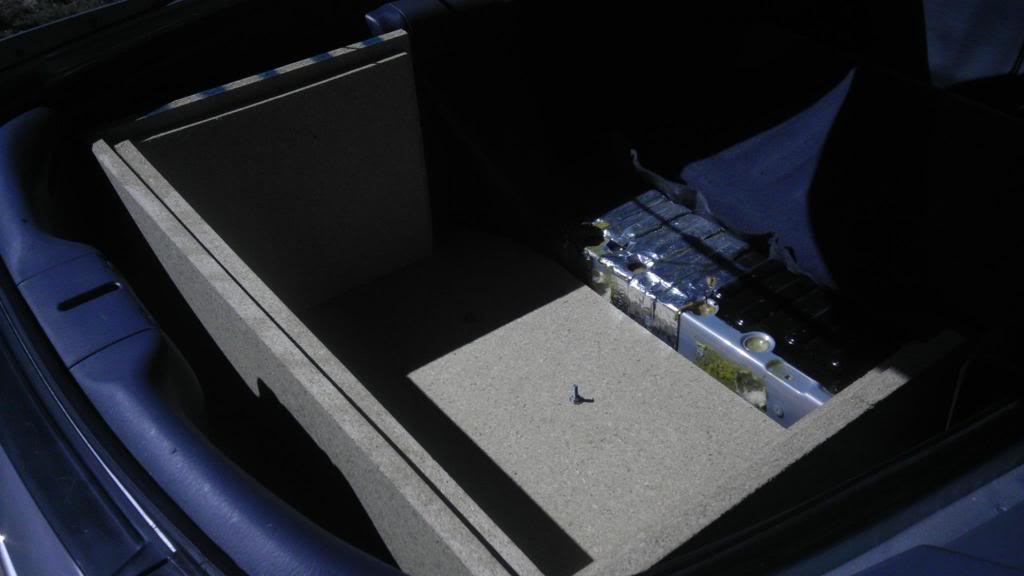

here is a pic of the bottom plate. it is double layer wood so that is now effectively an 1 1/2" thick. i used bolts to compress the wood together and keep it in one solid piece


pulled out the second sheet to make the walls, so i just have one sheet left and a 4" pipe for the ports


cutting into the second sheet

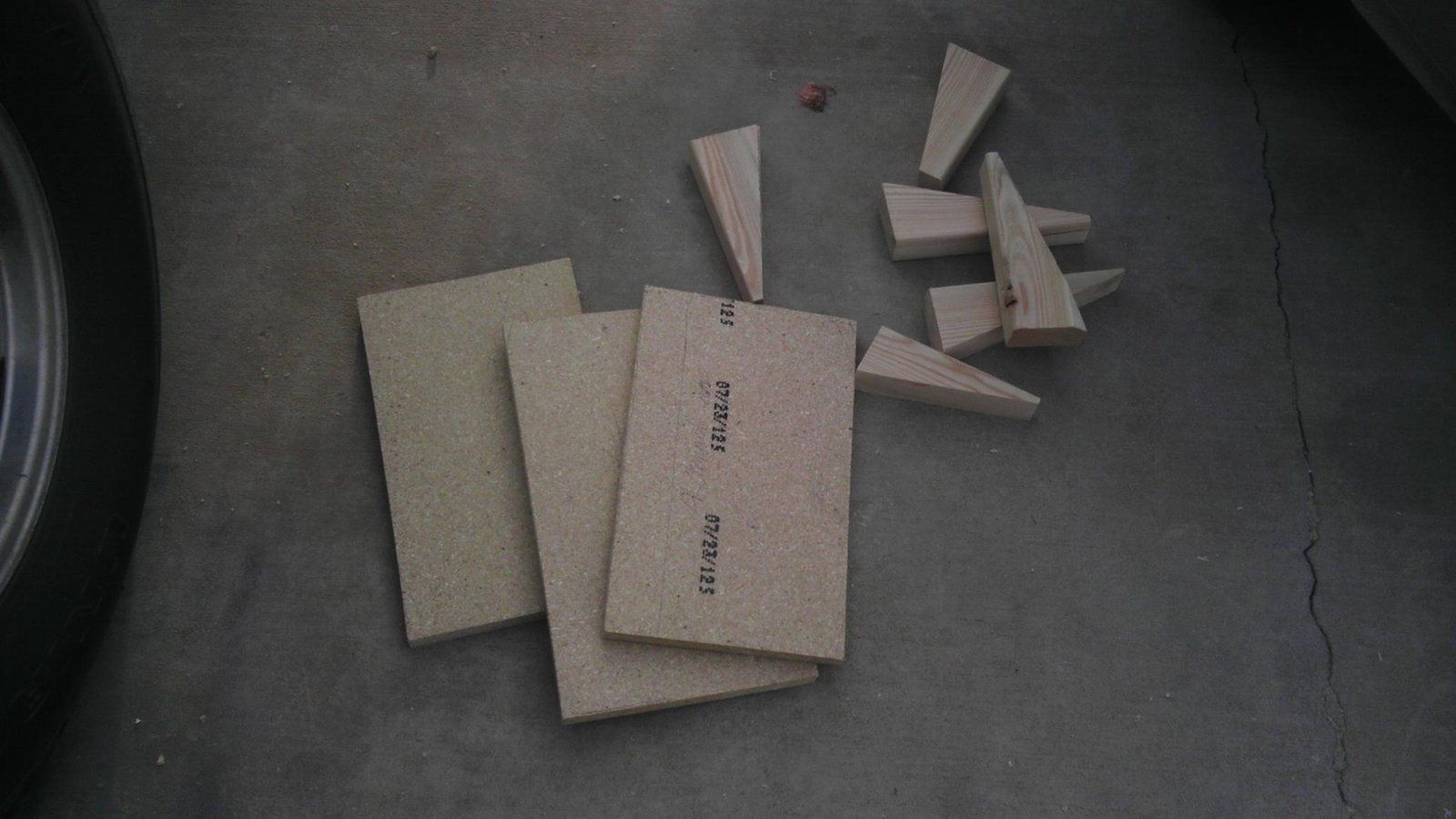

got the walls for the compression chamber made


now finishing up the top plate and making the face plate bracket walls


a view from the front seat


the box is almost done


a pic of the top of the box


pulled out the final sheet of MDF and about to make the face plate for the sub and ports


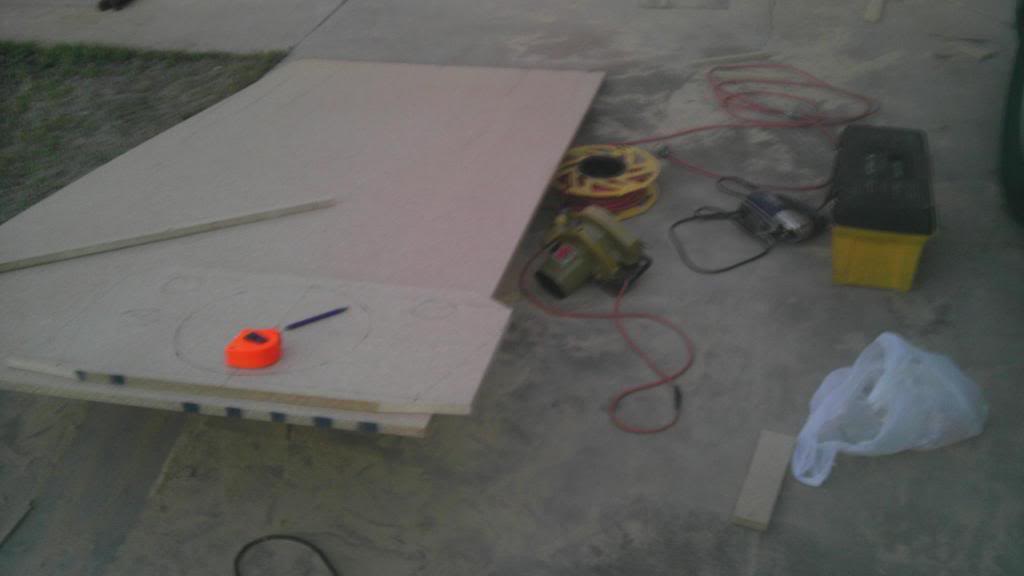

my cut out marks


pulling out the T2 in preparation to install it


a pic of the cone

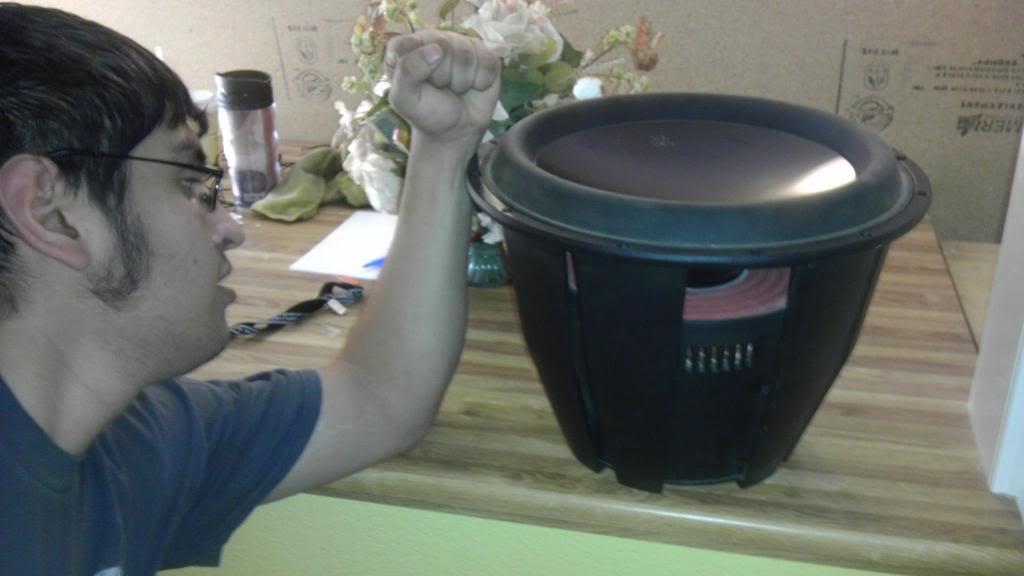

just to give a sense of how big this sub is. it also weighs in at 60 pounds

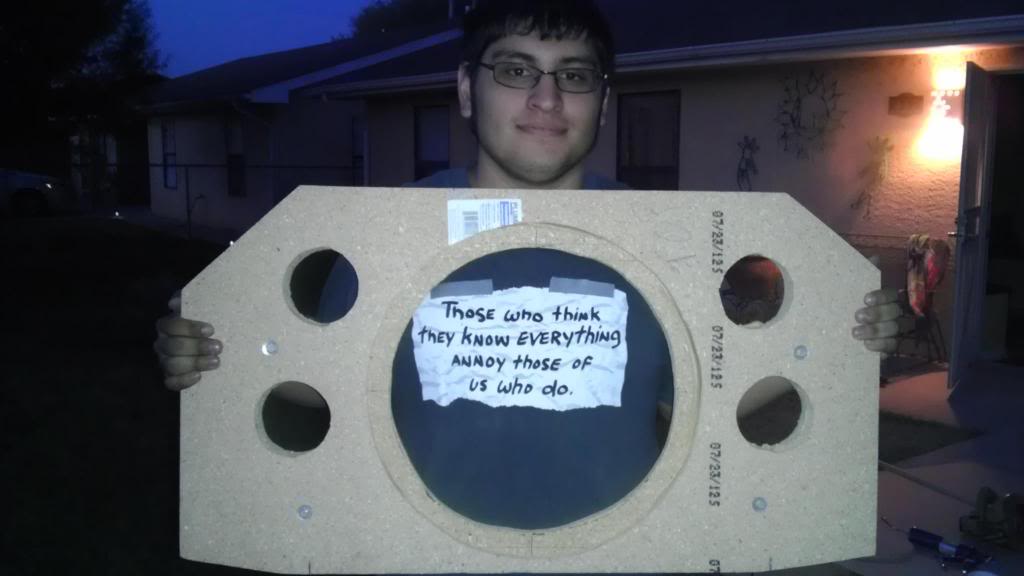

got the face plate made! it is also double layer of course

i got the faceplate attached on the box


another pic of the faceplate


got the ports cut

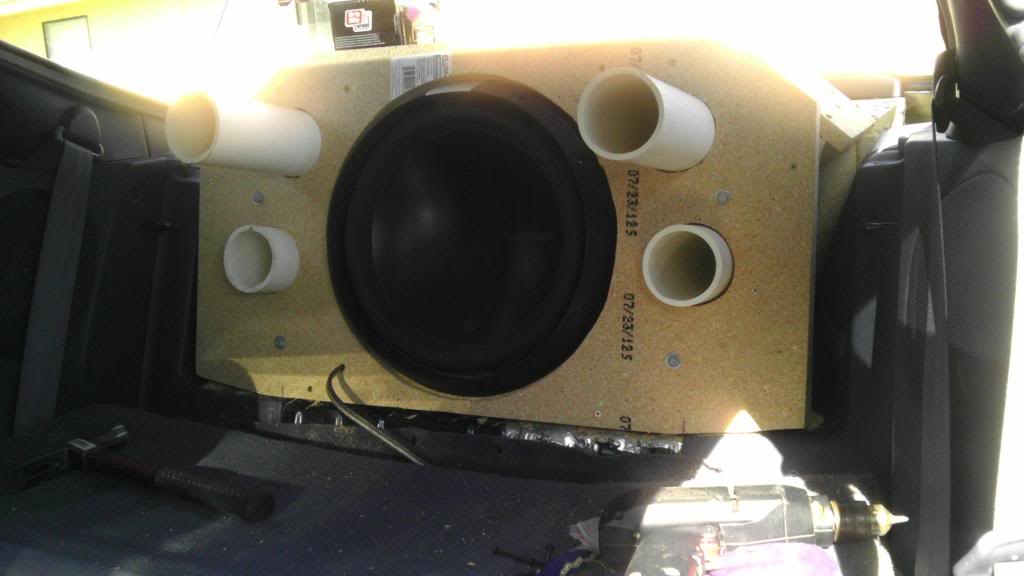

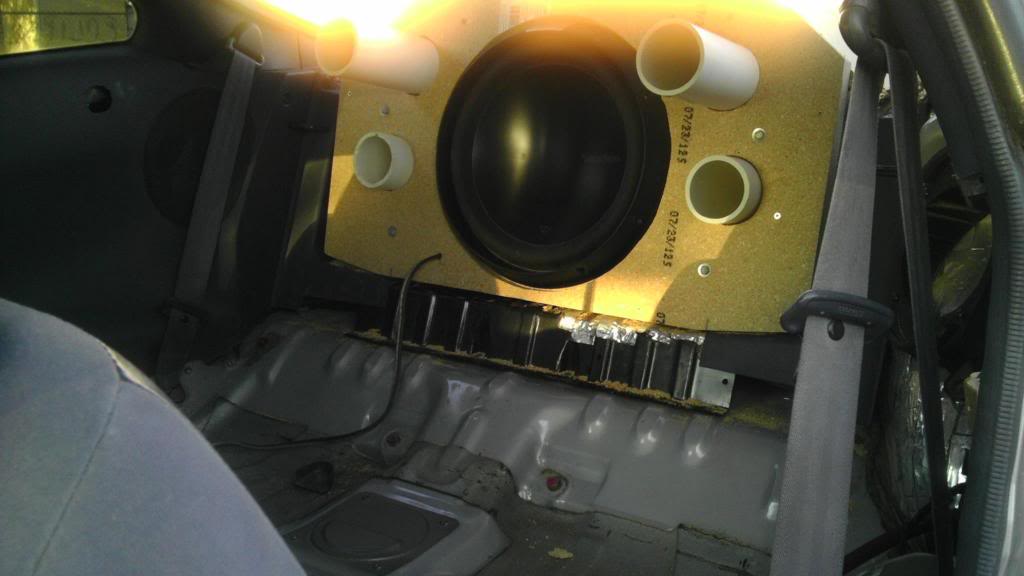

the finished product of the box

stage one is now complete and stage two is ready to start which entails fabricating custom rear panels
and the amp rack

well to start off stage 2 i ran a 0 AWG wire from the front battery to the rear battery. i decided to try my hand at soldering too

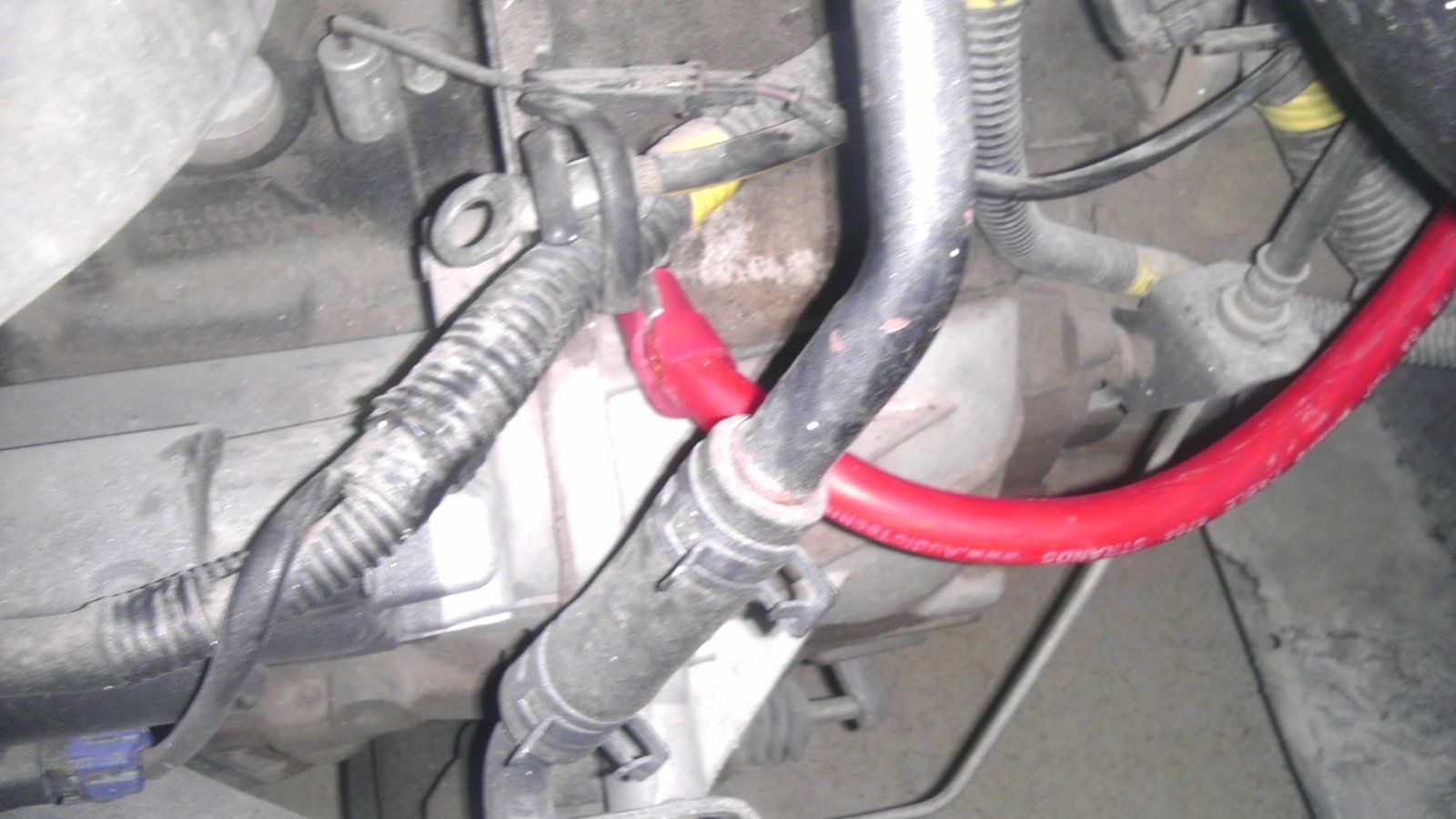

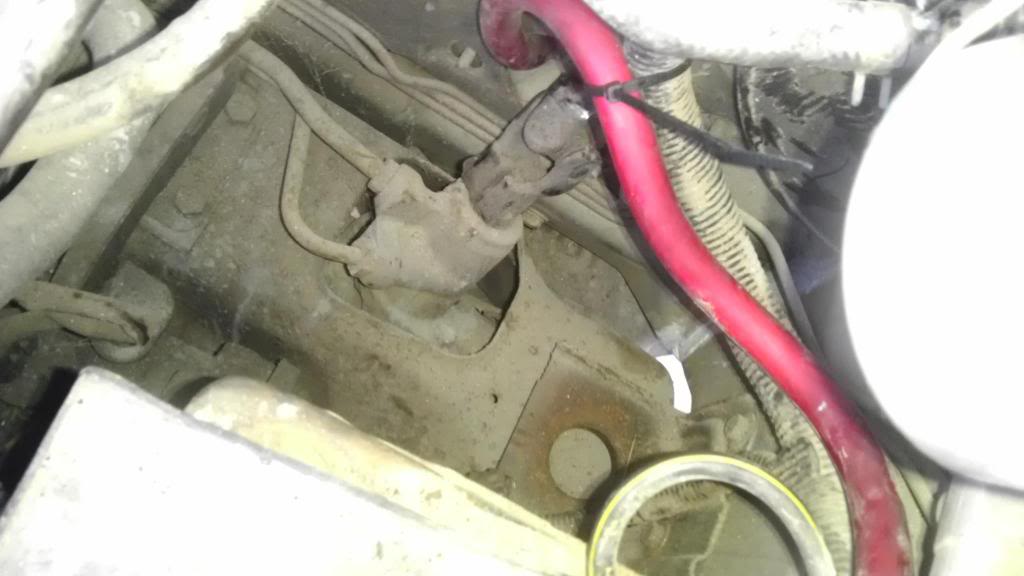

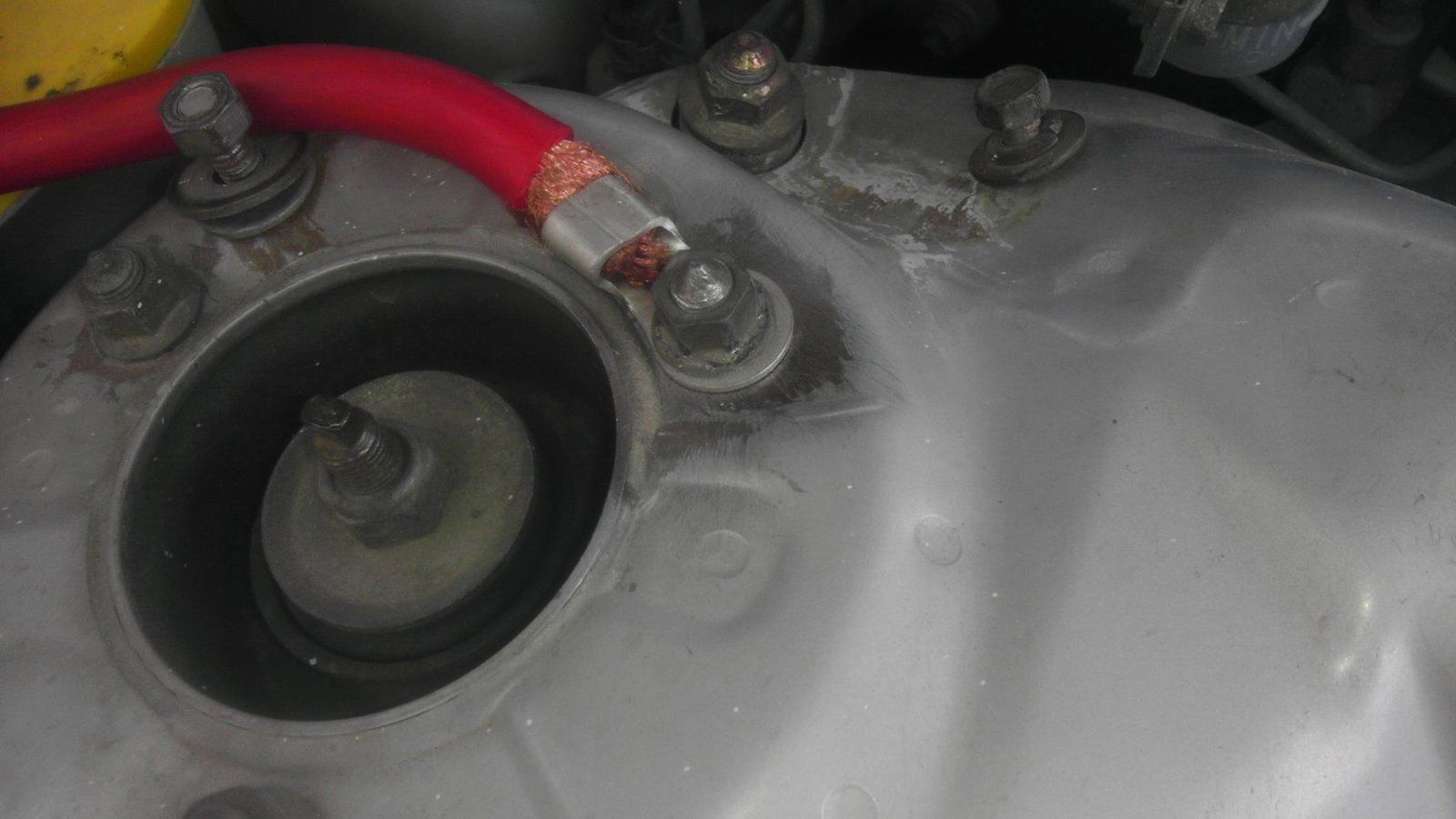

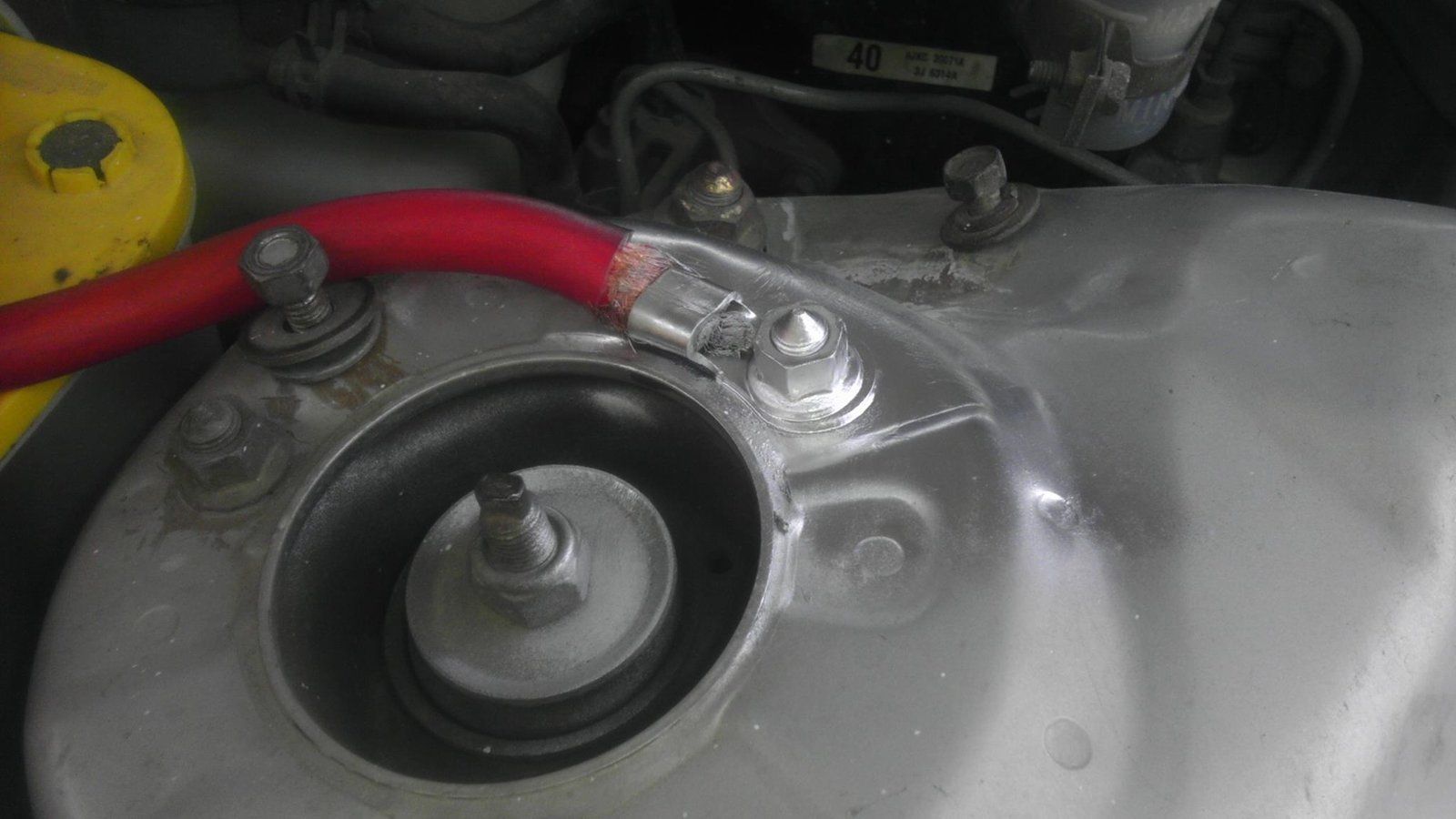

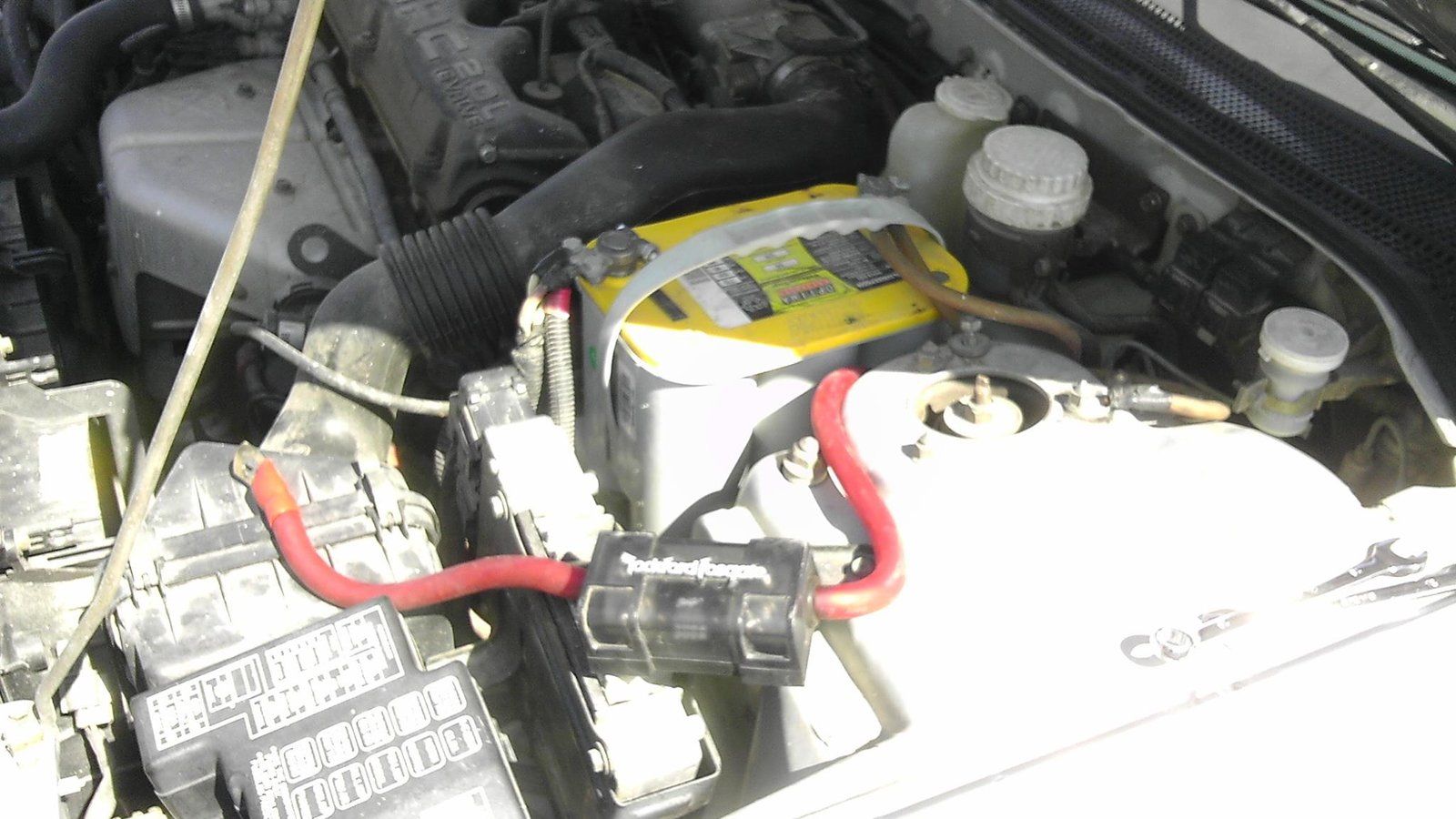

go the wire setup at the front battery

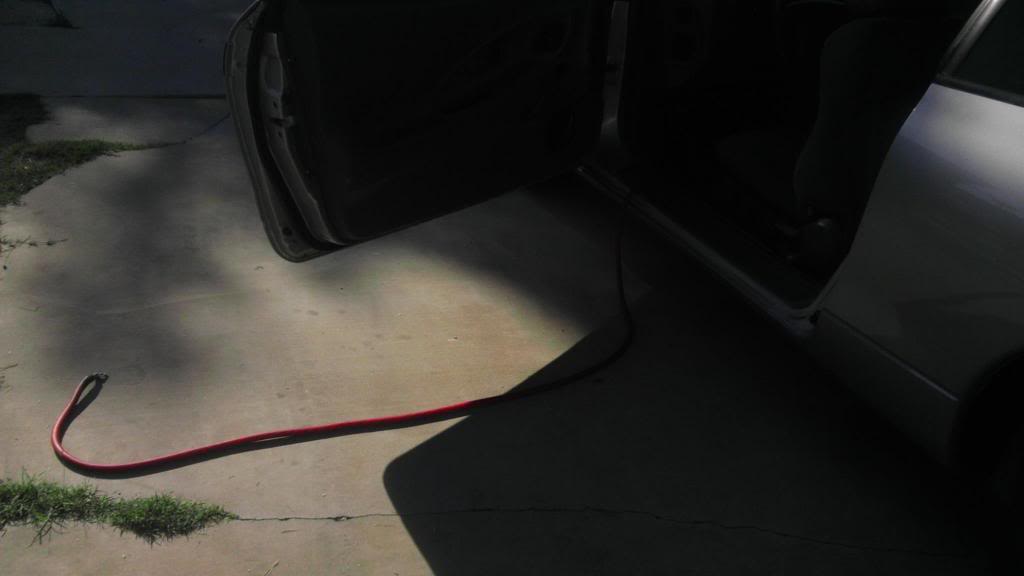

getting the wire run thru the interior


i ran the wire thru firewall next to the steering wheel


got the back seat taken out


got the back panels out

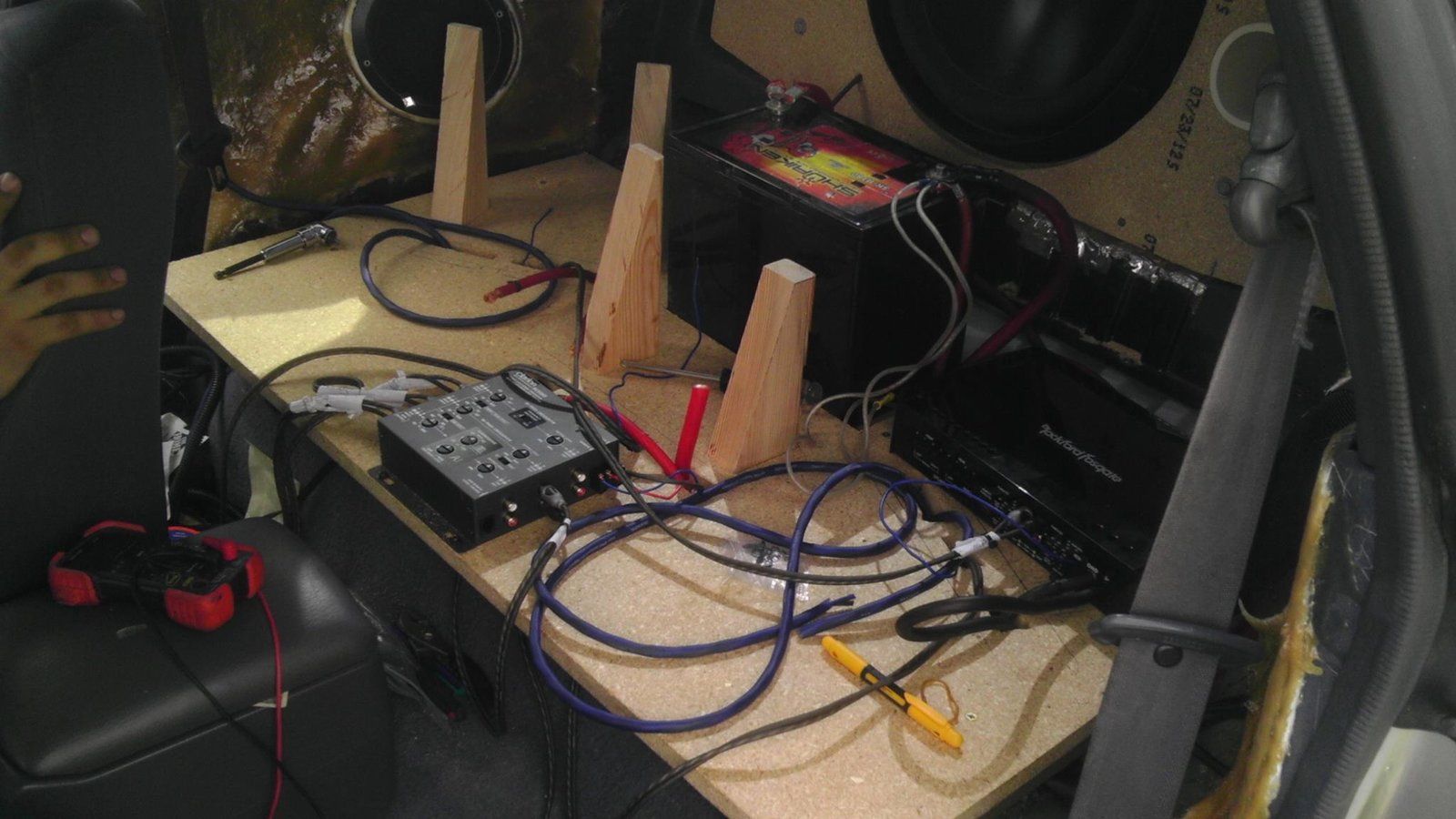

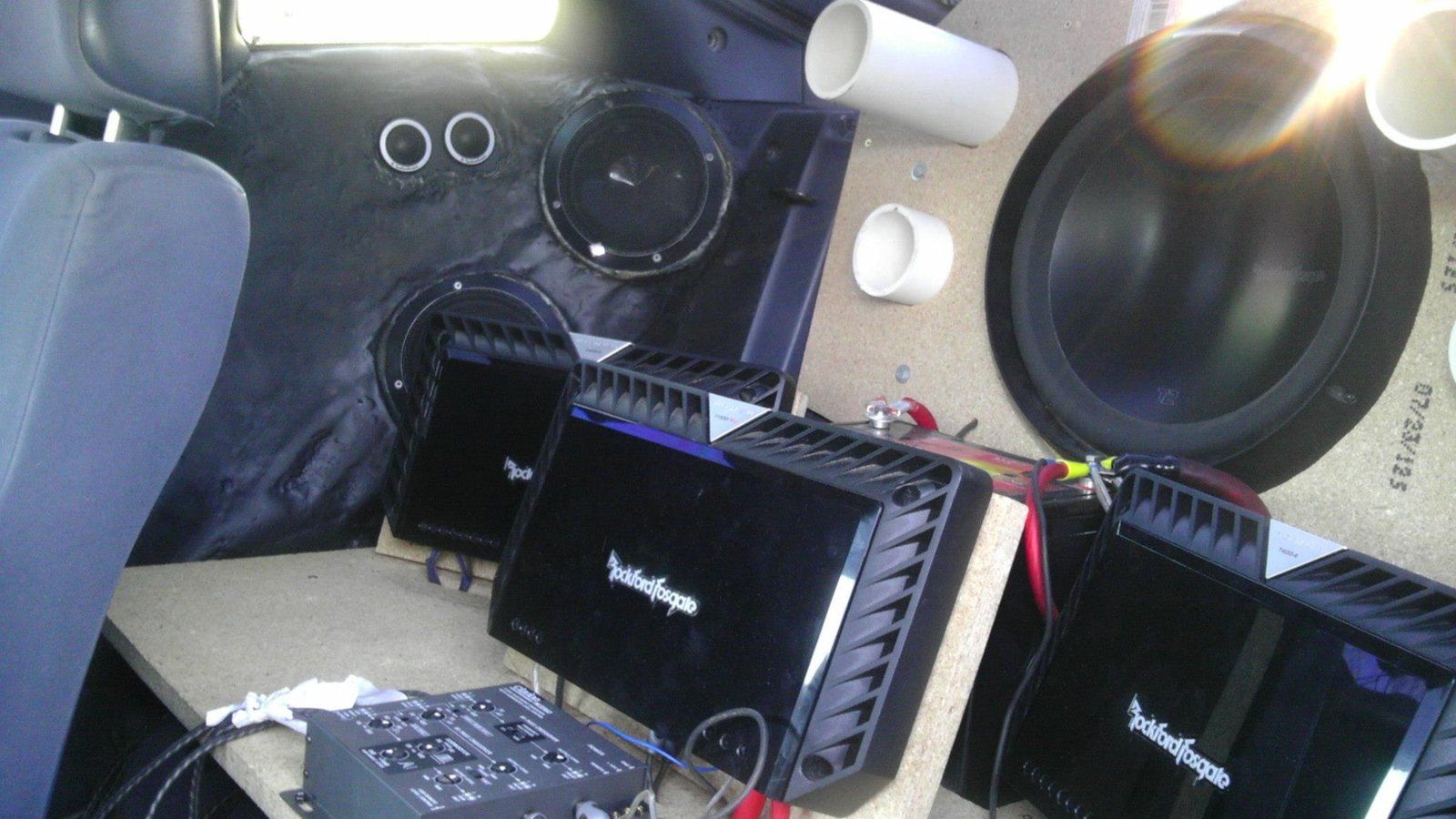

getting a test fire with the amp rack and battery setup

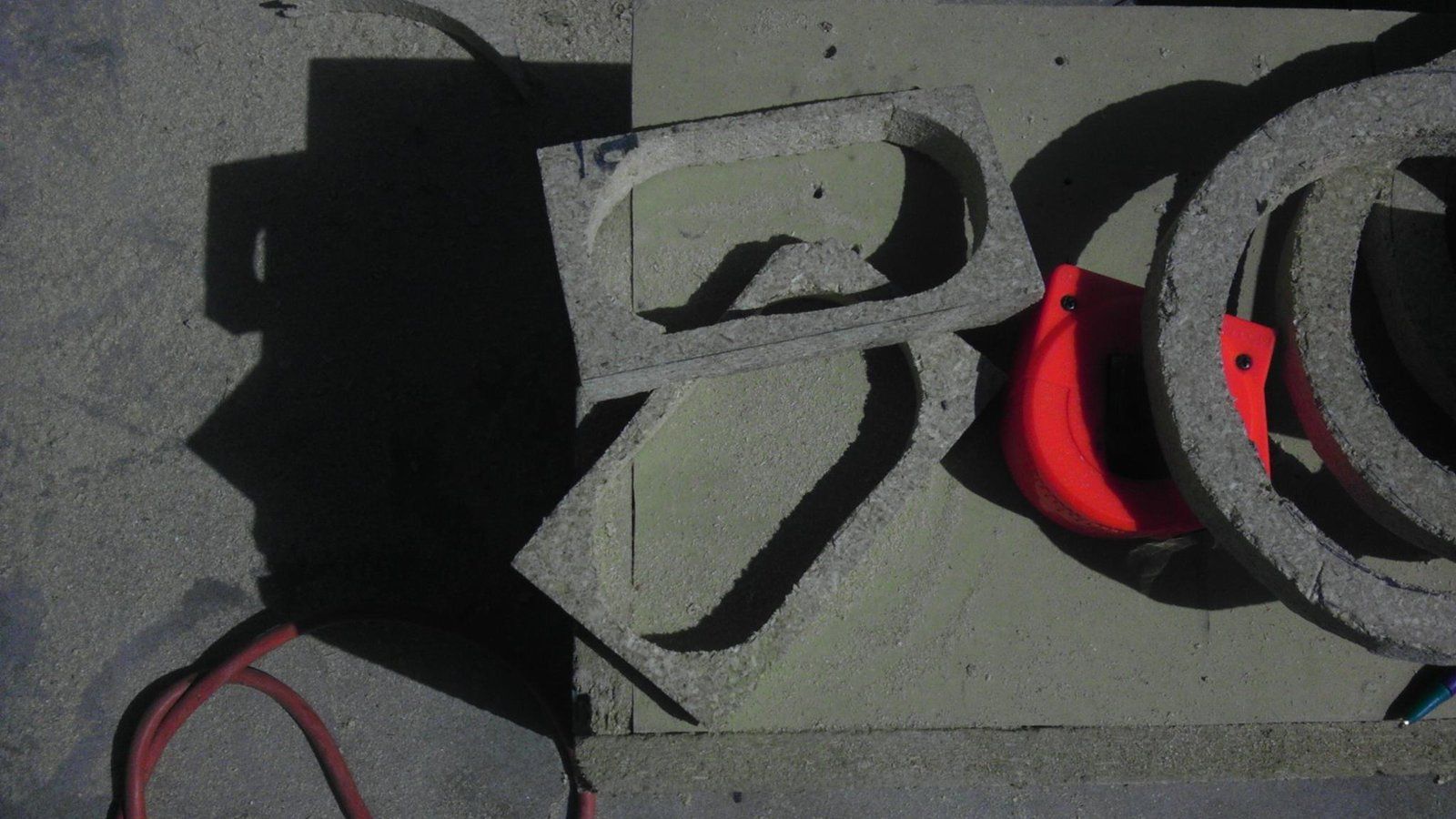

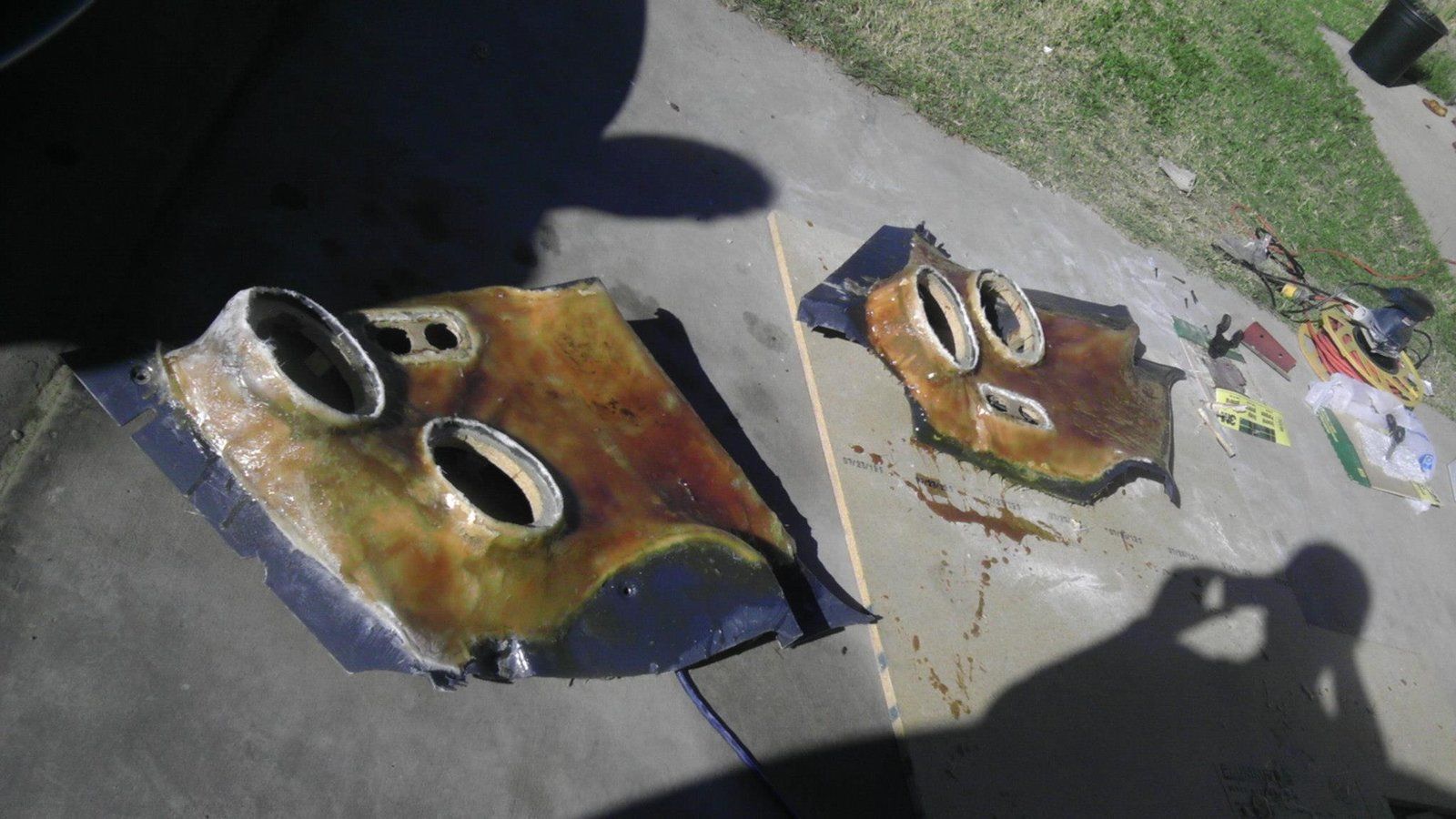

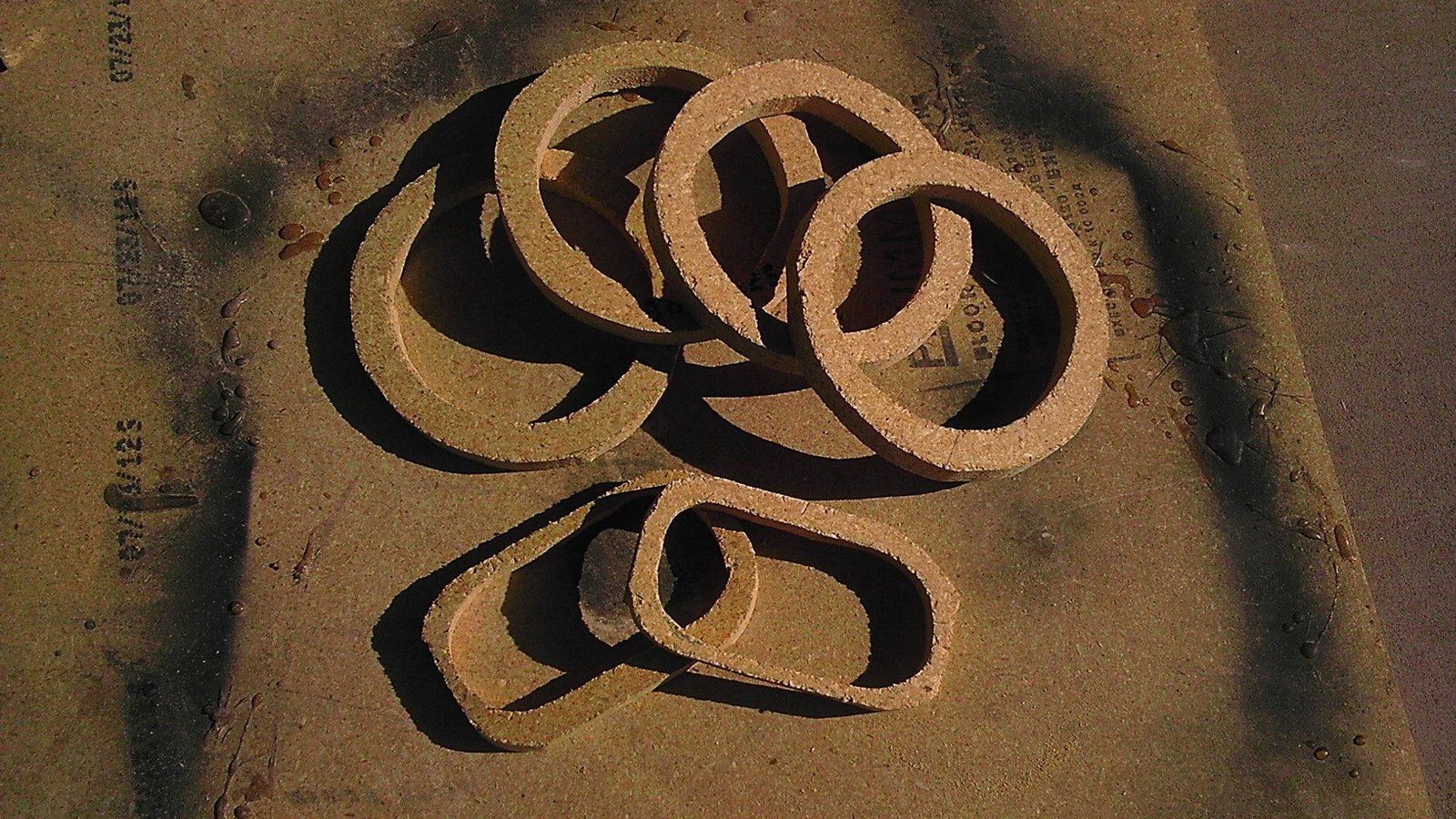

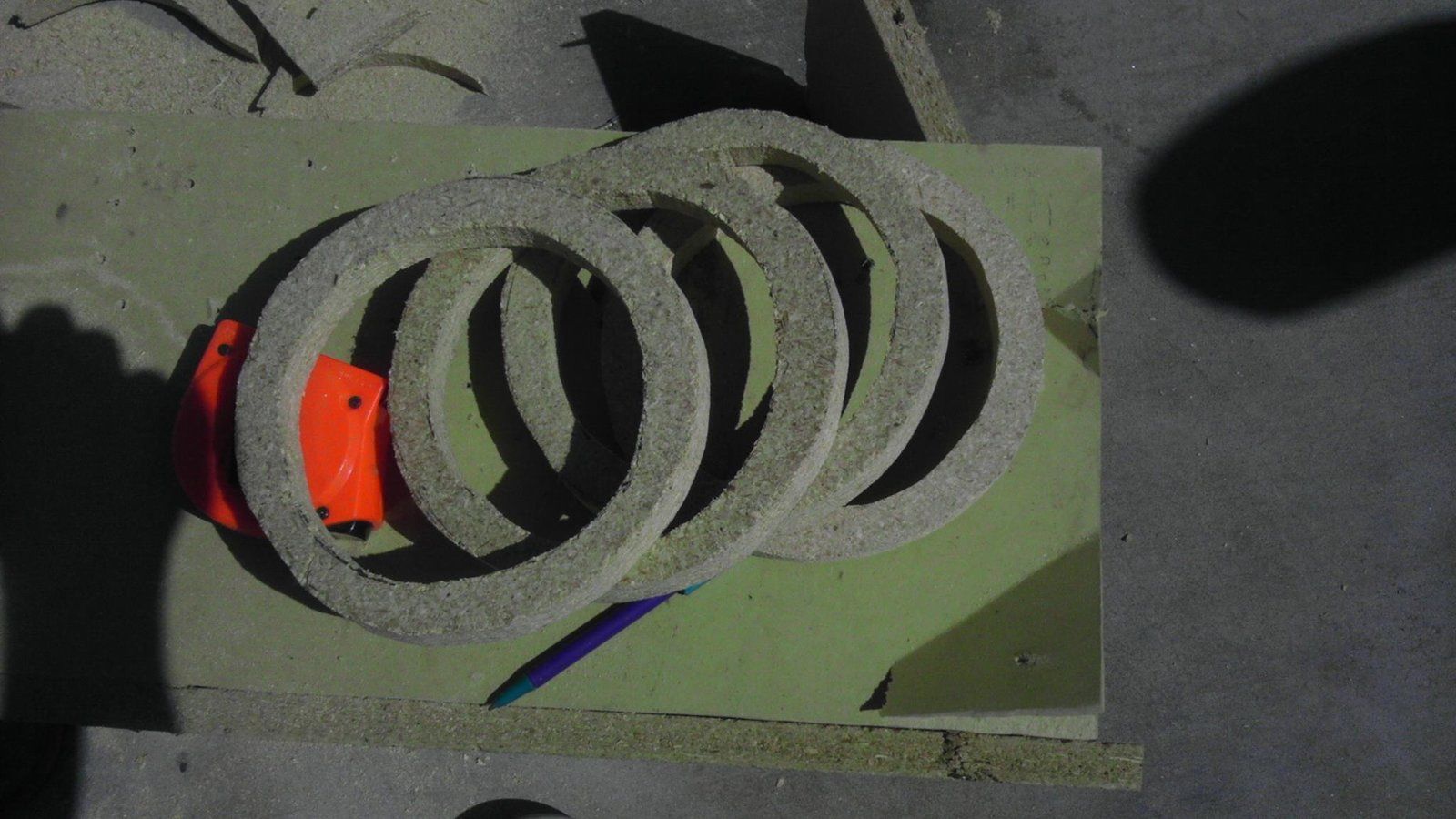

got the lips attached to the rings, I actually just went to home depot and bought some garage door sealer and then stapled it to the rings LOL but it works

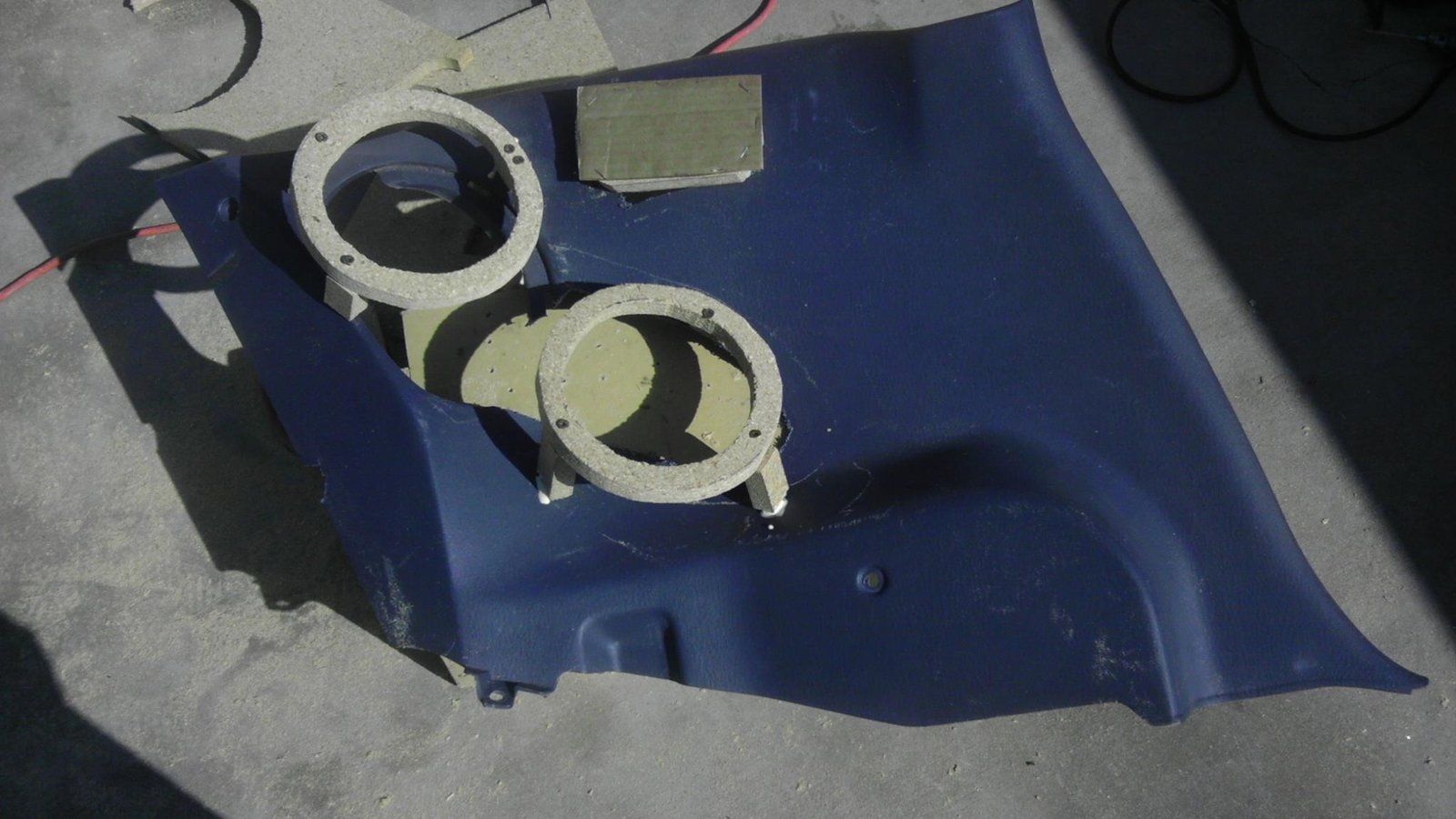

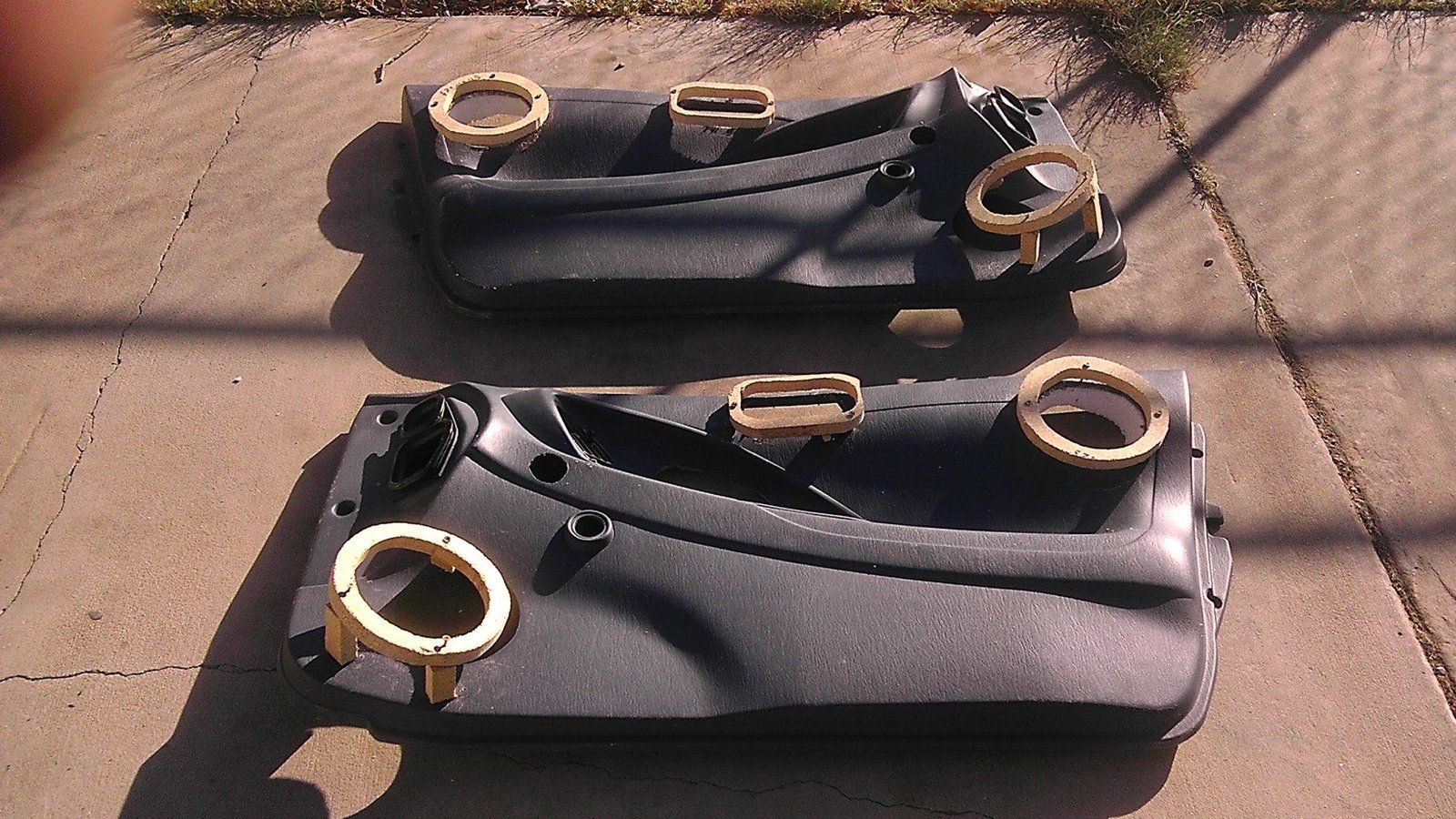

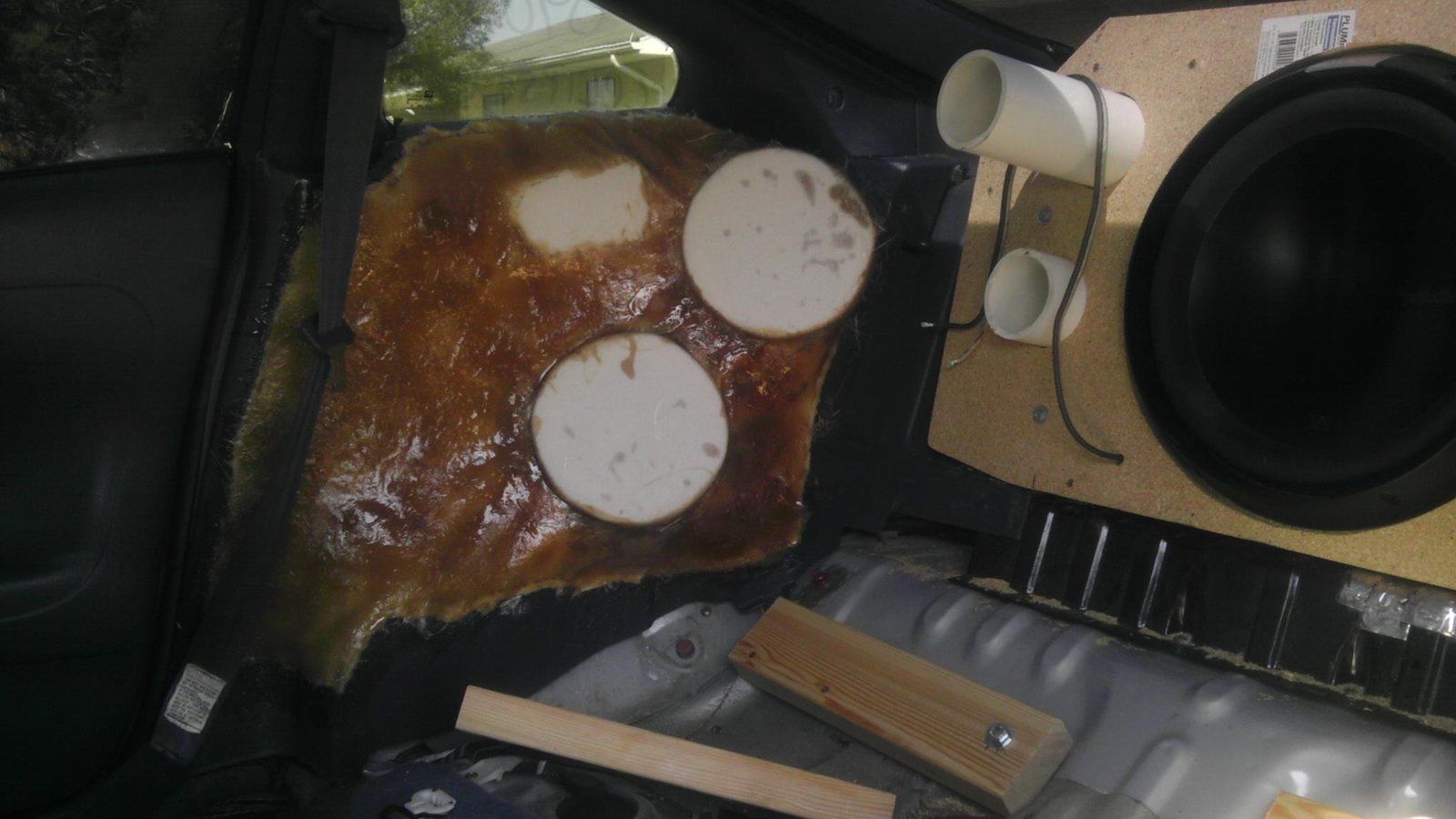

got the uneeded fleece cut out and the speakers mounted and wired up. I'm wiring them to so they will present a 2ohm load on each amplifier output

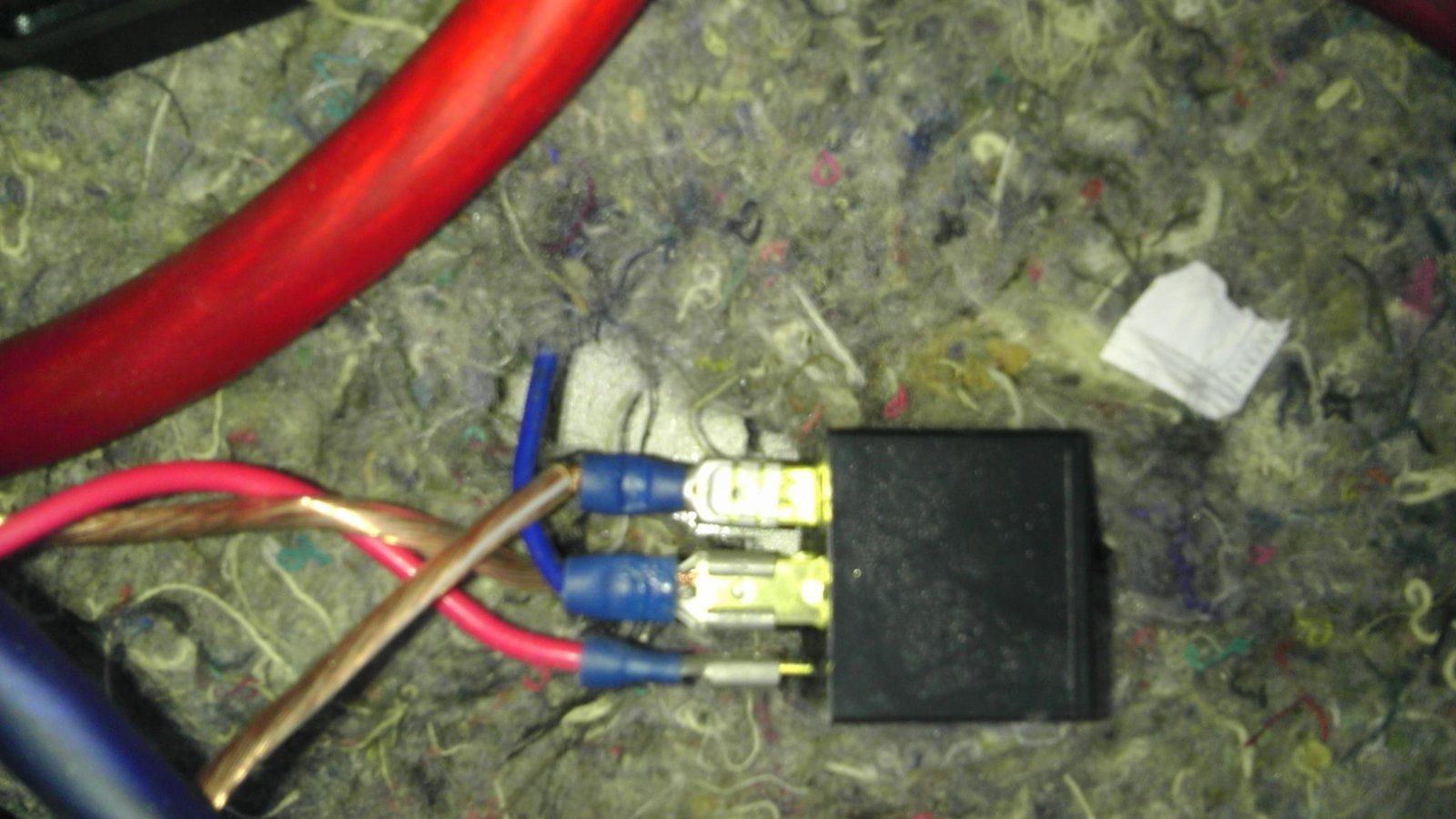

Here is the relay I'm gonna use to have the stereo turn on all 3 amps. its a single throw relay so the stereo will turn this on and then the relay will draw power from the battery to activate the system and I have it fused with a 1 amp fuse
