Street Build Evolution 3

  1. tkrPerformance

    tkrPerformance Proven Member

    579
    14
    Joined Dec 2, 2002
    plymouth, Minnesota
    I have been on here for a while just dont post to much. I am always busy working on project cars of mine. I have been driving it every day for almost 3 years now. this will be the first winter that I will not drive it. I am building a mini version of it. a swaped 95 mirage coupe right now.

    I will be just coping the pics and posts so they will look old like I am still building the main part of the car.


    please dont mind the spelling I can not spell to save my life

    some info on the car

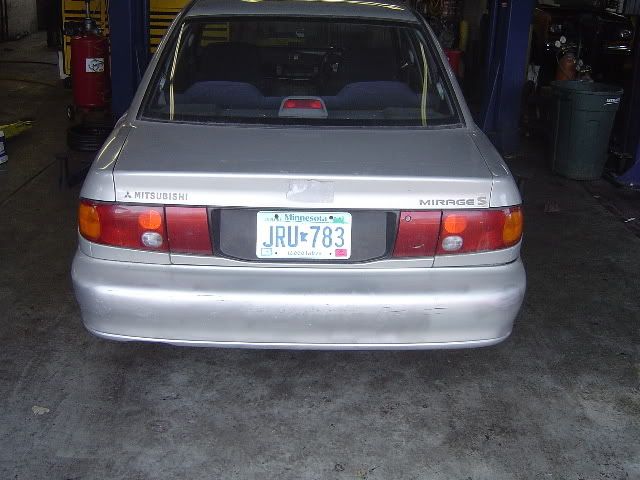

    started out as a 1995 mitsubishi mirage s
    1.5 sohc with a blown head gasket
    auto tranny with only reverce
    I got the car for free beacuse they did not want to fix it to much money for what it was worth to them.

    This full swap came about because I have always wanted a evo III and this was the best way to do it and be able to drive it as my new D.D.


    Log in/Register to remove ads
    My DSM:

    Street Build

    GT40   manual
    1998 Mitsubishi Eclipse Spyder N/T

    Street Build

    50trim   manual
    Loading...
  2. tkrPerformance

    tkrPerformance Proven Member

    579
    14
    Joined Dec 2, 2002
    plymouth, Minnesota
    Here is a list of parts in the car. Also by the way there is no fiberglass fake parts on it. I have paid more and waited for all oem mitsu evo III body panels for it

    10 slim fan
    2.4 block (will go in soon)
    2.5 shorty fmic piping
    255 pump
    2nd 255lpr fuel pump
    3in dp pipe back exaust
    3in gm maft and translator
    areomotive afpr
    arp head studs
    b.s. kit
    custom 3in intake to oem location
    custom fuel cell with twin pumps and -8an fittings
    dnp exaust mainfold
    dsm chip for 850cc
    evo III engine
    evo III hks copy sheet metal intake manifold (smim)
    exturnal oil coolor
    fic 850cc injectors now
    pte 1600cc injectors for e-85 swap soon
    full -8an fuel feed an retun line
    hks 272 exaust cam
    hks 272 intake cam
    hks air filter
    honda 1/2 size alum radiator
    moded evo fuel rail for -8an bungs
    o2 elimiator 3in down pipe
    oem multi layer metal head gasket
    pte scm 5031e turbo
    ralliart low tem t/stat
    hks/ralliart pistions
    hks/ralliart rods
    s.s. oil line with earls filter
    s.s. t-bolt clamps
    tial 38mm wastegate 27psi
    tial 50mm bov
    xo2racing cuplers
    taylor 10.4 wires

    cusco center diff
    cusco front lsd
    cusco rear end lsd
    evo III t.c.
    evo III tranny
    Q.M. twin plate clutch

    compleat evo III front end suspension
    cusco front camber plates
    cusco front tower bar
    cusco rear tower bar
    cusco zero 2r coil overs
    evo III rear end

    1g dsm 5lug set up
    evo 9 rear 5lug set up
    evo 9 brembo 4 pistion fronts
    evo 9 rear brembo 2 pistons
    evo rear disk
    s.s brake lines
    evo 9 ebc reds front and back

    3 60mm autometer gauge pod cage mounts
    5zigen stering wheel
    all evo plactic panels
    blitz horn button
    bozz stering wheel adaptor
    cusco saftey 21 6pt roll cage
    evo I carpet
    evo I front seats
    evo I rear seats
    evo III rhd swap
    evo trunk carpet
    greddy boost gauge
    greddy counter weight shift knob
    greddy egt gauge
    greddy oil press gauge
    greddy turbo timer
    hks short shifter
    power locks
    power windows

    custom made fuel cell
    evo III alum hood
    evo IIIgas door
    evo II headlights
    evo II gsr power doors
    evo III oem fenders
    evo III oem front bumper
    evo III oem rear bumper
    evo III oem side skirts
    evo III oem wing
    evo power folding mirrors
    evo side markers
    evo tails
    h4 silver stars motorcycle bulbs

    18*8 black dxr rims 5lug
    215/35/18 falken tires


    That is what is into the car as of right now. I still have to do all the bodywork (I am a body tech) and paint it. It will be a 2 tone paint job. matte blue bottom with a flat clear and black roof,a-b-c pillers with a gloss clear

    My DSM:

    Street Build

    GT40   manual
    1998 Mitsubishi Eclipse Spyder N/T

    Street Build

    50trim   manual
    Loading...
  3. tkrPerformance

    tkrPerformance Proven Member

    579
    14
    Joined Dec 2, 2002
    plymouth, Minnesota

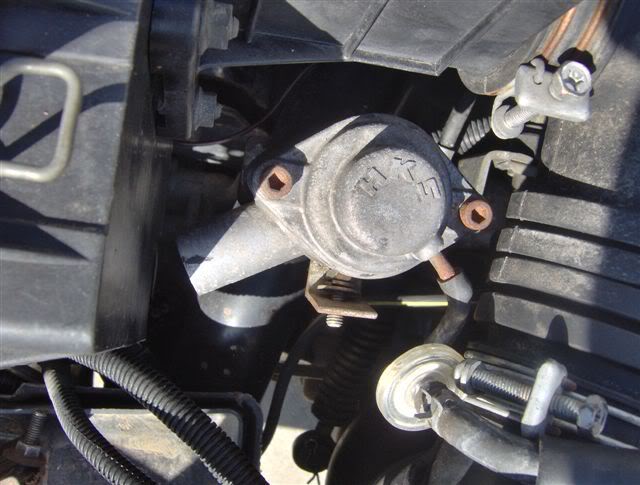

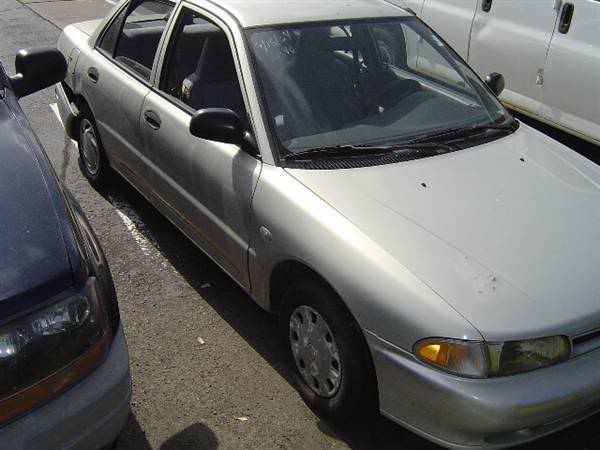

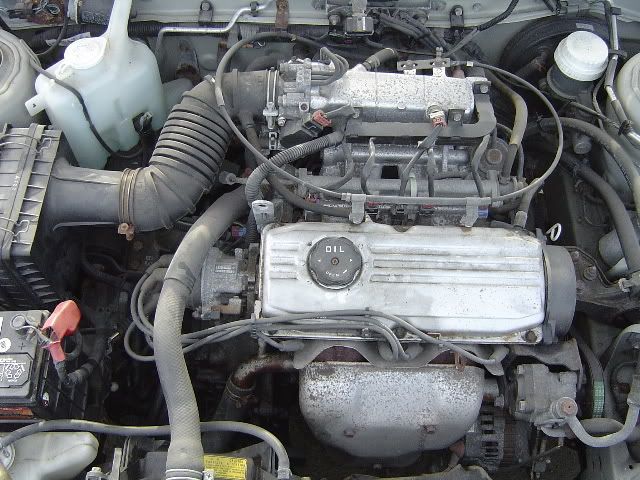

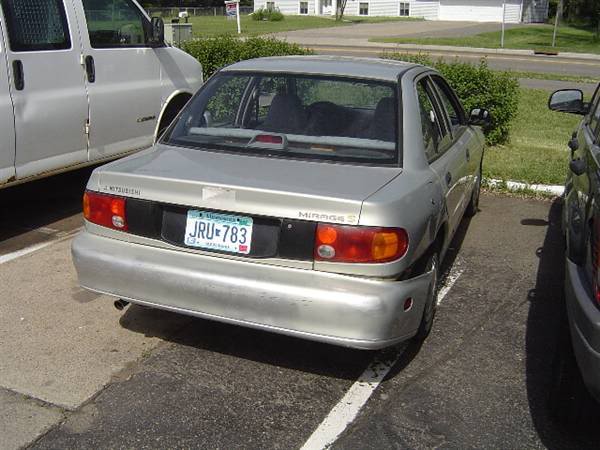

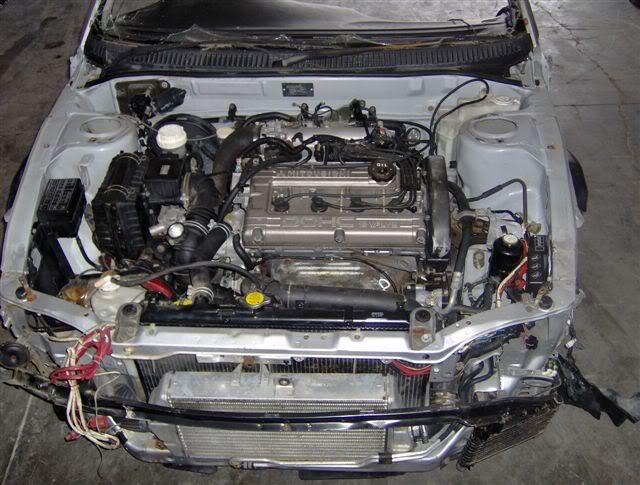

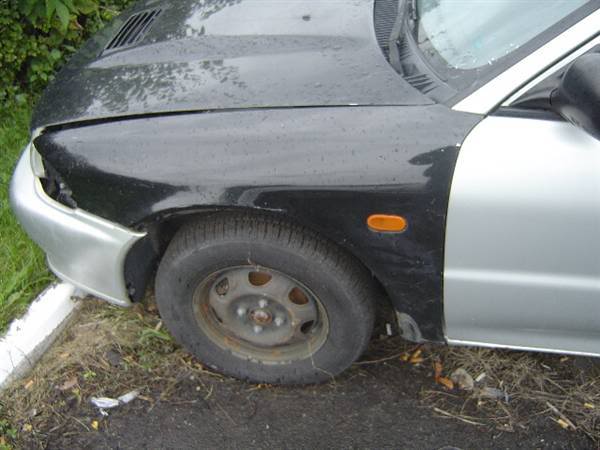

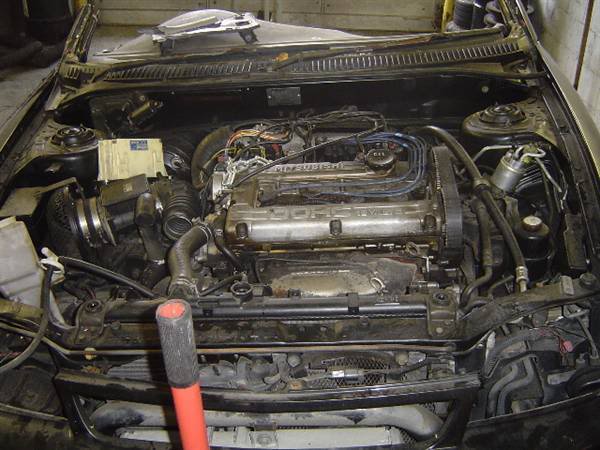

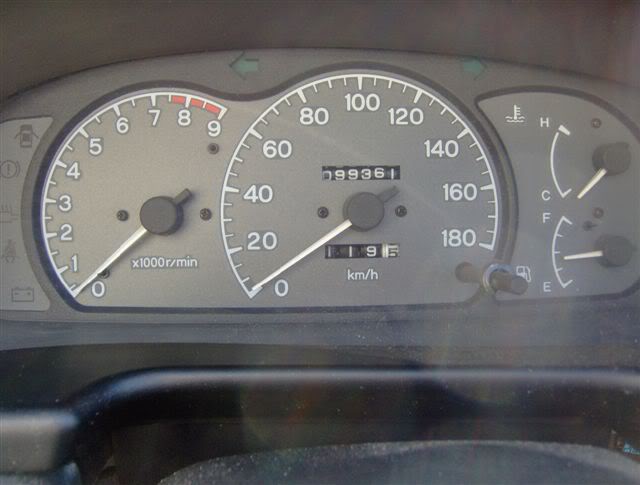

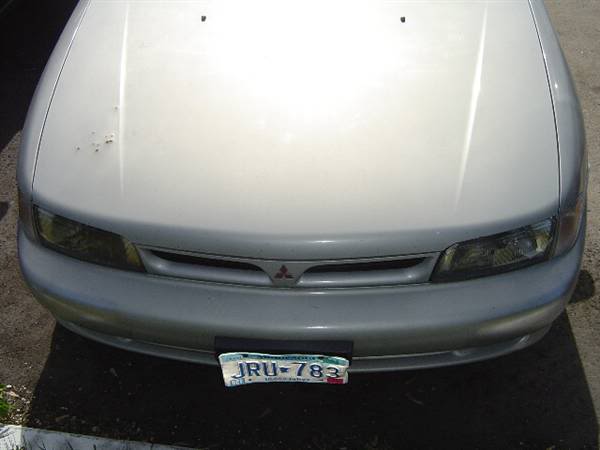

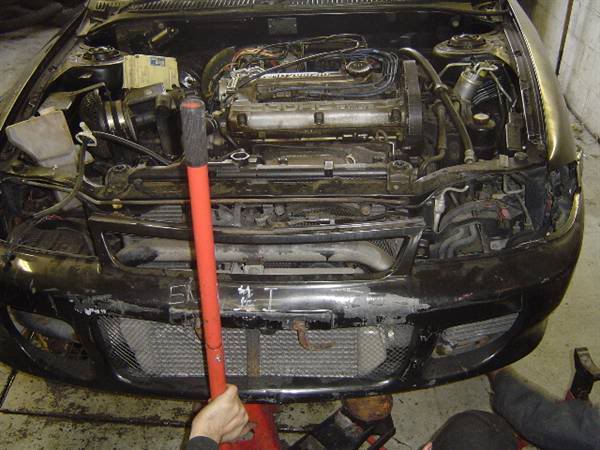

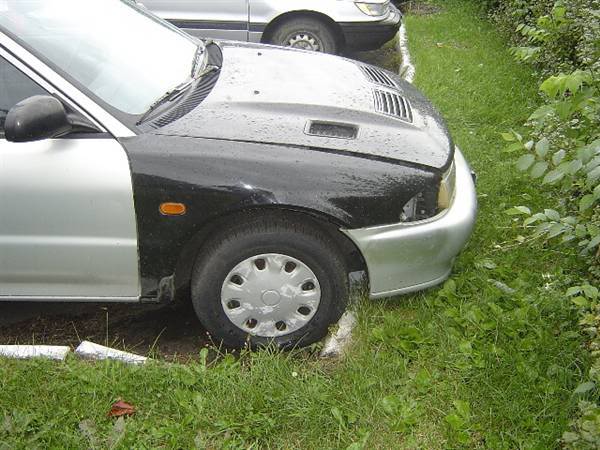

    pics when I got it

    My DSM:

    Street Build

    GT40   manual
    1998 Mitsubishi Eclipse Spyder N/T

    Street Build

    50trim   manual
    Loading...
  4. tkrPerformance

    tkrPerformance Proven Member

    579
    14
    Joined Dec 2, 2002
    plymouth, Minnesota

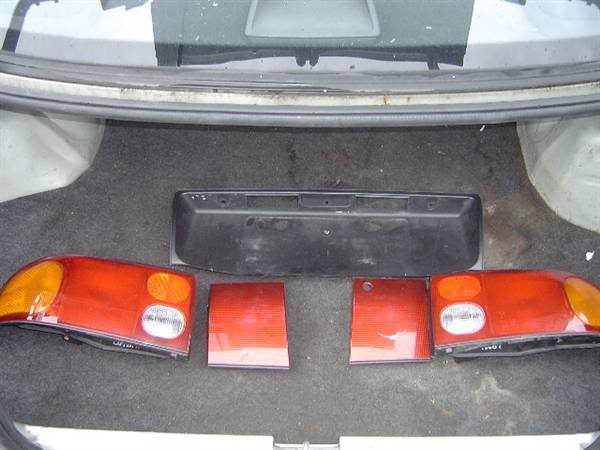

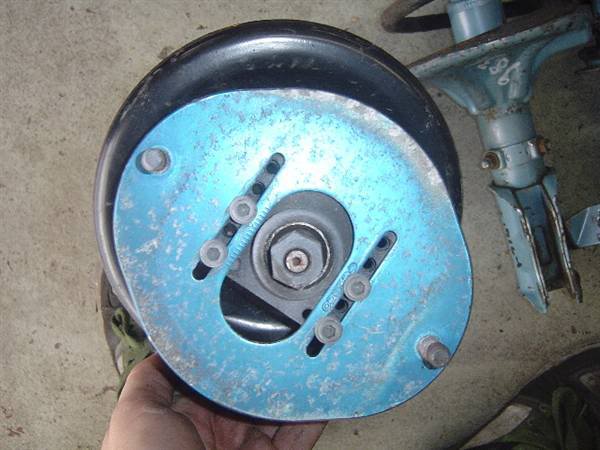

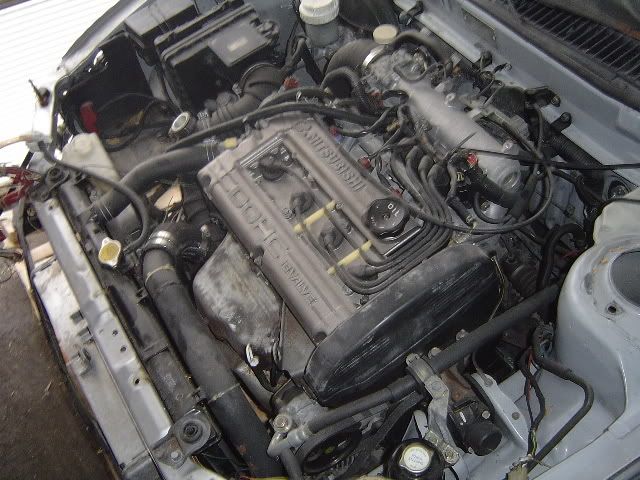

    first of the oem evo parts to come

    My DSM:

    Street Build

    GT40   manual
    1998 Mitsubishi Eclipse Spyder N/T

    Street Build

    50trim   manual
    Loading...
  5. tkrPerformance

    tkrPerformance Proven Member

    579
    14
    Joined Dec 2, 2002
    plymouth, Minnesota

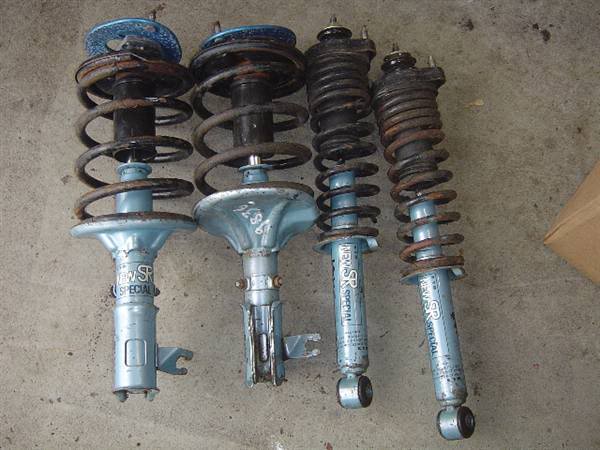

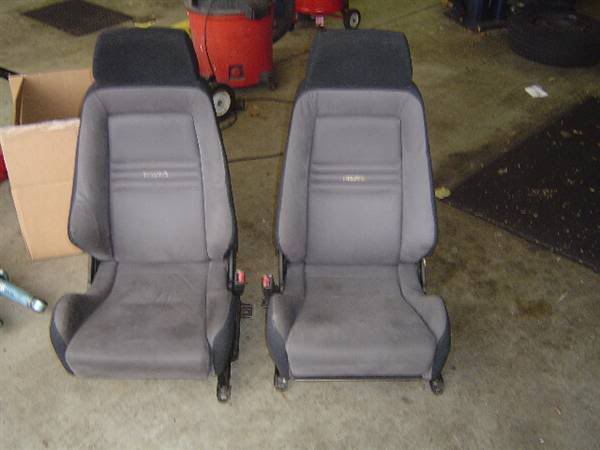

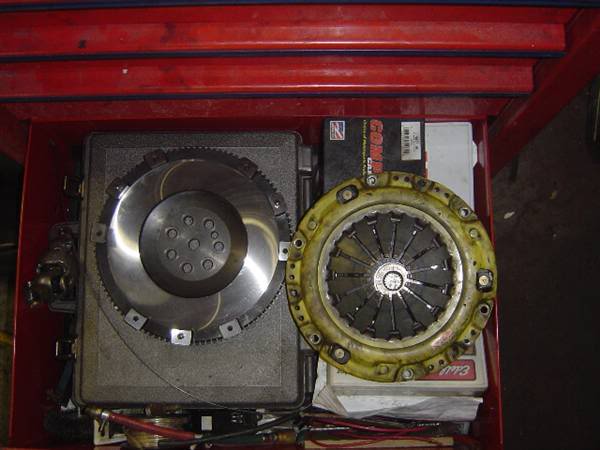

    got the front seats and suspension and the jun flywheel came back from beeing steped for the act 2900 on monday

    My DSM:

    Street Build

    GT40   manual
    1998 Mitsubishi Eclipse Spyder N/T

    Street Build

    50trim   manual
    Loading...
  6. tkrPerformance

    tkrPerformance Proven Member

    579
    14
    Joined Dec 2, 2002
    plymouth, Minnesota

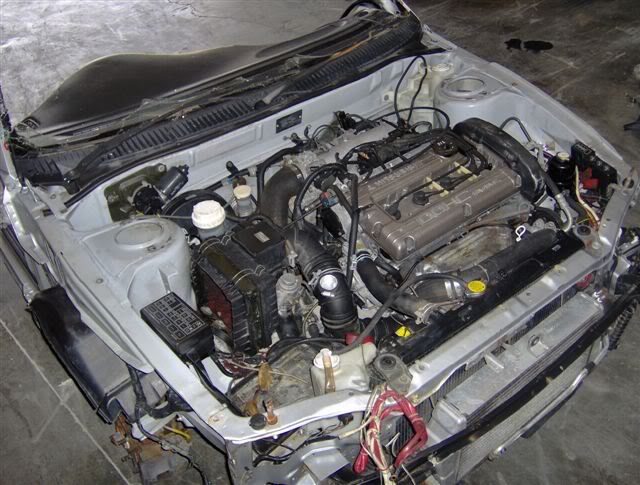

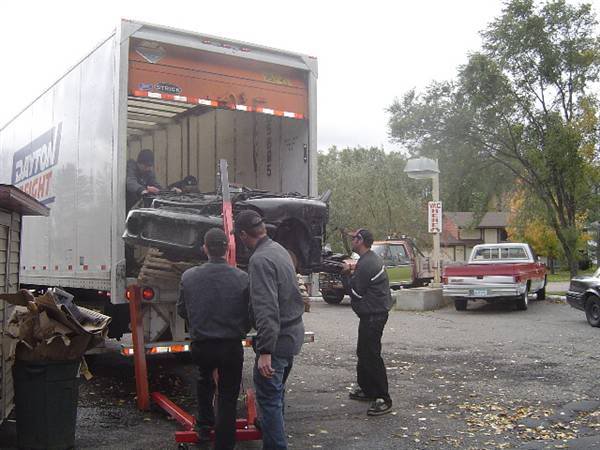

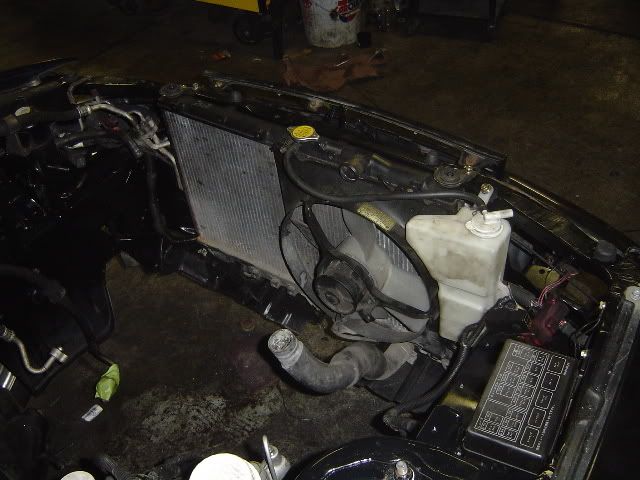

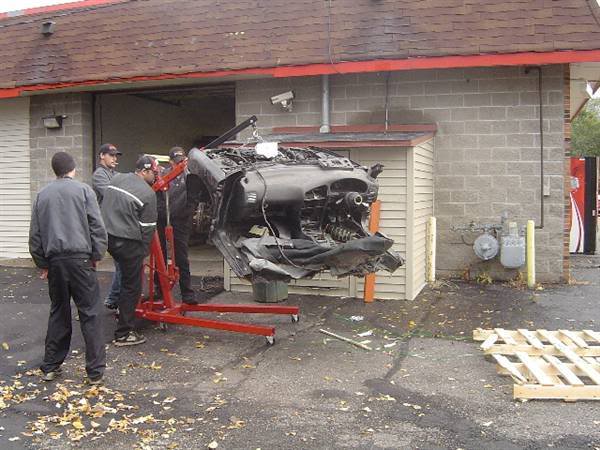

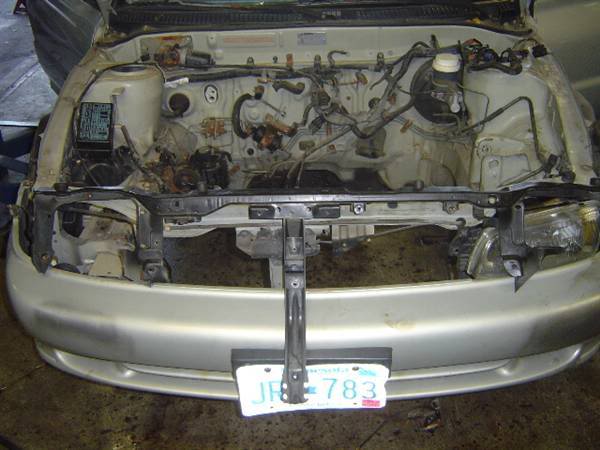

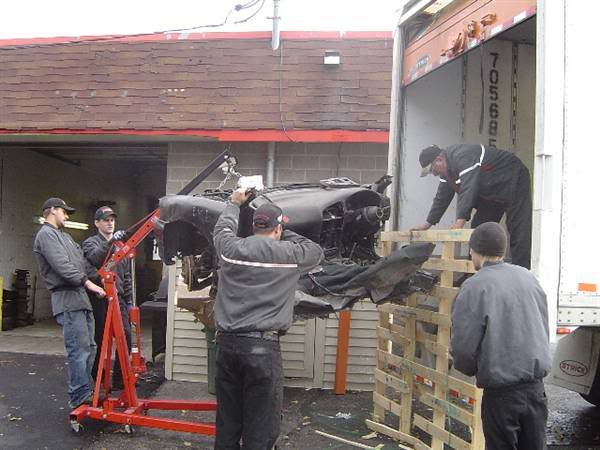

    today the 1st front clip came taking it off the truck

    My DSM:

    Street Build

    GT40   manual
    1998 Mitsubishi Eclipse Spyder N/T

    Street Build

    50trim   manual
    Loading...
  7. tkrPerformance

    tkrPerformance Proven Member

    579
    14
    Joined Dec 2, 2002
    plymouth, Minnesota

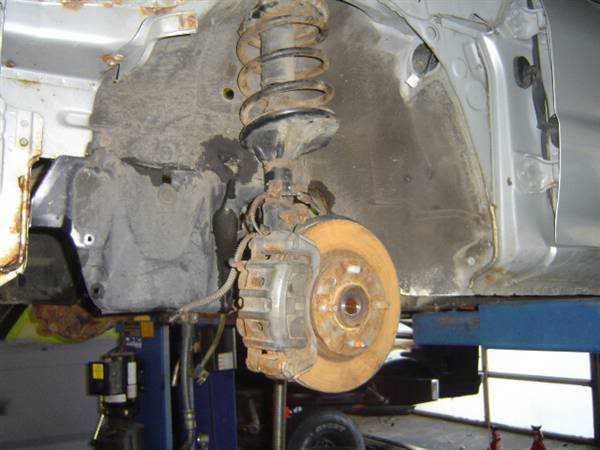

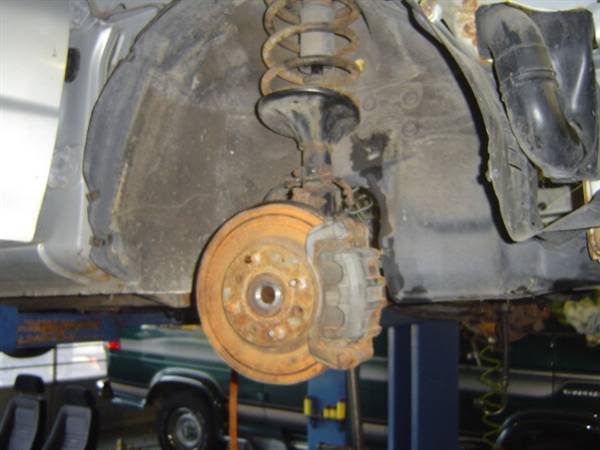

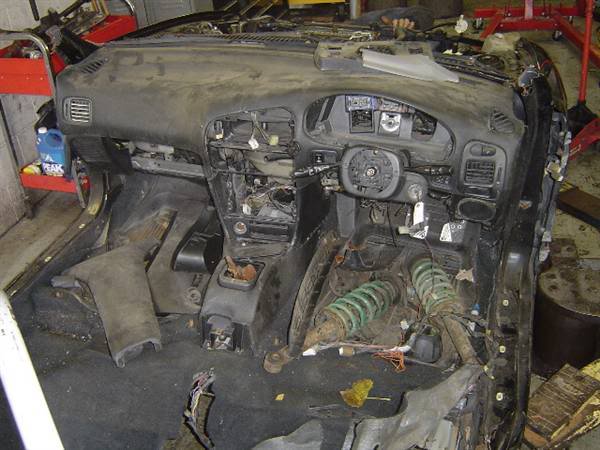

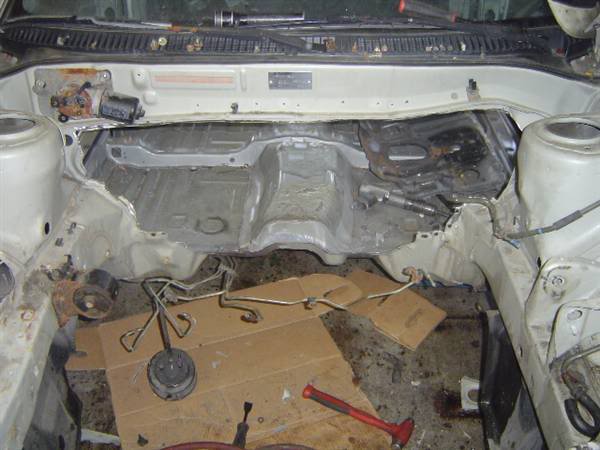

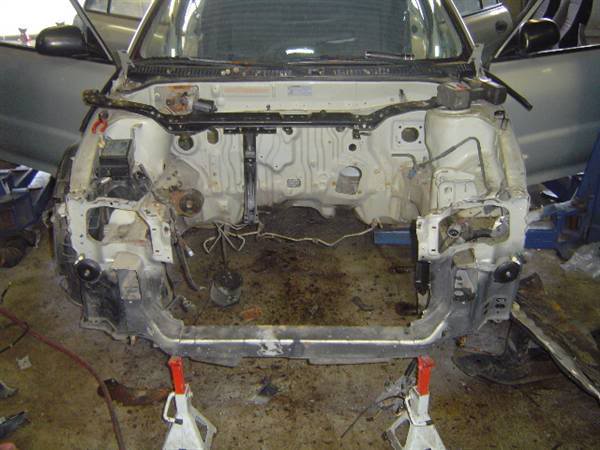

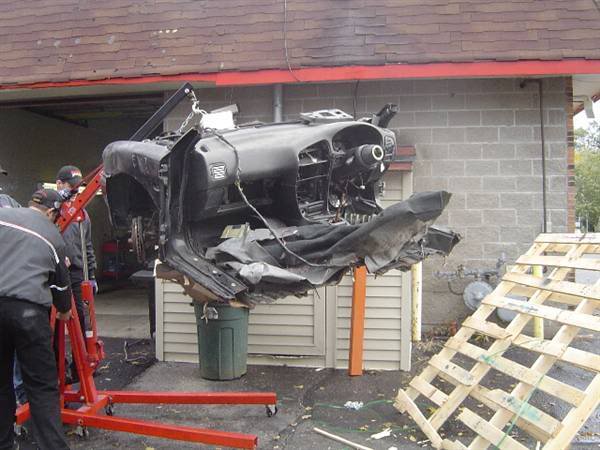

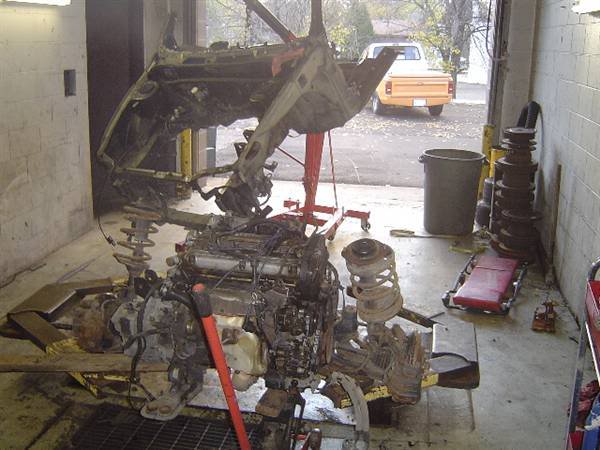

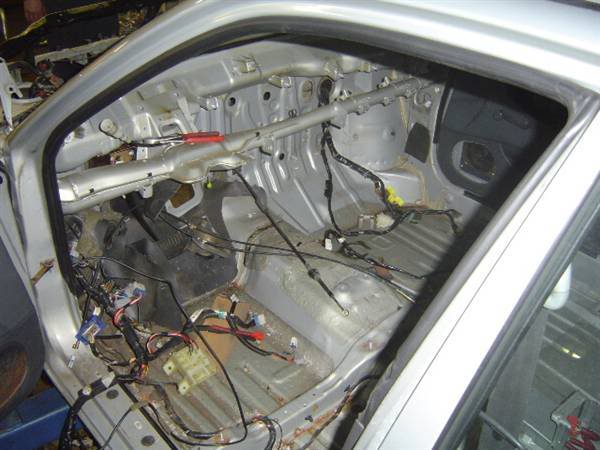

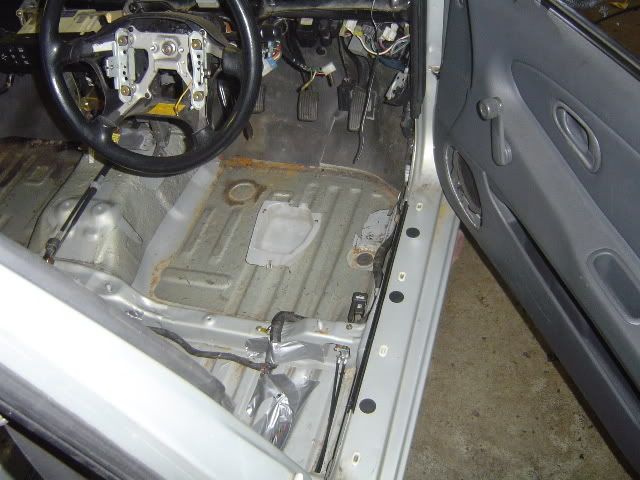

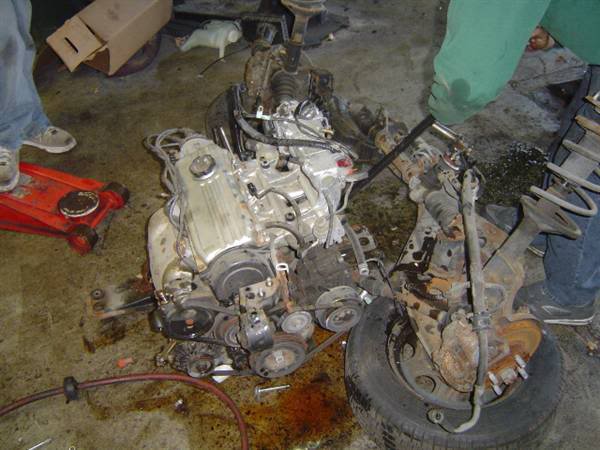

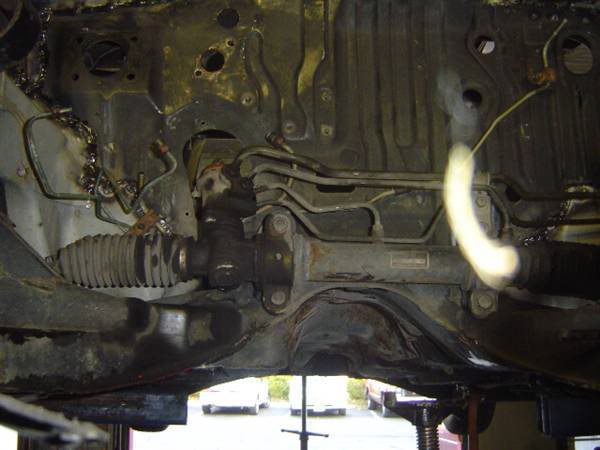

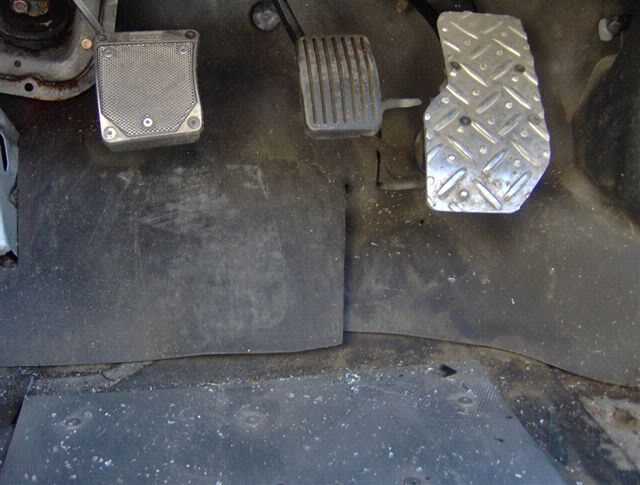

    taking it apart
    was all stripped in under 4hrs

    My DSM:

    Street Build

    GT40   manual
    1998 Mitsubishi Eclipse Spyder N/T

    Street Build

    50trim   manual
    Loading...
  8. tkrPerformance

    tkrPerformance Proven Member

    579
    14
    Joined Dec 2, 2002
    plymouth, Minnesota

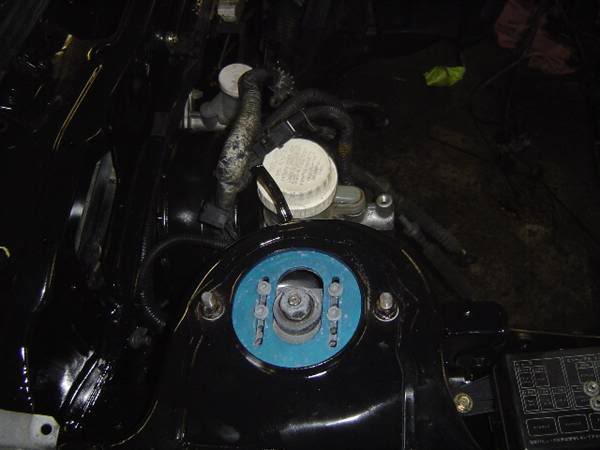

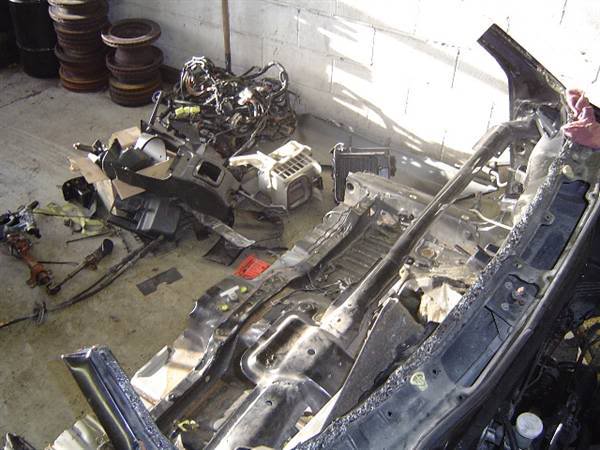

    pics from today

    My DSM:

    Street Build

    GT40   manual
    1998 Mitsubishi Eclipse Spyder N/T

    Street Build

    50trim   manual
    Loading...
  9. tkrPerformance

    tkrPerformance Proven Member

    579
    14
    Joined Dec 2, 2002
    plymouth, Minnesota
    today

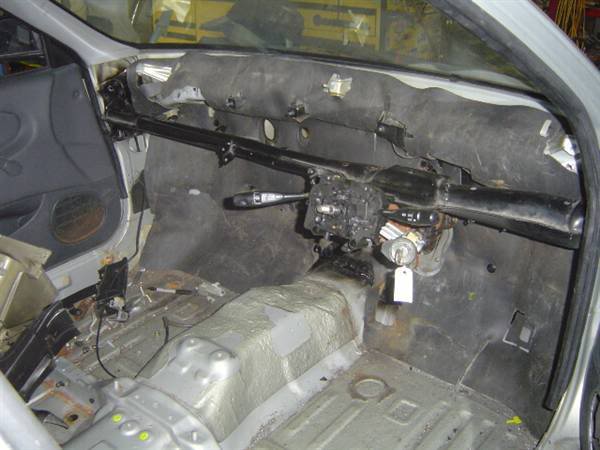

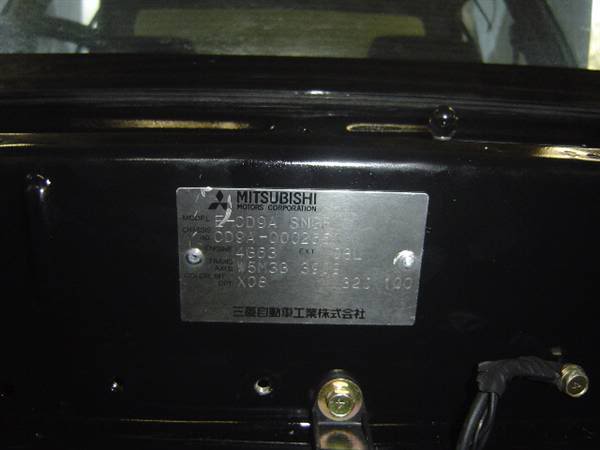

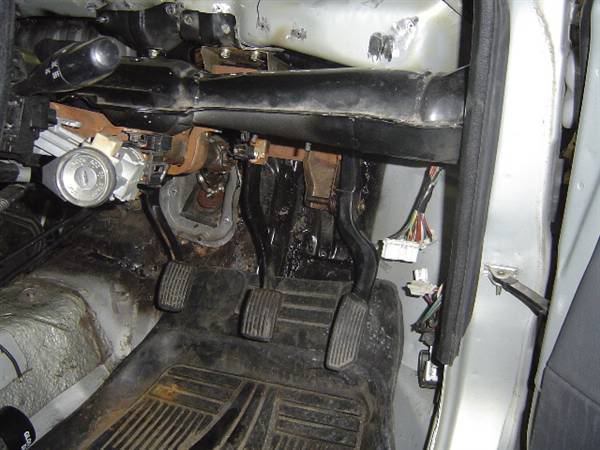

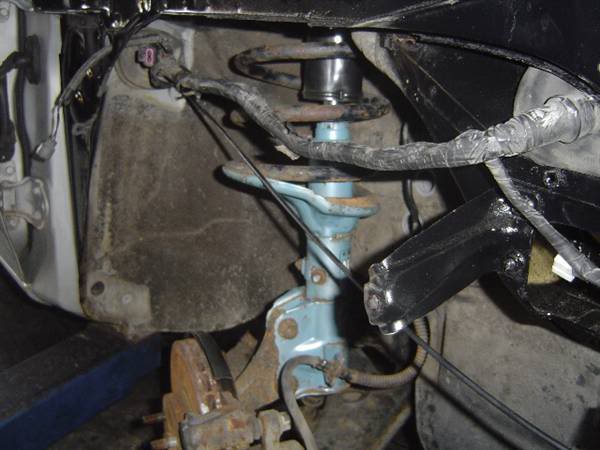

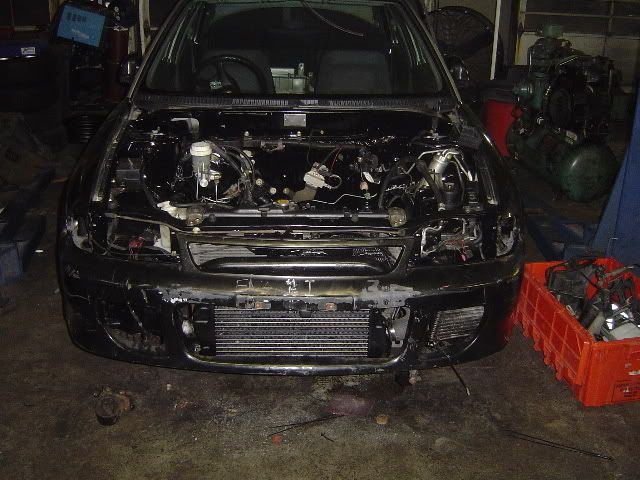

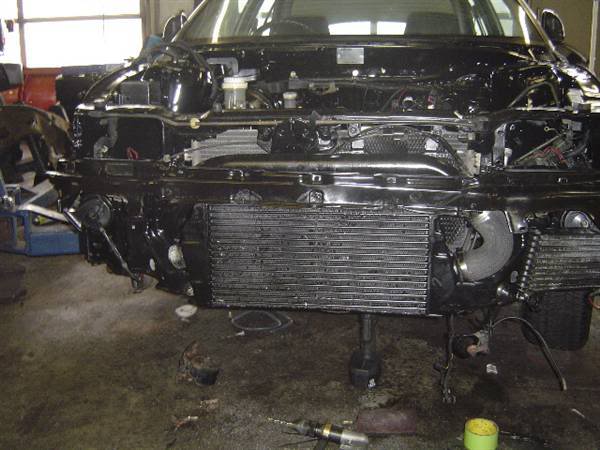

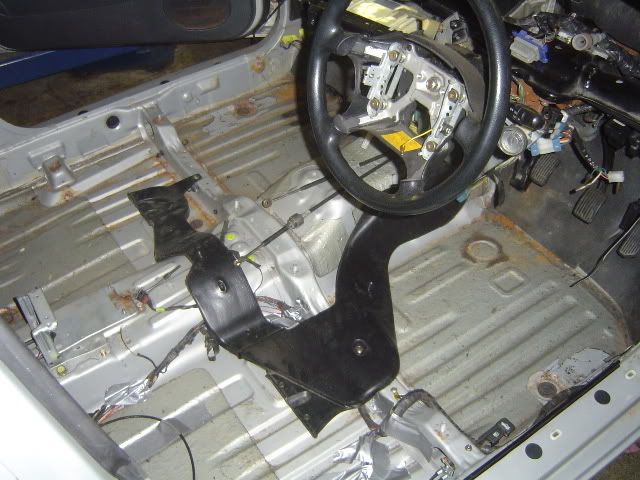

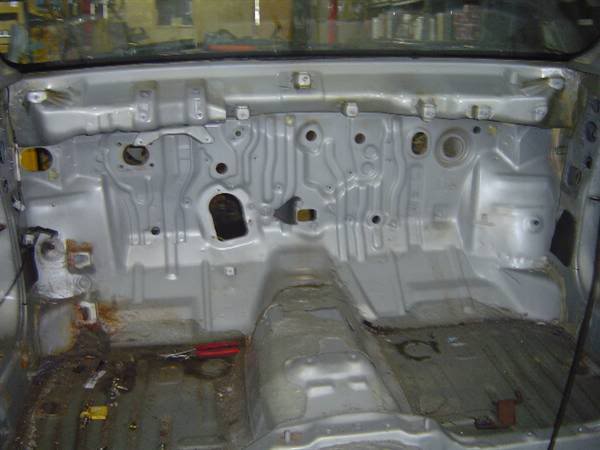

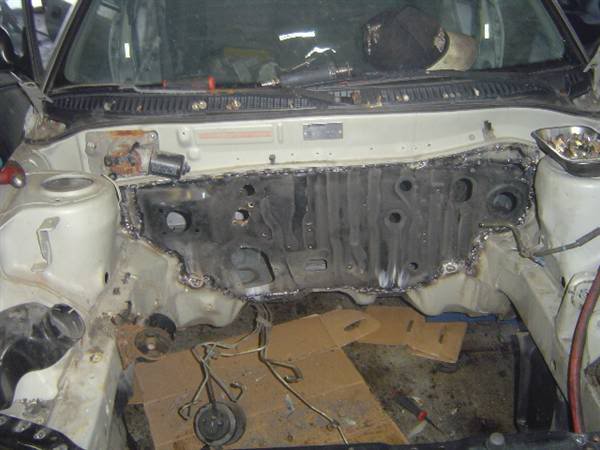

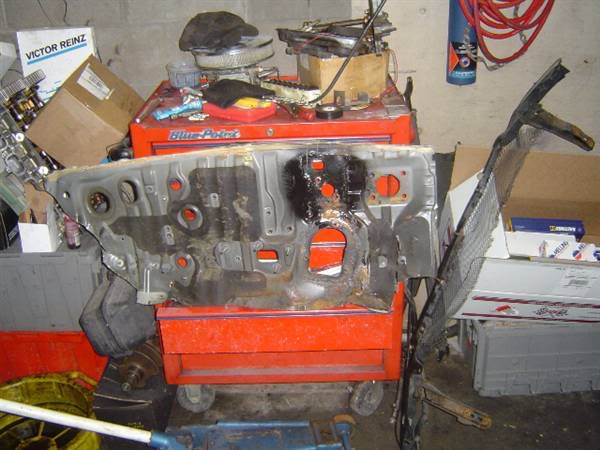

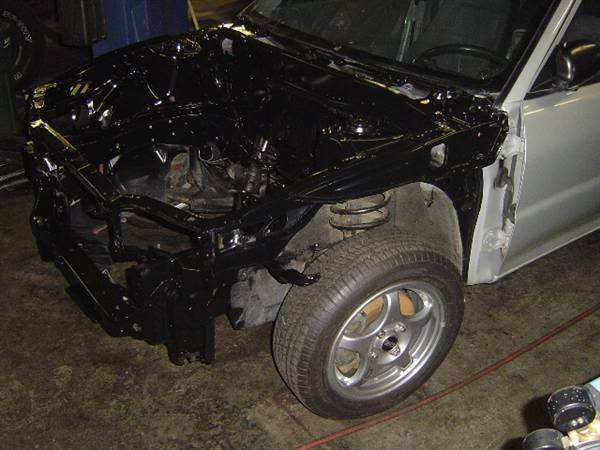

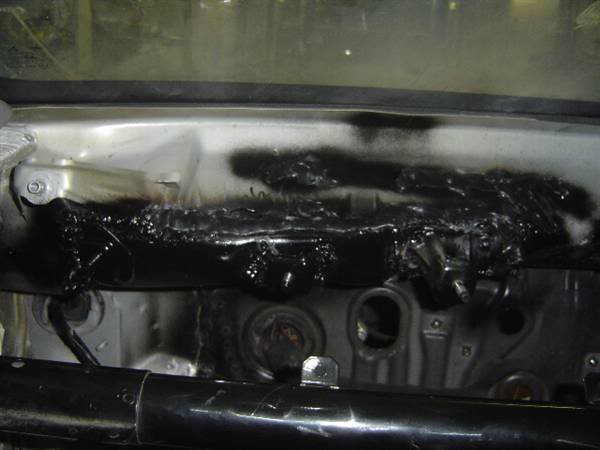

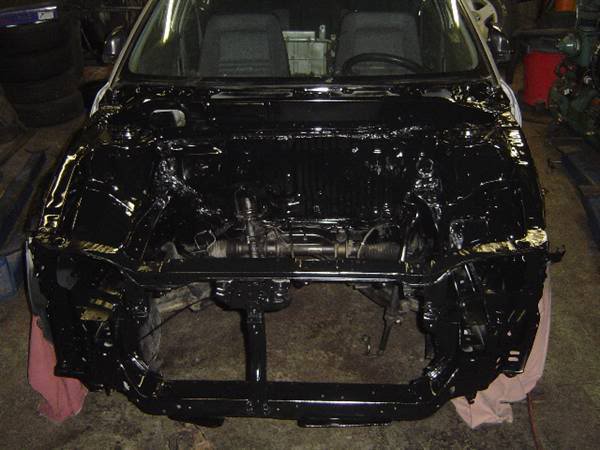

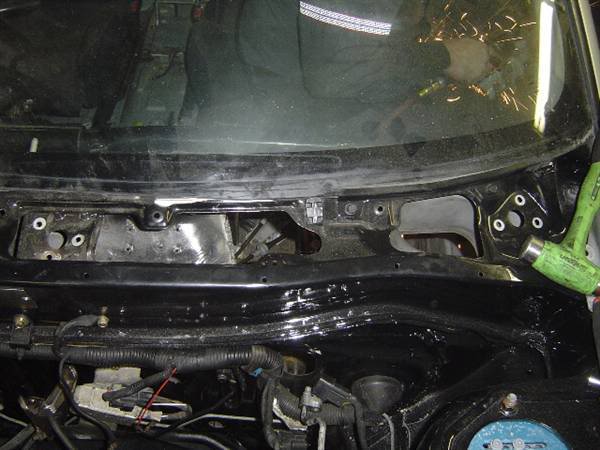

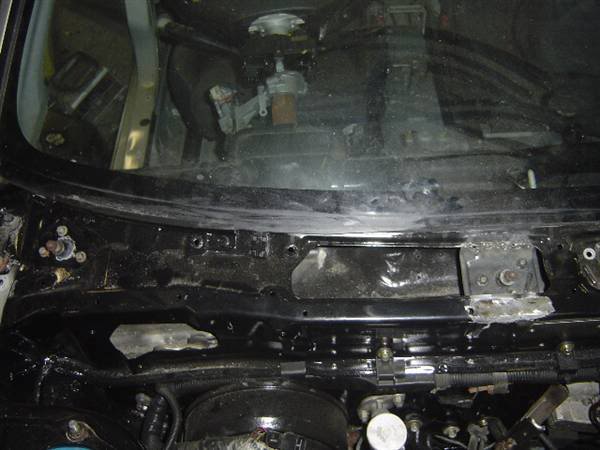

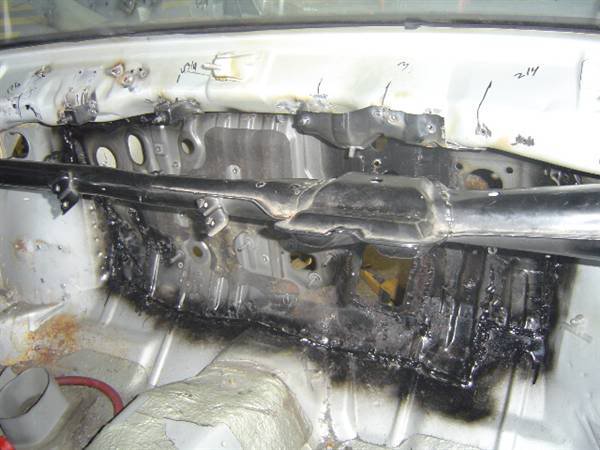

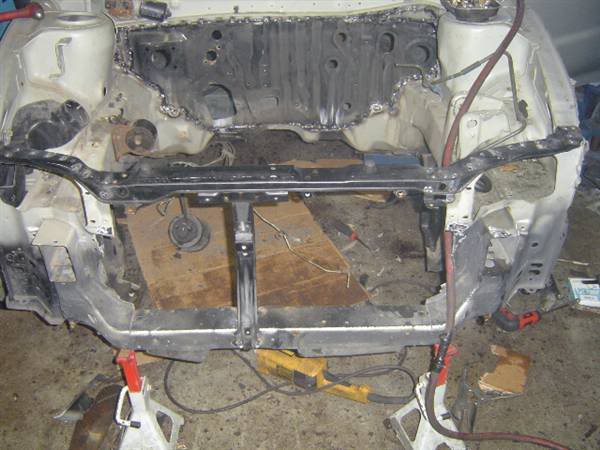

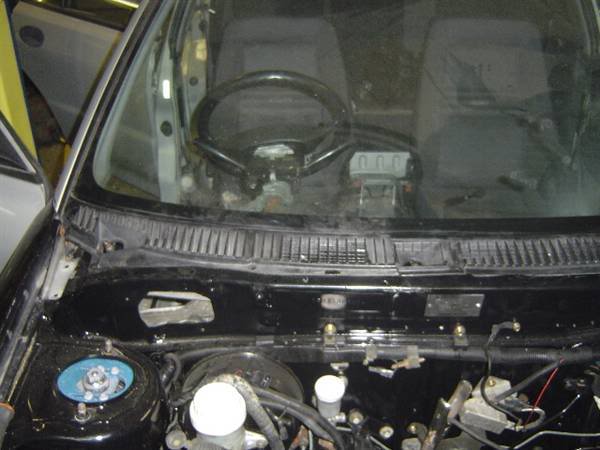

    we got the evo fire wall in and seam sealed,dash bar,front K-member



    My DSM:

    Street Build

    GT40   manual
    1998 Mitsubishi Eclipse Spyder N/T

    Street Build

    50trim   manual
    Loading...
  10. tkrPerformance

    tkrPerformance Proven Member

    579
    14
    Joined Dec 2, 2002
    plymouth, Minnesota

    My DSM:

    Street Build

    GT40   manual
    1998 Mitsubishi Eclipse Spyder N/T

    Street Build

    50trim   manual
    Loading...
  11. tkrPerformance

    tkrPerformance Proven Member

    579
    14
    Joined Dec 2, 2002
    plymouth, Minnesota

    My DSM:

    Street Build

    GT40   manual
    1998 Mitsubishi Eclipse Spyder N/T

    Street Build

    50trim   manual
    Loading...
  12. tkrPerformance

    tkrPerformance Proven Member

    579
    14
    Joined Dec 2, 2002
    plymouth, Minnesota

    My DSM:

    Street Build

    GT40   manual
    1998 Mitsubishi Eclipse Spyder N/T

    Street Build

    50trim   manual
    Loading...
  13. tkrPerformance

    tkrPerformance Proven Member

    579
    14
    Joined Dec 2, 2002
    plymouth, Minnesota

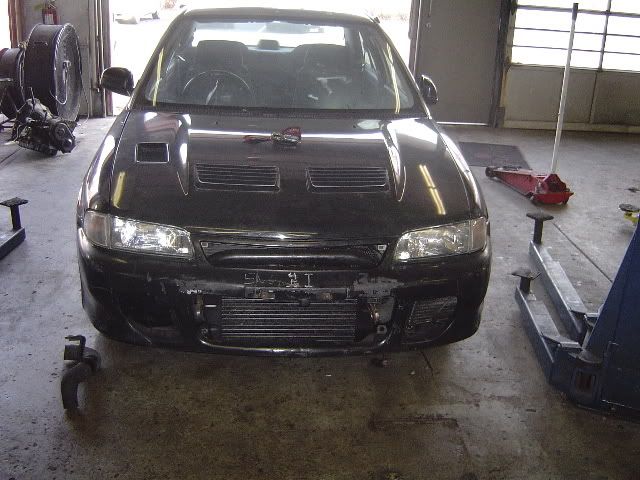

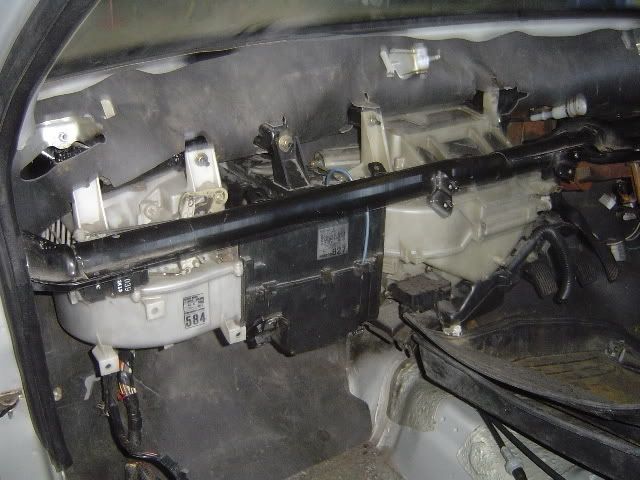

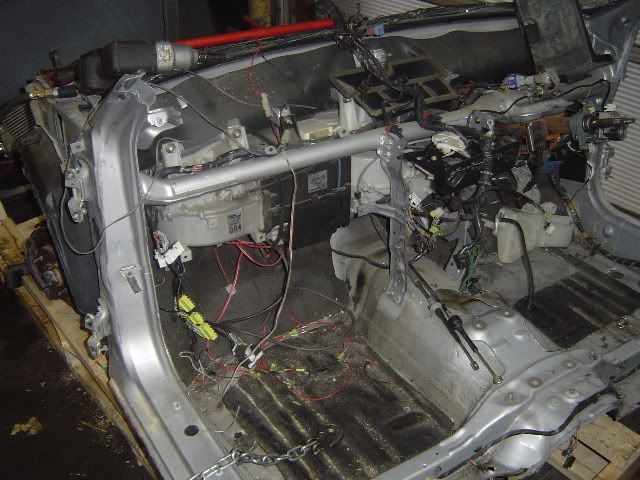

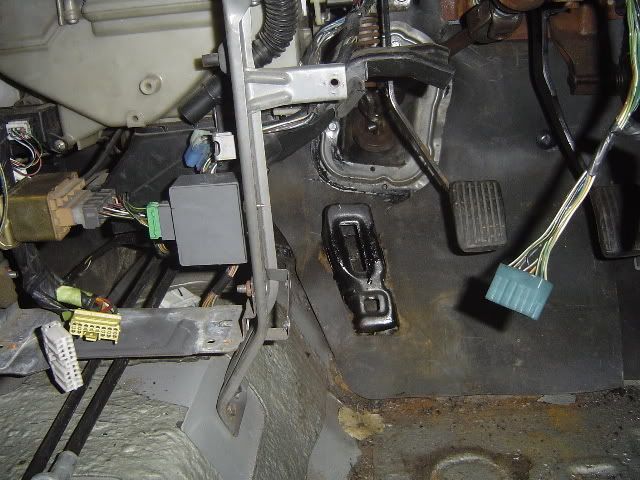

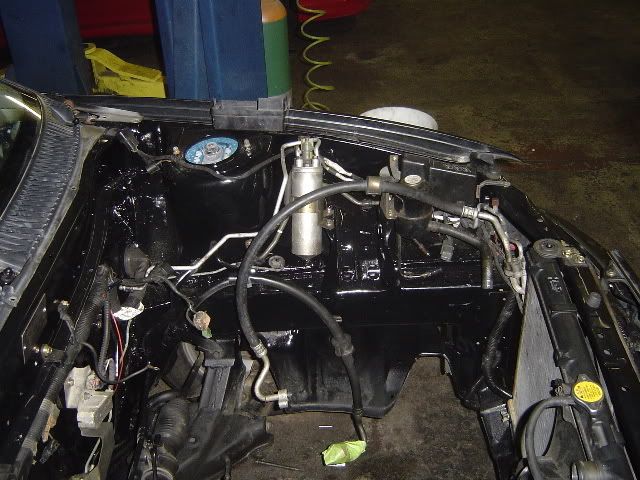

    heater boxs are all in,gas door non key,cables for the gas door and trunk wires are in,all the front light's,a/c lines,heater core hoses,tails

    My DSM:

    Street Build

    GT40   manual
    1998 Mitsubishi Eclipse Spyder N/T

    Street Build

    50trim   manual
    Loading...
  14. tkrPerformance

    tkrPerformance Proven Member

    579
    14
    Joined Dec 2, 2002
    plymouth, Minnesota

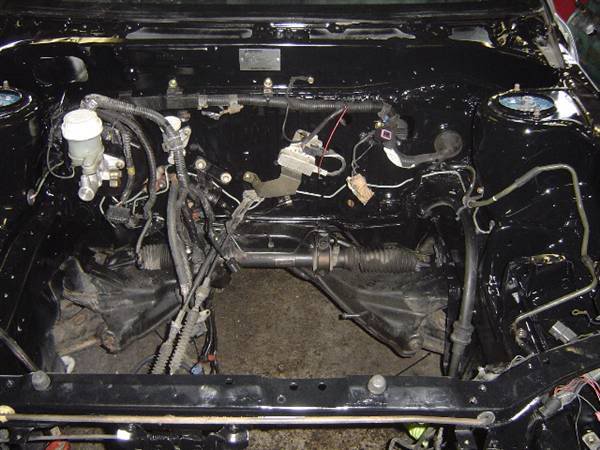

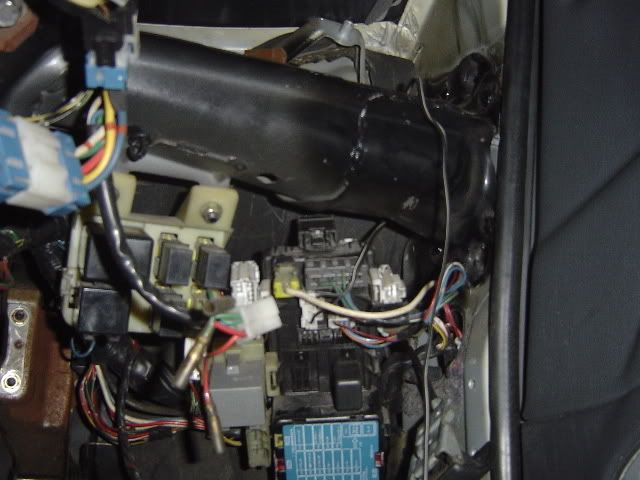

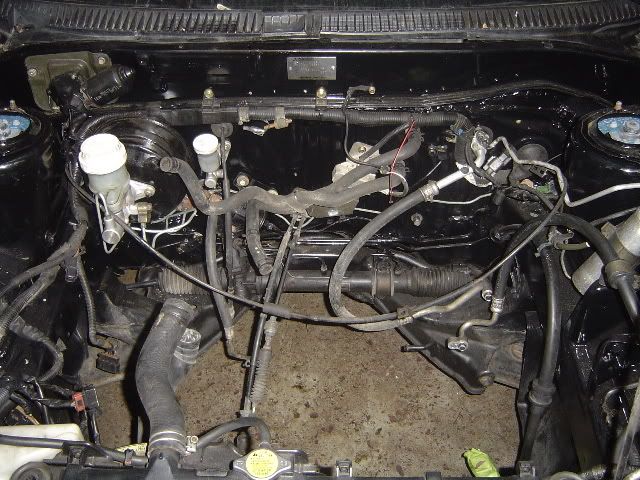

    dash harness is in,foot rest is welded in,heater control is hooked up,rear heater tubes are in,levers for the gas and trunk are in

    My DSM:

    Street Build

    GT40   manual
    1998 Mitsubishi Eclipse Spyder N/T

    Street Build

    50trim   manual
    Loading...
  15. tkrPerformance

    tkrPerformance Proven Member

    579
    14
    Joined Dec 2, 2002
    plymouth, Minnesota

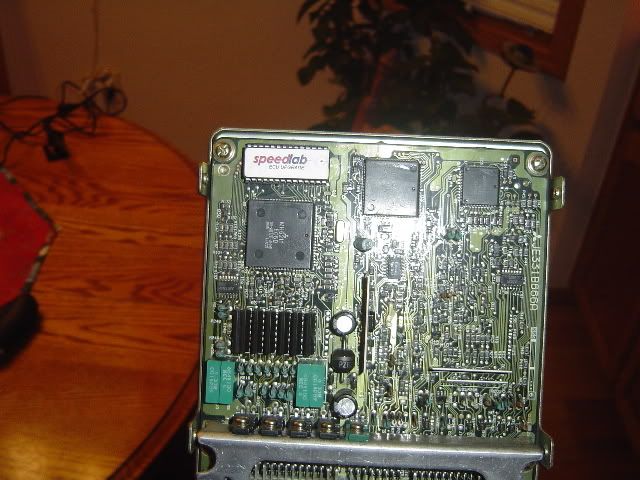

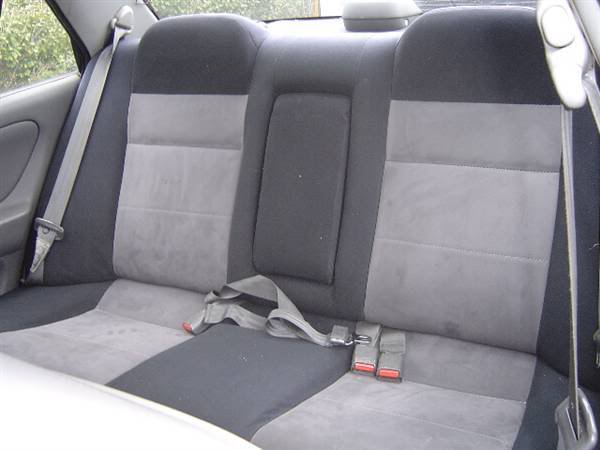

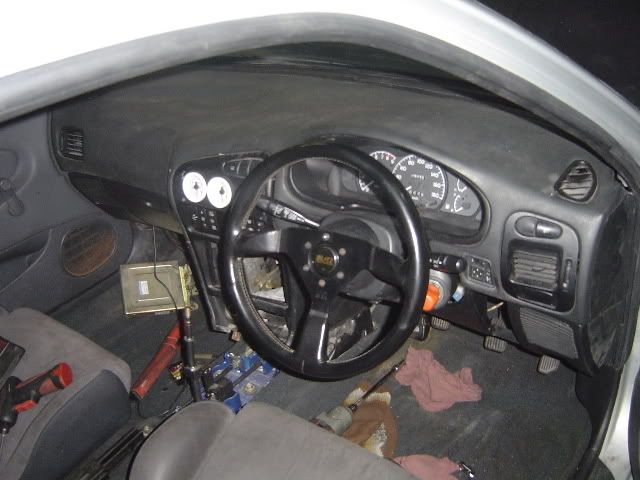

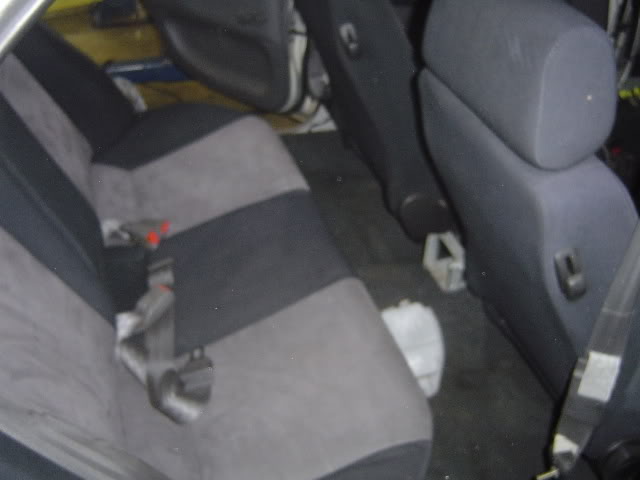

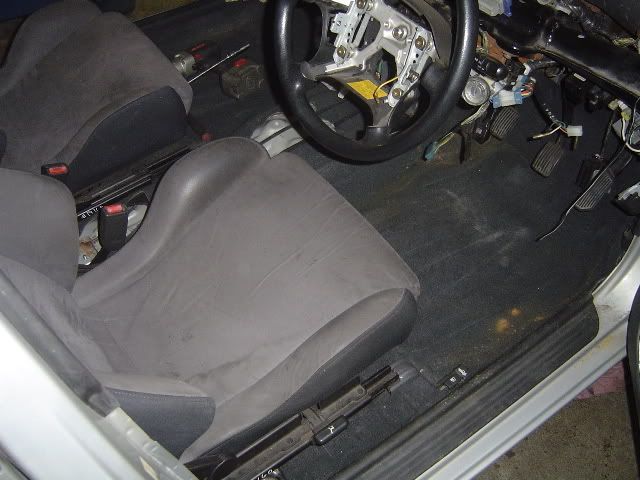

    evo body harness,evo carpet is in the seats are in for the final time,I put in the speedlab chip (no fuel cut,no speed cut,8500 rpm,18psi) now has a dsmchips chip till evo 1-3 dsmlink comes out soon

    My DSM:

    Street Build

    GT40   manual
    1998 Mitsubishi Eclipse Spyder N/T

    Street Build

    50trim   manual
    Loading...
  16. tkrPerformance

    tkrPerformance Proven Member

    579
    14
    Joined Dec 2, 2002
    plymouth, Minnesota

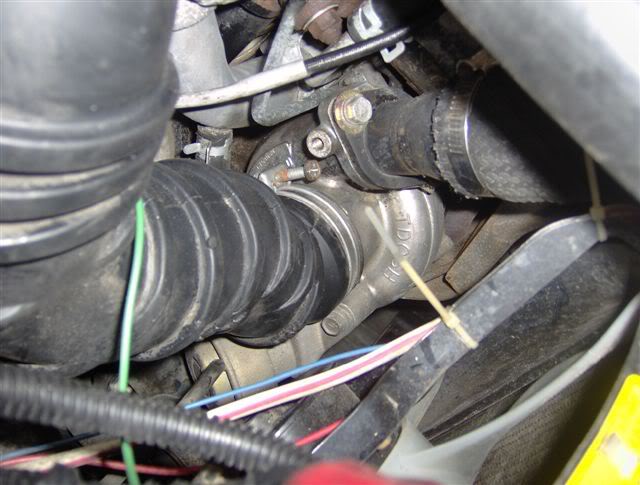

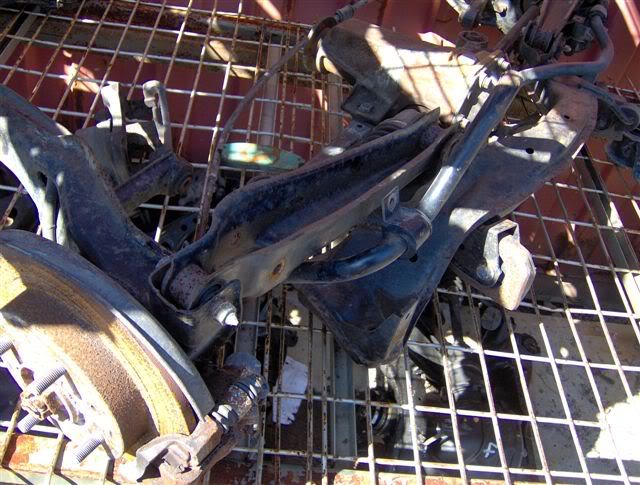

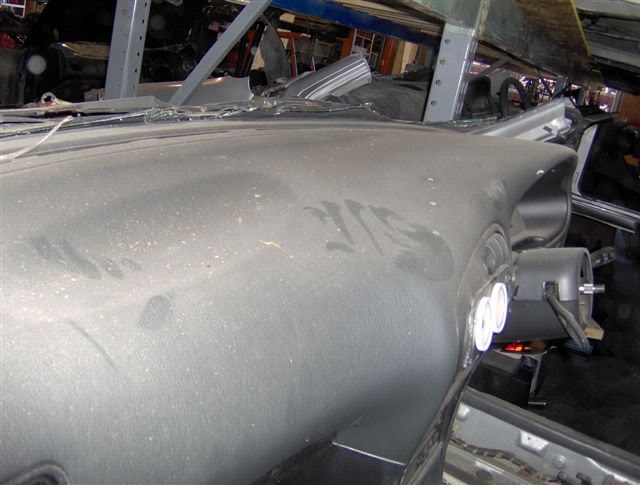

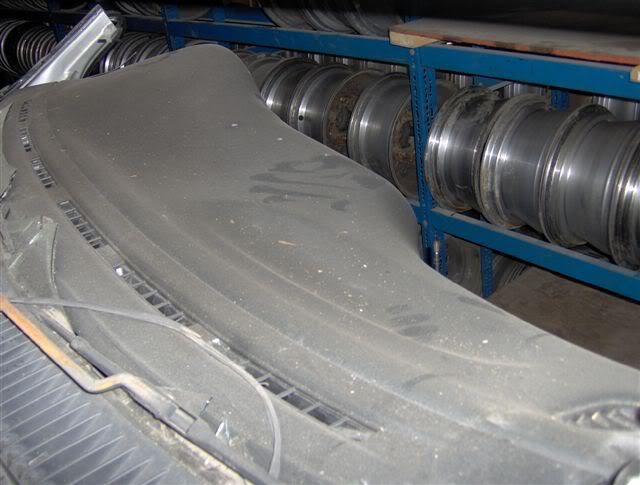

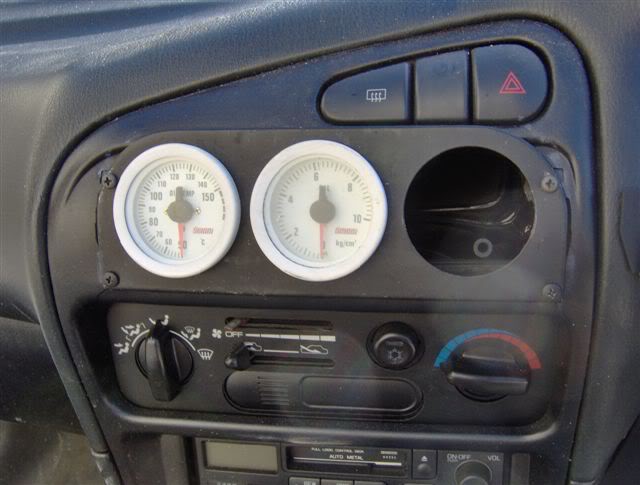

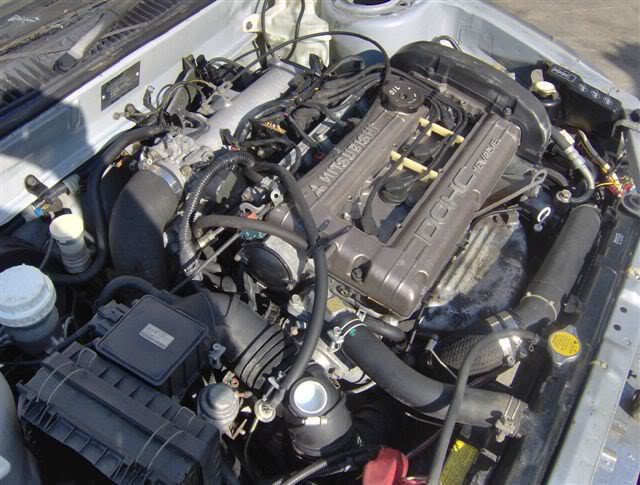

    here are the pics from jarco on the new clip and other parts

    My DSM:

    Street Build

    GT40   manual
    1998 Mitsubishi Eclipse Spyder N/T

    Street Build

    50trim   manual
    Loading...
  17. tkrPerformance

    tkrPerformance Proven Member

    579
    14
    Joined Dec 2, 2002
    plymouth, Minnesota
    more

    My DSM:

    Street Build

    GT40   manual
    1998 Mitsubishi Eclipse Spyder N/T

    Street Build

    50trim   manual
    Loading...
  18. tkrPerformance

    tkrPerformance Proven Member

    579
    14
    Joined Dec 2, 2002
    plymouth, Minnesota

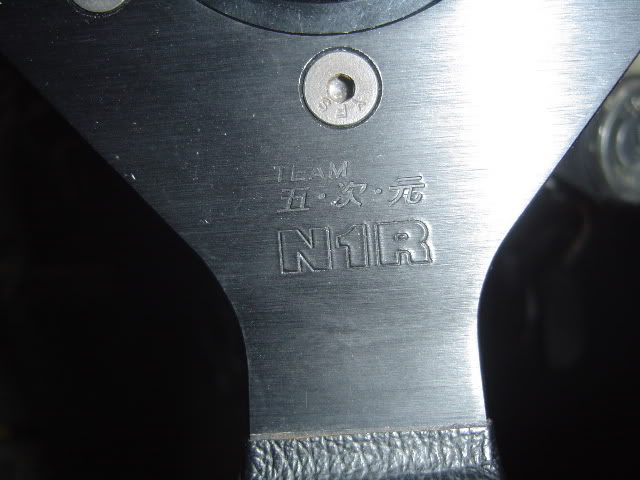

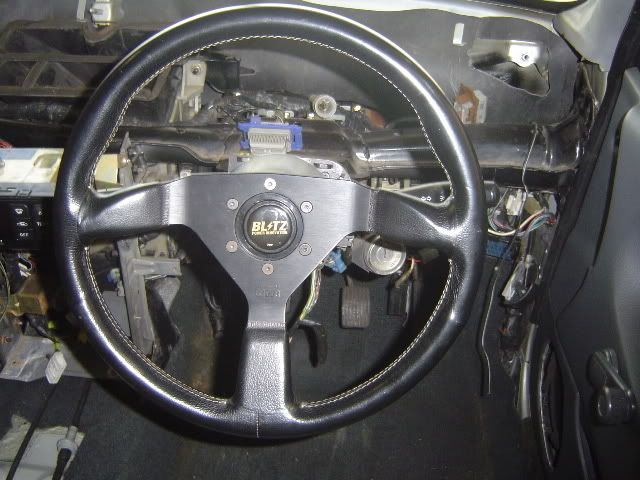

    pics of the 5zigen stering wheel that came from japan the guy also sent me a real blitz horn button

    My DSM:

    Street Build

    GT40   manual
    1998 Mitsubishi Eclipse Spyder N/T

    Street Build

    50trim   manual
    Loading...
  19. tkrPerformance

    tkrPerformance Proven Member

    579
    14
    Joined Dec 2, 2002
    plymouth, Minnesota

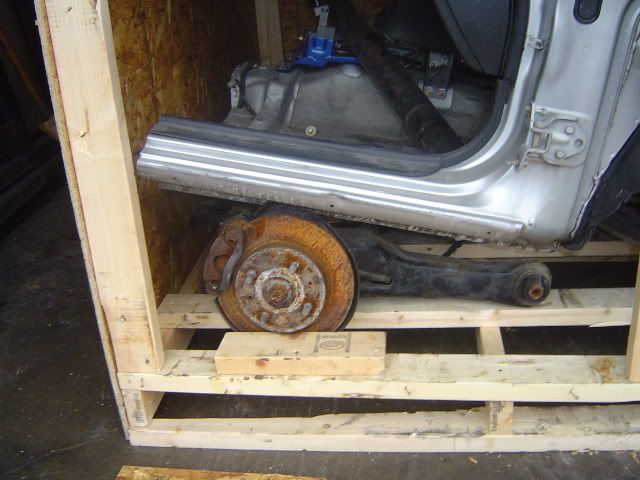

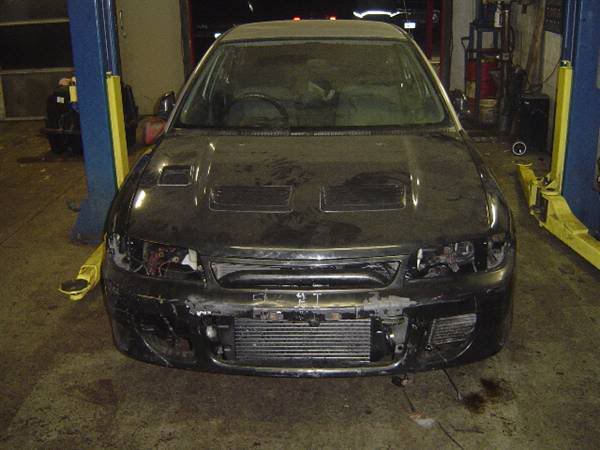

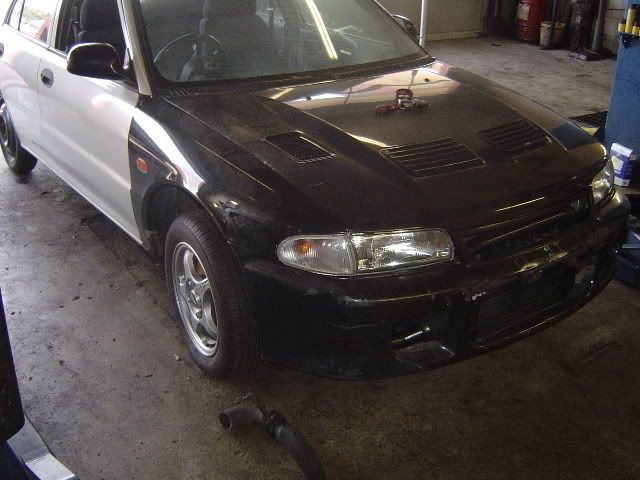

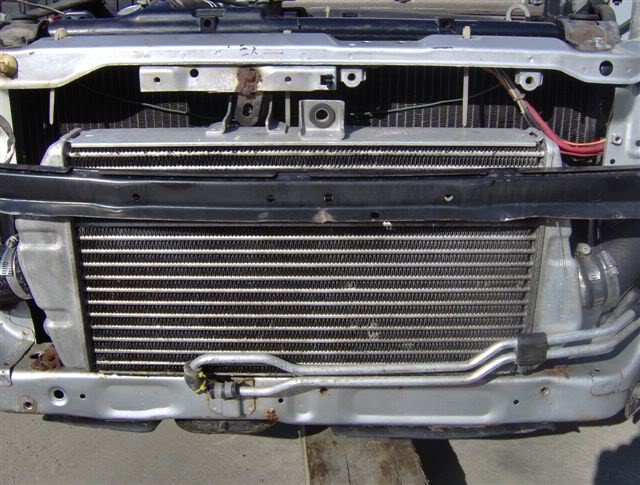

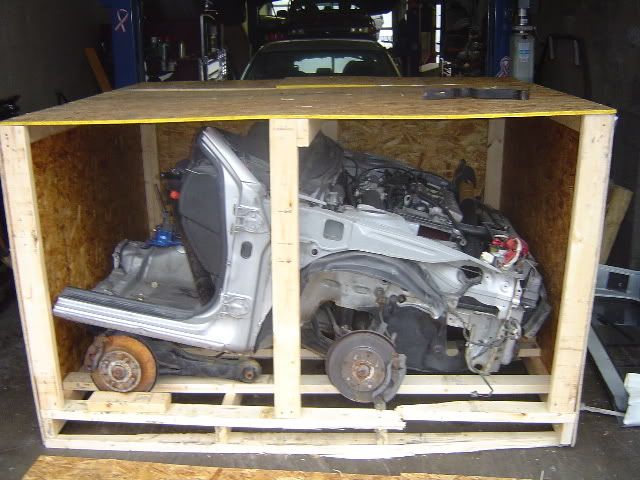

    the front clip came to day
    we were safer taking this one off. we had one of are accounts come up with ther flat bed and take it off the semi and drop in the shop.

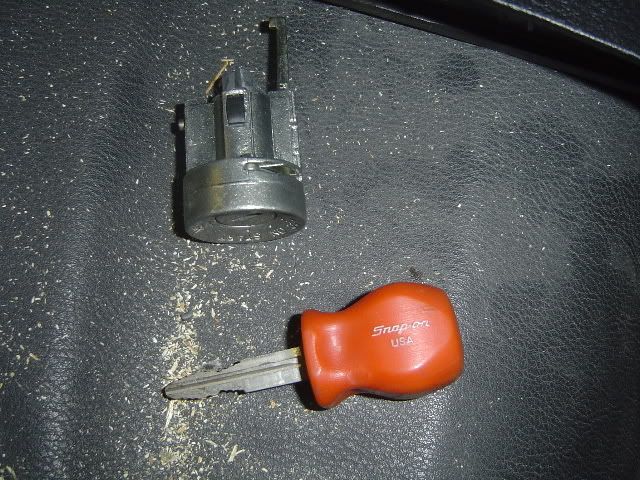

    this clip came with a snap-on key

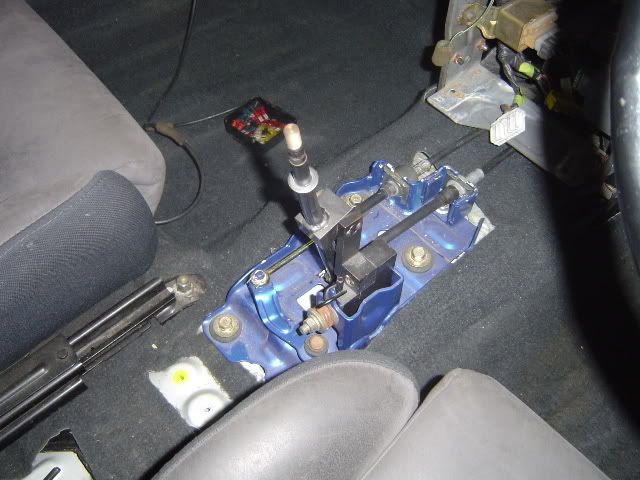

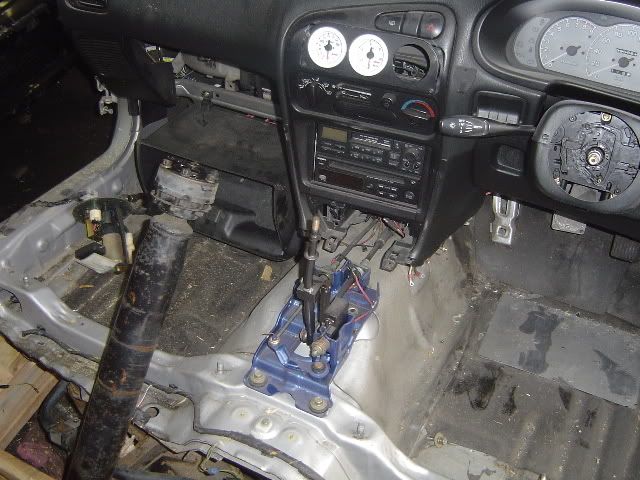

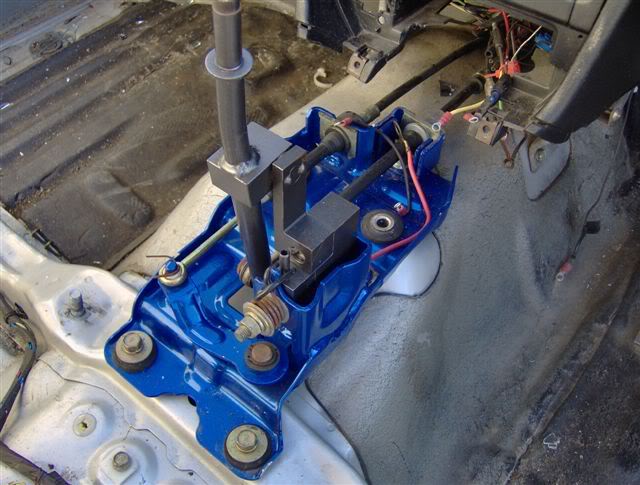

    got the hks short shifter in my car

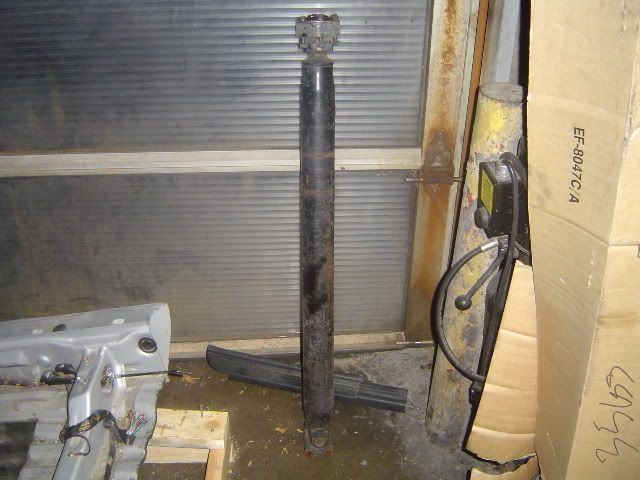

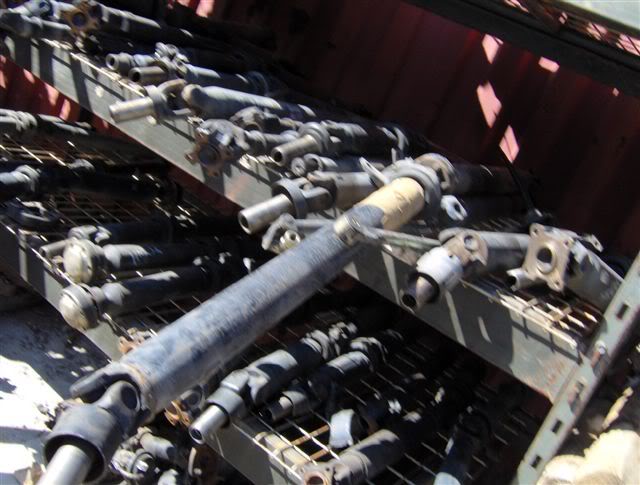

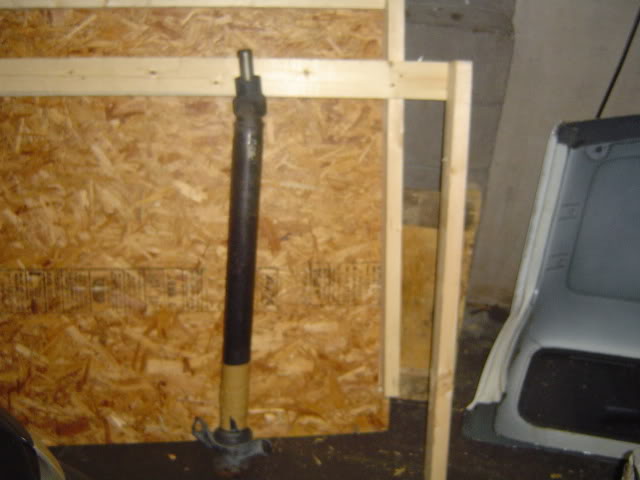

    the drive shaft just have to bolt it back together

    My DSM:

    Street Build

    GT40   manual
    1998 Mitsubishi Eclipse Spyder N/T

    Street Build

    50trim   manual
    Loading...
  20. tkrPerformance

    tkrPerformance Proven Member

    579
    14
    Joined Dec 2, 2002
    plymouth, Minnesota
    got some more done to the car and the clip

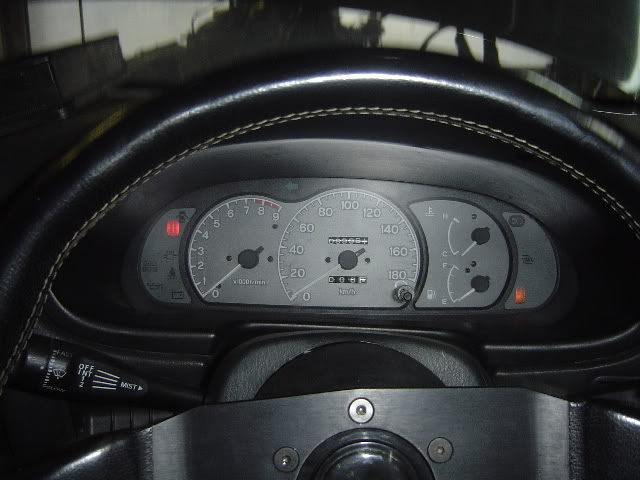

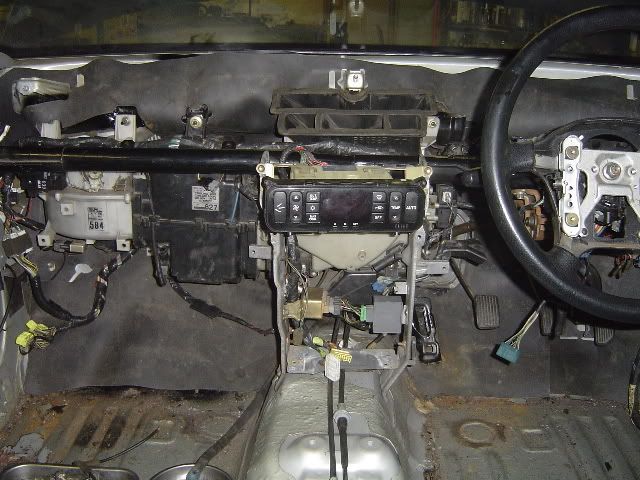

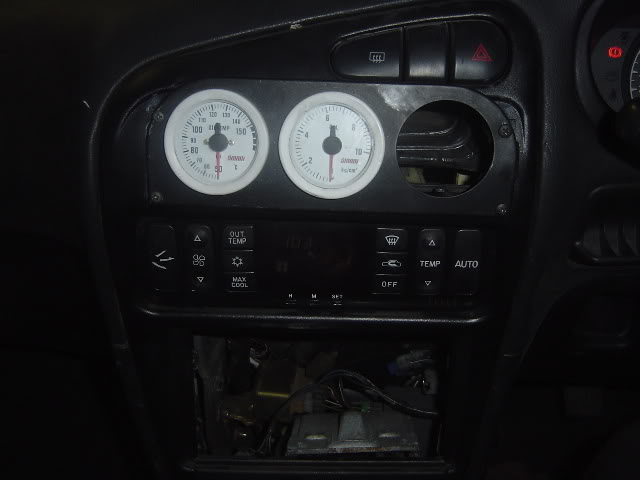

    dash is in the electronic heater and a/c controler works

    My DSM:

    Street Build

    GT40   manual
    1998 Mitsubishi Eclipse Spyder N/T

    Street Build

    50trim   manual
    Loading...
  21. tkrPerformance

    tkrPerformance Proven Member

    579
    14
    Joined Dec 2, 2002
    plymouth, Minnesota
    got parts off the 2nd clip,also stared on the awd swap

    My DSM:

    Street Build

    GT40   manual
    1998 Mitsubishi Eclipse Spyder N/T

    Street Build

    50trim   manual
    Loading...
  22. tkrPerformance

    tkrPerformance Proven Member

    579
    14
    Joined Dec 2, 2002
    plymouth, Minnesota

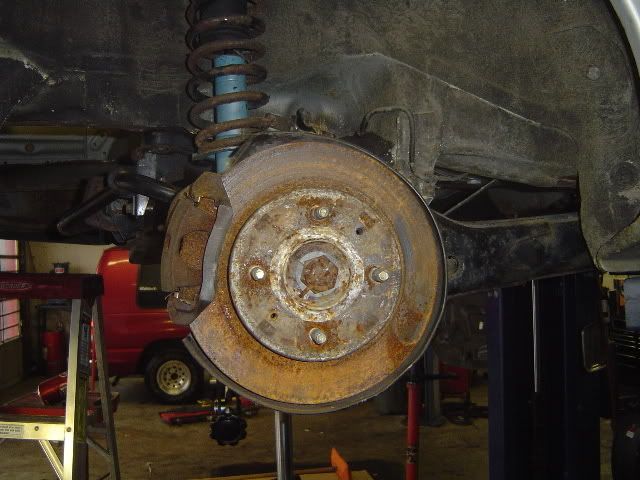

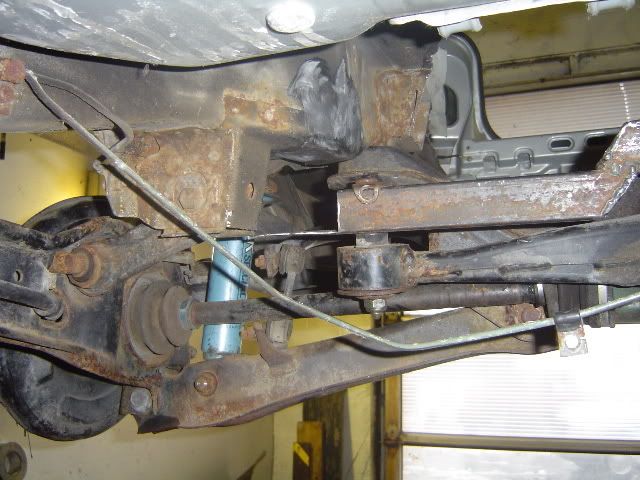

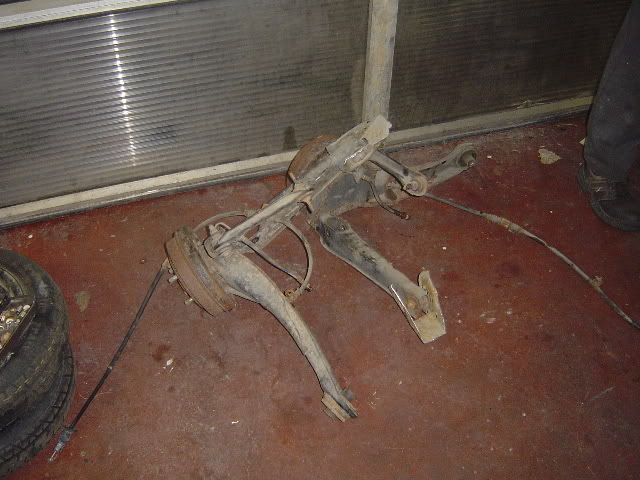

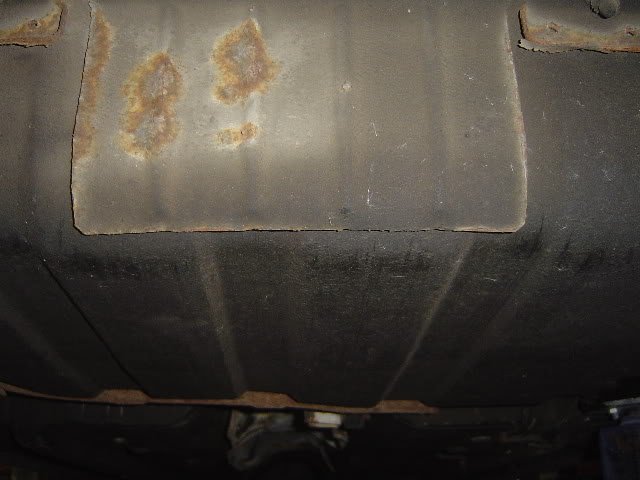

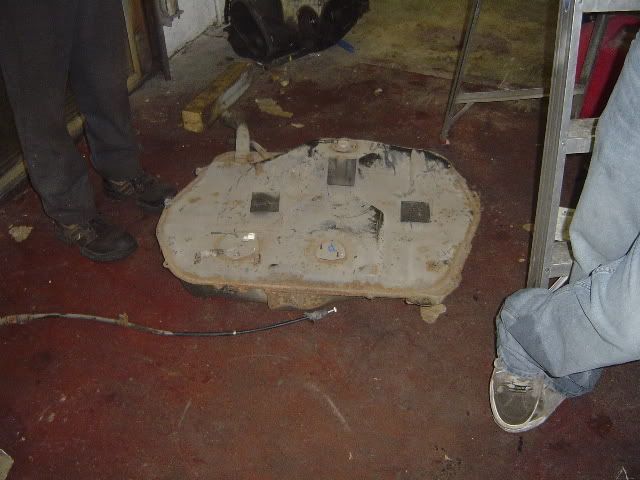

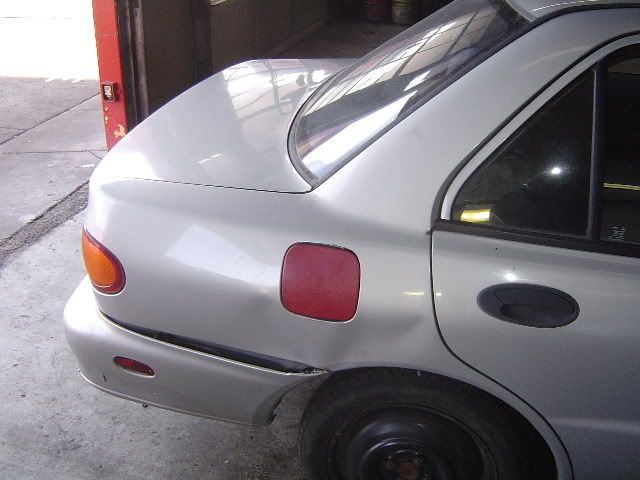

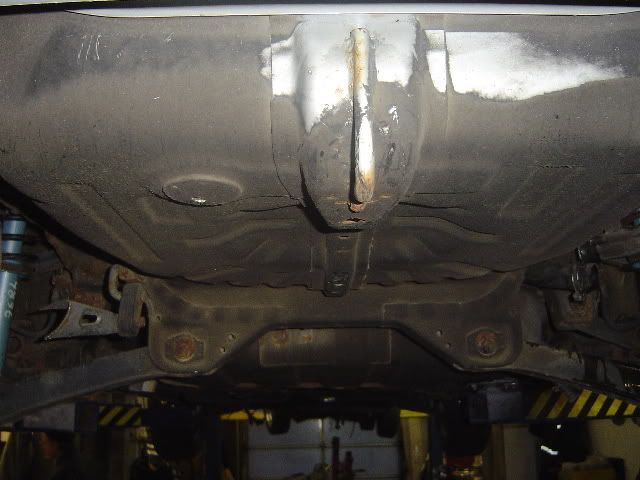

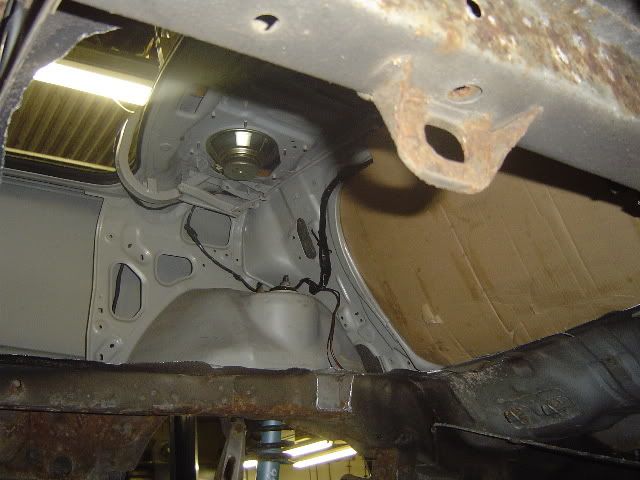

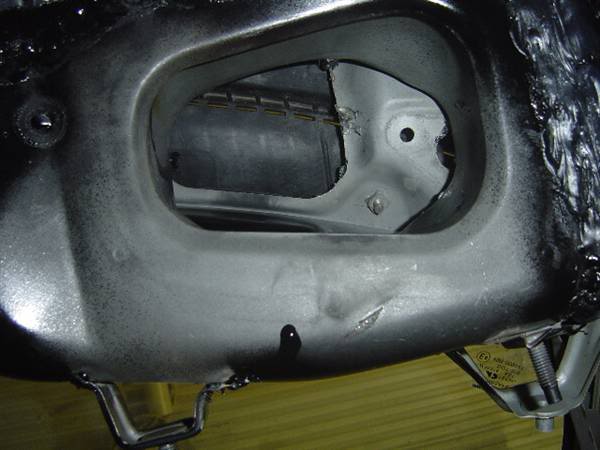

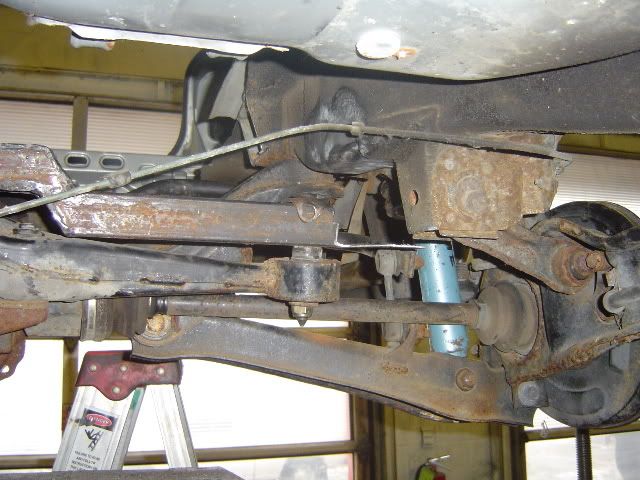

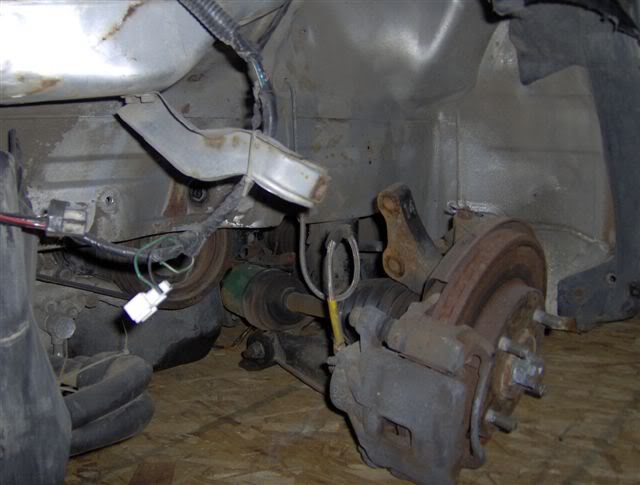

    more of the mirage rear, gas tank is out I will be reusing it be hind the rear end,stock rear suspention is out.

    My DSM:

    Street Build

    GT40   manual
    1998 Mitsubishi Eclipse Spyder N/T

    Street Build

    50trim   manual
    Loading...
  23. tkrPerformance

    tkrPerformance Proven Member

    579
    14
    Joined Dec 2, 2002
    plymouth, Minnesota

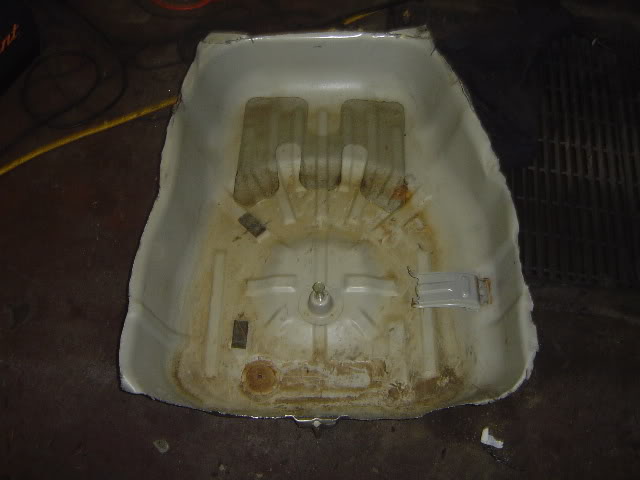

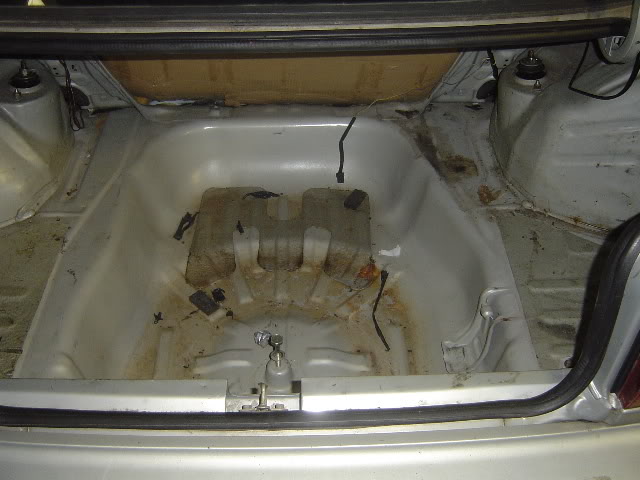

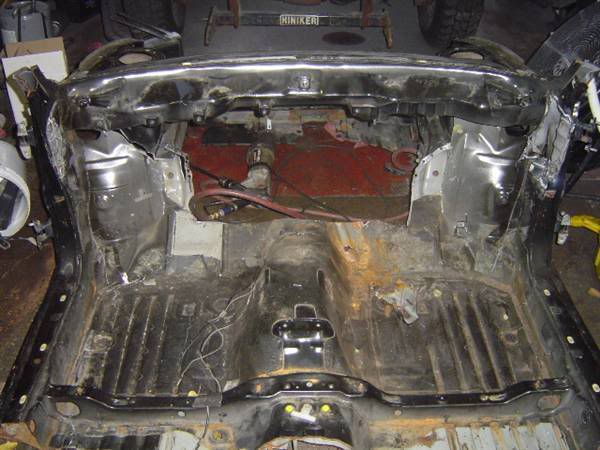

    used the plasma cuter on the trunk floor it was all out in under 10mins

    My DSM:

    Street Build

    GT40   manual
    1998 Mitsubishi Eclipse Spyder N/T

    Street Build

    50trim   manual
    Loading...
  24. tkrPerformance

    tkrPerformance Proven Member

    579
    14
    Joined Dec 2, 2002
    plymouth, Minnesota

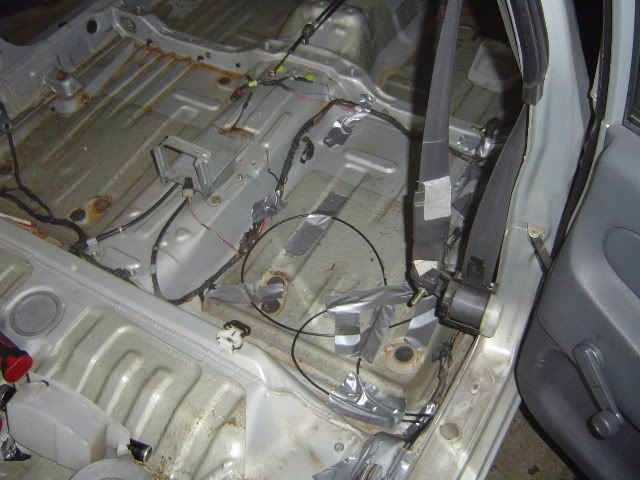

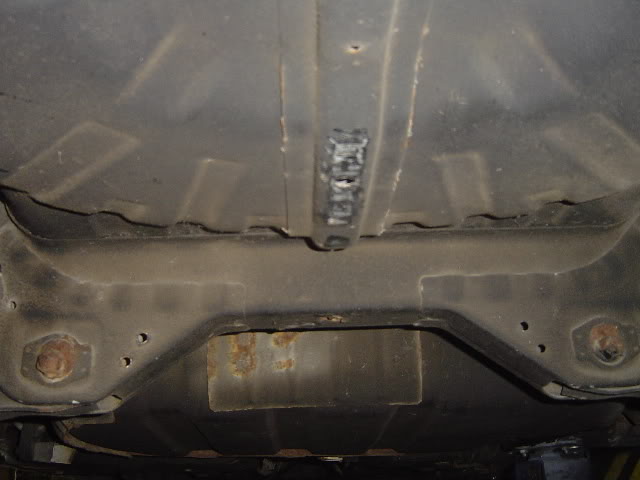

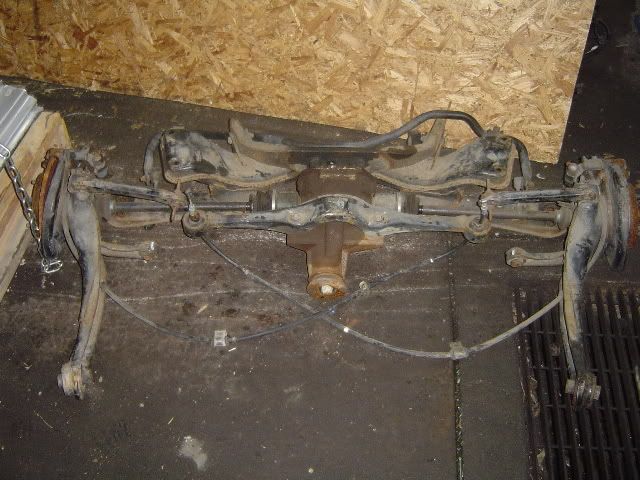

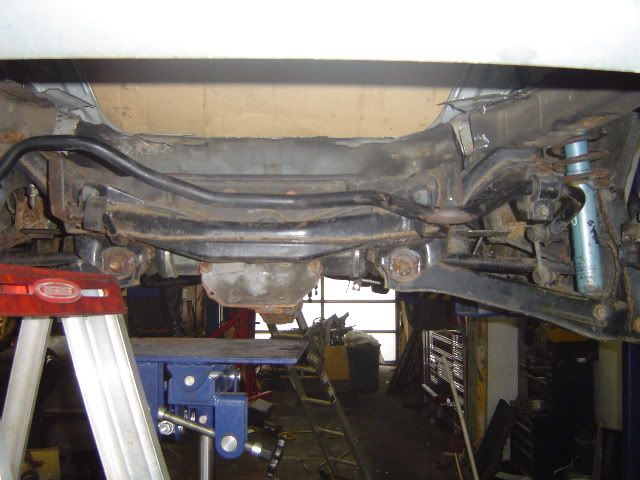

    got the rear end in today the back hole was there for the awd subframe. I had to drill the front hole and make a frame to frame brace to the front of the punken.

    My DSM:

    Street Build

    GT40   manual
    1998 Mitsubishi Eclipse Spyder N/T

    Street Build

    50trim   manual
    Loading...
  25. tkrPerformance

    tkrPerformance Proven Member

    579
    14
    Joined Dec 2, 2002
    plymouth, Minnesota

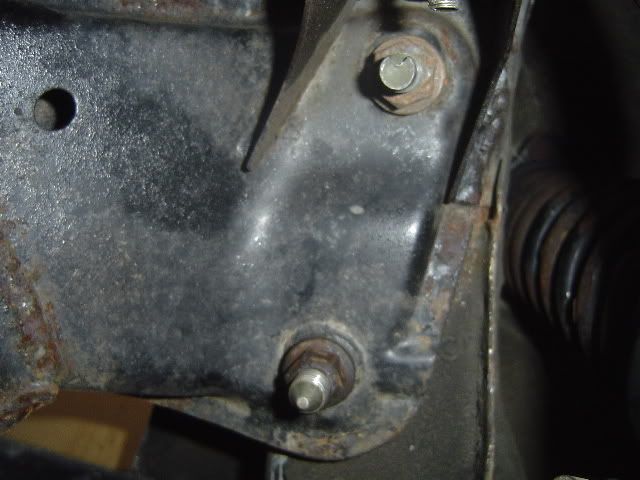

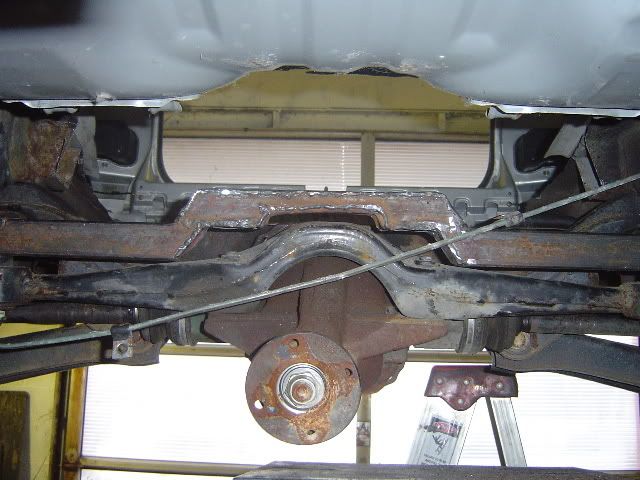

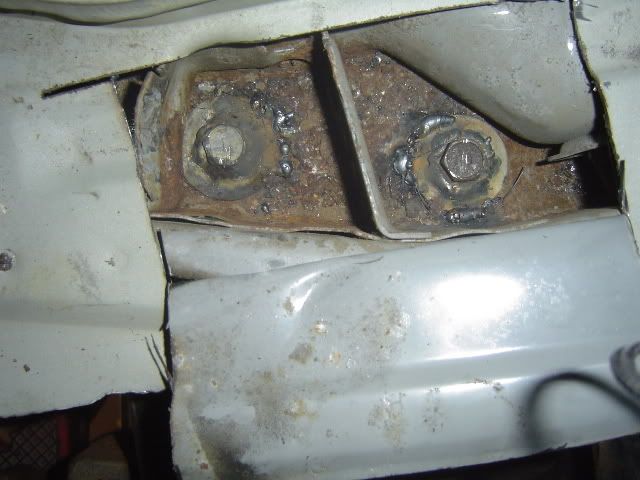

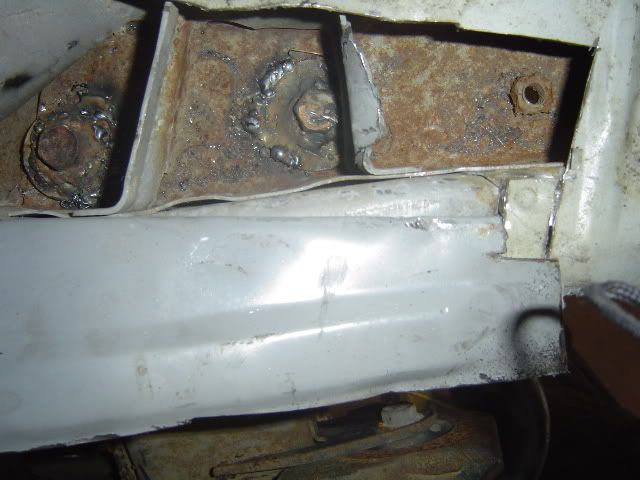

    cut open the frame rail to put the bolts in and tacked them in so they will be solid and I hate trying to weld rust at least it just to hold them there
