2.3L Stroker FP DSM82 E85 Dyno results....

[SpecialtyAuto]

Thanks for the comments guys.

Originally Posted by TurBoneRed

Are those stock painted rims?

Yep, they are.

Few changes made this week....will be on dyno shortly for new #'s. Hopefully the dual valve springs solved the misfire issue at high RPM which we suspected to be due to a valve floating from the stock valve springs.

Hoosier drag radials
Enkei RPF1 16" lightweight racing wheels
ACT 3200 PP with South Bend kevlar/ceramic disc
Fidanza cam gears
Supertech dual valve springs with titanium retainers
Gates timing belt
L19 head studs

[drewbird91]

Originally Posted by DSM_munky_man

Sweet that was the tranny I was looking at too. What options did you opt for? I am wanting the evo 1st geAr and input and the taller 5th gear too.

Originally Posted by SpecialtyAuto

I believe it does have a evo 1st gear, but the previous owner who had it would know more about that. I'd have to ask him or wait for him to chime in

I'm pretty sure it does not have the evo 1st gear and input shaft or the taller 5th. But you would have to check the reciepts.

Originally Posted by SpecialtyAuto

Thanks for the comments guys.



Yep, they are.

Few changes made this week....will be on dyno shortly for new #'s. Hopefully the dual valve springs solved the misfire issue at high RPM which we suspected to be due to a valve floating from the stock valve springs.

Hoosier drag radials
Enkei RPF1 16" lightweight racing wheels
ACT 3200 PP with South Bend kevlar/ceramic disc
Fidanza cam gears
Supertech dual valve springs with titanium retainers
Gates timing belt
L19 head studs

This is just nuts to see you doing this to the car. Makes me happy to see she is getting the attention she deserves. I honestly thought I'd never see the car again. Are you planning on keeping the car or are you going to try and sell it? You putting a cage in there soon? Carbon fiber drive shaft? What else you have planned? When are you going to take that to GLD?

You post anywhere else (other forums) about the car? If you want I can send you a dvd or something of all the old pictures I have of the car, I know you have the book of reciepts already.

[SpecialtyAuto]

Originally Posted by drewbird91

I'm pretty sure it does not have the evo 1st gear and input shaft or the taller 5th. But you would have to check the reciepts.



This is just nuts to see you doing this to the car. Makes me happy to see she is getting the attention she deserves. I honestly thought I'd never see the car again. Are you planning on keeping the car or are you going to try and sell it? You putting a cage in there soon? Carbon fiber drive shaft? What else you have planned? When are you going to take that to GLD?

You post anywhere else (other forums) about the car? If you want I can send you a dvd or something of all the old pictures I have of the car, I know you have the book of reciepts already.

That'll be great to see all the old pictures of the car!!!! As of right now I don't plan on selling it, but I guess everything is for sale for the right price, especially to its original owner! But I'm having a blast with the car so far and plan on taking it to GLD yes, but since we have a local track here, I don't get to make the trip to GLD too often except when our track gets rained out or what not.

I'm sure i'll be FORCED to put a cage in there once I make 1 or 2 passes down the track, haha. So I'm sure I will. Not sure about a carbon fiber driveshaft, perhaps, but not as of right now. I'd like to research it probably a bit to see the potential gains and what not. I post in this forum and WIdsm.org, my name on widsm.org was made 5 years ago and its faster_than_coty. Thanks for the reply, PM me if you want if we can exchange those pics sometime!

Wanted to upload some new pics of the exterior of the car today. Got some new wheels and tires for it that I'll be putting to use at the track tomorrow! (if rain holds off) I have boost set low for the first few times to see how she does on 28lbs first. If all goes well, may attempt 39-40.

[SpecialtyAuto]

UPDATE...time for a rebuild lol...didnt think the block would last too long. Still runs fine, just getting EXCESSIVE blow by through the rings and am going to have to bore it over and run a better piston and rod set up. I guess stay tuned

P.S. DSM's are crazy with maintenance, the supra gets 1000hp of beat runs day after day and I park it in the garage every night and don't do a damn thing. The DSM however, ha....totally different. Oh well.

[kp116]

Car looks sick on those rpf1's!

[drewbird91]

Originally Posted by SpecialtyAuto

UPDATE...time for a rebuild lol...didnt think the block would last too long. Still runs fine, just getting EXCESSIVE blow by through the rings and am going to have to bore it over and run a better piston and rod set up. I guess stay tuned

P.S. DSM's are crazy with maintenance, the supra gets 1000hp of beat runs day after day and I park it in the garage every night and don't do a damn thing. The DSM however, ha....totally different. Oh well.

Did you run it at all at the track?

[SpecialtyAuto]

Originally Posted by drewbird91

Did you run it at all at the track?

nope, decided not to with all the blow by that was going on. Would of just blew something apart. Give me a month to rebuild the engine and throw a stage 4 Shep trans in the car instead of the stage 3.

[96awd]

MKIV Supra... Sex.

Anyway, sucks to hear about the engine. What piston/rod are you going to run now? I have a Manley I-Beam/Wiseco HD ready to go almost. Just want to push the stock block... once the car is actually done.

[SpecialtyAuto]

Originally Posted by 96awd

MKIV Supra... Sex.

Anyway, sucks to hear about the engine. What piston/rod are you going to run now? I have a Manley I-Beam/Wiseco HD ready to go almost. Just want to push the stock block... once the car is actually done.

There are Eagle Rods and Ross pistons in it now. Not sure if the Eagle rods will be good enough for the power I'm making, may have to do a bit more research on that yet. As far as pistons, I'll need to look into an actual HD piston. So far I have my eyes set on the Wiseco HD set.

[96awd]

Originally Posted by SpecialtyAuto

There are Eagle Rods and Ross pistons in it now. Not sure if the Eagle rods will be good enough for the power I'm making, may have to do a bit more research on that yet. As far as pistons, I'll need to look into an actual HD piston. So far I have my eyes set on the Wiseco HD set.

Were you planning on saying stroker or go back to 2.0 platform?

I'm surprised you were able to squeeze this power out of a mitsu-housed turbo just because I've never seen it done. Can't wait to see what it'll do with the new setup at aleast.

[SpecialtyAuto]

Originally Posted by 96awd

Were you planning on saying stroker or go back to 2.0 platform?

I'm surprised you were able to squeeze this power out of a mitsu-housed turbo just because I've never seen it done. Can't wait to see what it'll do with the new setup at aleast.

I'll be staying 2.3L Well, since it has to be bored over, it'll be a little bigger than a 2.3

[kp116]

Originally Posted by SpecialtyAuto

There are Eagle Rods and Ross pistons in it now. Not sure if the Eagle rods will be good enough for the power I'm making, may have to do a bit more research on that yet. As far as pistons, I'll need to look into an actual HD piston. So far I have my eyes set on the Wiseco HD set.

My car is also a eagle ross combo and this is the 4th year on this engine, 3 of which has been 500+whp and the end of last year was probably around 700+. I have heard mixed stories on the eagle rods though but mine seem to be holding together just fine.

[SpecialtyAuto]

Originally Posted by kp116

My car is also a eagle ross combo and this is the 4th year on this engine, 3 of which has been 500+whp and the end of last year was probably around 700+. I have heard mixed stories on the eagle rods though but mine seem to be holding together just fine.

Good to know thanks if everything is good in the motor when the machine shop checks it over, I may just get away with only having to put new rings in it and keeping the same bore on the block(hoping) And I'll slap new bearings in it too.

P.S. Anybody know if anybody has a good used or new stage 4 awd trans for sale? I'm looking to buy

[keltalon]

Originally Posted by SpecialtyAuto

So got my car tuned at Beyond Redline Performance on a AWD dynojet in Green Bay today. So far, in the middle of tuning as I write this, the car makes 563awhp@32lbs of boost on E85. Going to try for 40lbs! Dyno sheets will come shortly, along with before and after comparisons of old set up.

Updated #'s -616awhp/658awtq@39lbs
Was still breaking up at high rpm because of a valve floating from stock valve springs, so supertech dual valve springs are going in, plus adjustable cam gears. Will keep you guys posted on final #'s in a few days.

Mod list is:

Built 2.3L-Eagle Rods, Wiseco Pistons, ACL bearings
5 angle valve job
Comp101200 cams
3g lifters
Supertech Dual Valve springs
Fidanza adjustable cam gears
Gates timing belt
Mitsu MLS
ARP head studs
ARP main studs
Beyond Redline coil on plug ignition set up

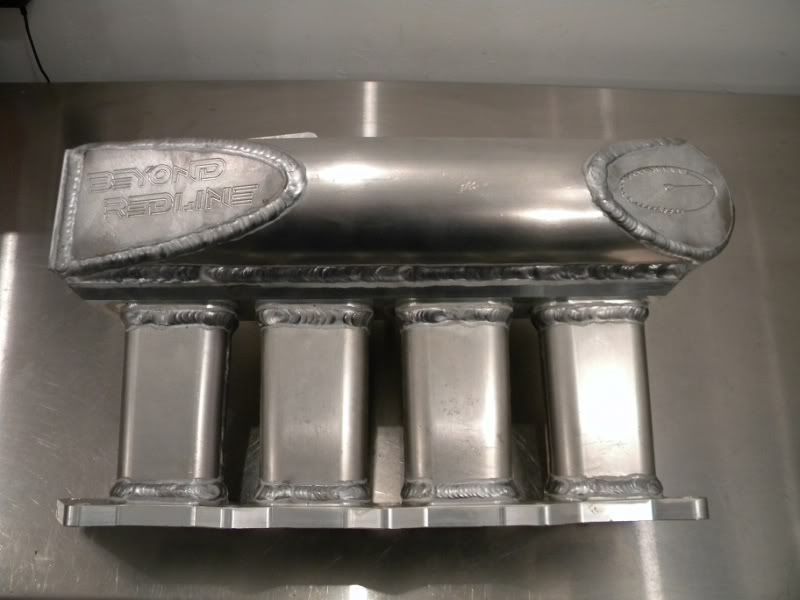

Beyond Redline intake manifold
FP DSM82 dbb turbo with tial mvr 44mm wg and FP recirc 02 housing
FP log style manifold
DSM link v3 with speed density
Precision black fmic with 3" piping
FP 4" intake with K&N filter
Full 3" stainless exhaust
Shep Stage 3 Trans
ACT 3200 Clutch with kevlar/ceramic disc
Fidanza flywheel
Vr4 front brake calipers
Dual walbaro 255 fuel pumps
Bosch 044 inline fuel pump
1600cc injectors
-8 fuel line
Aeromotive FPR








OLD set up versus new

YouTube - ‪1991 Mitsubishi Eclipse FP DSM82 E85 39psi 616awhp/658awtq‬‏

Dude this is one of the nicest setups that I have seen on these boards very nice numbers like the humble appearance of the car as well. Nice job

[turbotalon1g]

Do u have a graph with power vs. RPM, I hate graphs with speed.

Nice work though, don't be scared to rev that stroker she will take it all day.

[SpecialtyAuto]

Originally Posted by turbotalon1g

Do u have a graph with power vs. RPM, I hate graphs with speed.

Nice work though, don't be scared to rev that stroker she will take it all day.

I'll see if I can get one from Beyond Redline next time I stop over there.

She didn't take it too long When I bought the car, the rings were gapped to stock spec so it wasn't really meant to handle the power I'm pushing out of it. Probably will end up changing the pistons also. Should have it back on dyno shortly within this month.

[SpecialtyAuto]

UPDATE:

I'm going with an IPT built automatic(2g housing) with a IPT billet torque converter and trans brake. Also, got a few new parts in.

Innovate wideband in stock oil pressure gauge location


D2 coilovers



Zinc plated drilled/slotted front and rear rotors with hawk pads(front) and EBC pads(rear)

[drewbird91]

Insane, just insane. Keep going. Pm me your address and I will make a dvd up of the old pictures I have of the car. To give you an idea how meticulous I was when I torn it down:

[SpecialtyAuto]

Originally Posted by drewbird91

Insane, just insane. Keep going. Pm me your address and I will make a dvd up of the old pictures I have of the car. To give you an idea how meticulous I was when I torn it down:

sweet man will do! Just got block and crank back from machine shop. Balanced and blueprinted. I'll keep you posted on the progress of us putting together the new engine with the built IPT auto trans I'm choosing to run Hopefully run 9's!

[kp116]

Looks good! Although I don't think anyone has used or set up a trans brake with our cars so I am confused about that. Unless that converter is really loose your probably going to have to use some nitrous to flash the converter.

[SpecialtyAuto]

Originally Posted by kp116

Looks good! Although I don't think anyone has used or set up a trans brake with our cars so I am confused about that. Unless that converter is really loose your probably going to have to use some nitrous to flash the converter.

Yeah, you're right. I'd love to run a trans brake but doesn't look like I'm going to be able to do so with this application.

[nrwtrn6492]

Keep us posted when you go to GLD I will come out. Maybe even run my stroker. I need to see what I can run with it one of these days!

[nickbones91]

great setup. goodluck

[90YellowTSI]

I love the setup, the car looks great! on the auto swap. Do you have a buyer lined up for your stage 3 tranny?

[SpecialtyAuto]

Originally Posted by 90YellowTSI

I love the setup, the car looks great! on the auto swap. Do you have a buyer lined up for your stage 3 tranny?

yeah my buddy grabbed it the second I decided on going auto... Haha....

[DSM_munky_man]

I was going to ask that too lol cause I wanted go see if I could get one at a good price, how come you decided to go auto?

[donniekak]

Originally Posted by DSM_munky_man

I was going to ask that too lol cause I wanted go see if I could get one at a good price, how come you decided to go auto?

Make some power and track your car. I have a garage full of trans parts for you.

[DSM_munky_man]

Haha alright man I'll be counting on you helping me out, I heard these are mazes to get around. I have the tranny and engine out now.

[SpecialtyAuto]

Some progress pics of putting the engine back together.... Its 90% done until we opened our OEM MITSU oil pump box to discover a little mishap to say the least where they FORGOT TO PUT THE DAMN OIL GEAR IN THE OIL PUMP!

Our 250.00+ bare oil pump



Nice little shinny stroker crank

[turbotalon1g]

Nice.
